Accessories

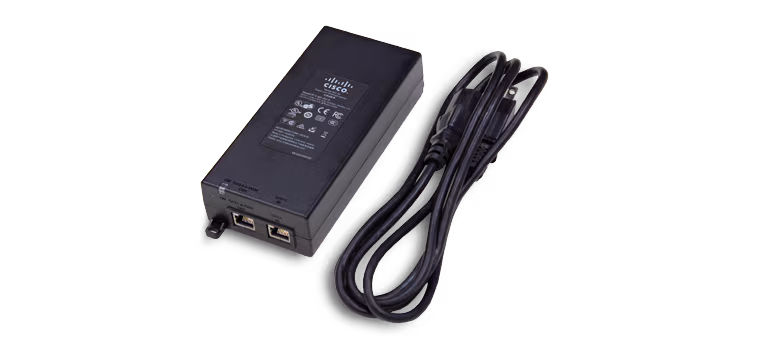

• Allows delivery of both data and power for the Meraki MV smart camera over a single Ethernet cable allowing for simple installation.
• Input voltage: 100 – 240 AC, input current: 0.8 A maximum
• AC input frequency: 50-60 Hz
• Powered device can be up to 100 m away from power injector

MV12N

MV12W

MV12WE

MV22

MV22X

MV32

MV72

MV72X

Wall-Mount Arm MV72

Wall-Mount Bracket for MV22 Series

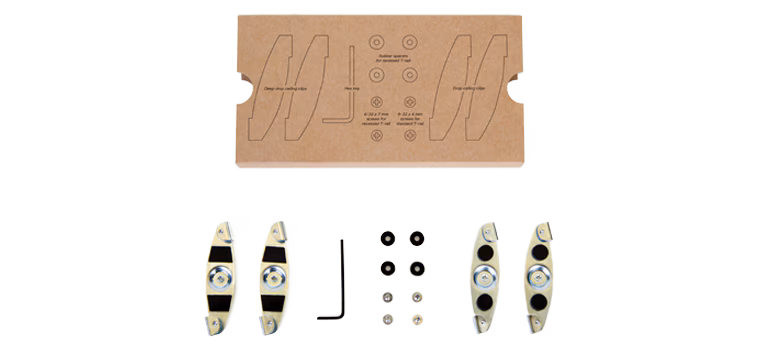

• For mounting MV12, MV22, and MV32 cameras to recessed T-rail and flush T-rail-type celings.
• Includes a pair of deep-drop ceiling clips and a spare T-rail adapter

MV12N

MV12W

MV12WE

MV22

MV22X

MV32

• Compatible with the wall-mount arm; allows for Ethernet to be securely routed to the camera.
• Side, top, bottom, and rear 3/4" conduit entry
• 163.5 mm L × 107.6 mm W × 34.0 mm D
• Weight: 0.329 kg

• Mount can be used in conjunction with the wall-mount arm for MV72 series if an extension is needed for a better field of view.
• Can attach to poles ranging from 40-80 mm and 85-145 mm in diameter
• Dimensions: 163.5 mm L × 107.6 mm W × 34.0 mm D
• Weight: .289 kg

• Enables mounting of MV52 bullet camera to a pole.
• Can attach to poles ranging from 40-80 mm and 85-145 mm in diameter
• Dimensions: 180.93 mm L x 111.92 mm W x 58 mm D
• Weight: .876 kg

• Dimensions: 46.5 mm x 181.193 mm x 110 mm
• Weight: 509.83 grams

• This wall-mount arm allows cameras to face downward while mounted to a wall.
• Dimensions: wall bracket 91.3 mm L x 94.0 mm W x 302.3 mm D
• Weight: 0.697 kg

MV12

MV32

• This L-shaped wall-mount bracket allows the MV22 series cameras to face downward while mounted to a wall.
• Dimensions: 48.0 mm L × 130.0 mm W × 156.2 mm D
• Weight: 0.503 kg

• Compact L-shaped bracket allows the cameras to face downward while mounted to a wall.
• Dimensions: 179.55 mm x 159.954 mm x 104 mm
• Weight: 547.78 grams

• Suspend your MV84X from ceilings for versatile overhead surveillance.
• Requires:MA-MNT-MV-59 Junction Box

• The telescoping pendant mount adjusts to allow ceiling-mounted cameras to be lowered anywhere from 1,293-2,300 mm.
• Includes pendant cap
• Dimensions: 1,293-2,300 mm L × 144 mm D
• Weight: 1.75 kg

• Allows third-generation MV smart cameras to be mounted to a wall while facing downward.
• Dimensions: 339.55 mm x 159.954 mm x 104 mm
• Weight: 908.25 grams

• Securely attach your MV84X camera directly to walls for optimized viewing angles.
• Requires:
  • MA-MNT-MV-49 Wall Mount Bracket
  • MA-MNT-MV-59 Junction Box

• Securely install your MV84X camera with our Junction Box, concealing cables for a clean, protected, and versatile setup

• For mounting third-generation MV smart cameras to recessed T-rail and flush T-rail-type ceilings.
• Dimensions: 34.242 mm x 72.142 mm x 74 mm
• Weight: 40.39 grams

MV63

MV93

• Safely install MV84X cameras on poles for strategic outdoor surveillance.
• Requires:
  • MA-MNT-MV-49 Wall Mount Bracket
  • MA-MNT-MV-59 Junction Box
  • MA-MNT-MV-69 Pole Mount Adapter

• The telescoping pendant mount adjusts to allow ceiling-mounted third-generation cameras to be lowered anywhere from 1,285-2,410 mm.
• Includes pendant cap
• Dimensions: 1,375 mm (L) x 150 mm (W) x 141 mm (D)
• Weight: 1.97 kg

• Requires:
  • MA-MNT-MV-49 Wall Mount Bracket
  • MA-MNT-MV-59 Junction Box
  • MA-MNT-MV-79 Corner Mount Adapter

• Mounting accessory for third-generation MV smart cameras.
• Dimensions: 218 mm × 150 mm x 135 mm
• Weight: 0.781 g

• Reliably position MV84X cameras along parapets for clear, elevated viewpoints.
• Requires:
  • MA-MNT-MV-39 Mounting Adapter for Pendant/Parapet
  • MA-MNT-MV-89 Parapet Mounting Bracket

• Allows MV72 series camers to be mounted to a wall while facing downard.
• Includes pendant cap
• Wall bracket 160.0 mm L × 104.0 mm W × 286.0 mm D
• Weight: 0.67 kg

• Provides power to MV smart cameras using an existing low-voltage (12/24V) power supply when connecting over wireless.
• Dimensions: 82 mm D x 35.5 mm H

MV12N

MV12W

WV12WE

MV22X

MV32

MV72

MV72X

• Ordering information: MA-PWR-USB-XX (XX= U.S., EU, UK, AU or JP)
• Cable length: 3 m
• AC to USB-C power adapter

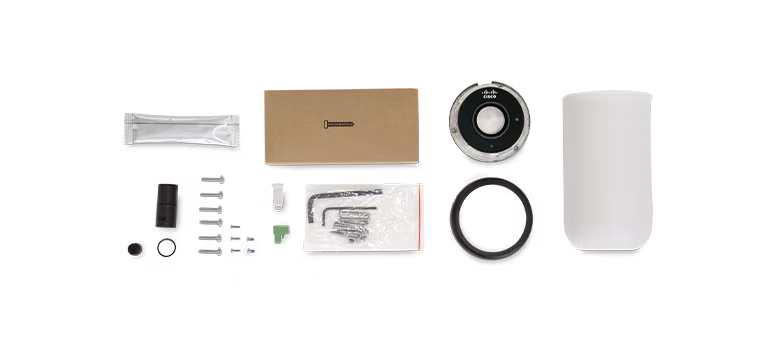

• This replacement kit for the MV52 bullet camera includes a protective shield, lens cover, desiccant pack, and mounting hardware.
• Dimensions: 174 mm (L) x 67.8 mm (W) x 98.6 mm (H)
• Weight: .33 kg
