MA-WMNTBR-PWR-ADP Installation Guide

This article provides an installation guide for the MA-WMNTBR-PWR-ADP, a wall mount bracket designed for 150W and 300W Meraki external power adapters, detailing package contents and step-by-step instructions for secure mounting and adapter installation.

Overview

The MA-WMNTBR-PWR-ADP is a wall mount bracket compatible with 150W and 300W Meraki external power adapters. The accessory is meant to be used in installations where the wall mount is used during switch installation.

Package Contents

MA-WMNTBR-PWR-ADP includes the following equipment in its packaging:

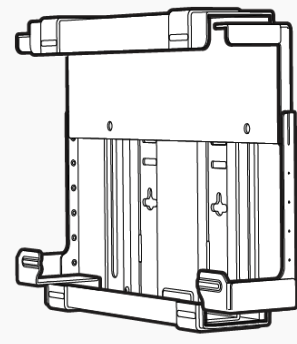

MA-WMNTBR-PWR-ADP

Bracket dimensions when closed 229.2x105.7x63.2
Bracket dimensions when open 229.2x157x63.2

Installation Instructions

Note: Each PSU bracket comes with a graphical instruction pamphlet within the box. This pamphlet contains detailed step by step guides and images to assist in the physical install of the bracket.



Place the bracket assembly on the wall where you want the external power supply to be mounted and mark the fixing hole positions with a pencil.

MSMX Bracket Step 1.png



Secure the bracket assembly onto the wall by placing it over the pre drilled screws from the previous step.

MSMX Bracket Step 2.png



Place either the 150W or 300W Meraki external power adapter into the bracket assembly.

MSMX Bracket Step 3.png



Push down on the top of the bracket assembly securing the power adapter into place.

MSMX Bracket Step 4.png
