MG21 Internal Antenna Datasheet

The internal antenna on the MG21 are enclosed inside for a sleek look while maintaining excellent performance. When in use the internal antenna has a bias towards the front face. The dipole shape of coverage the antennas generally excel at allowing users to place the MG in areas where a directional patch antenna cannot be mounted. A benefit of the internal antenna is the smaller footprint where it will be mounted.






Specifications



Category Specifications
Electrical

Antenna Type

Planar Inverted F Antenna (PIFA)

Main Antenna

Frequency Range

  • 829 (698 - 960) MHz

  • 1940 (1710 - 2170) MHz

  • 2495 (2300 - 2690) MHz

Peak Gain (per range)

  • 829 @ 2.9dBi

  • 1940 @ 4.8dBi

  • 2495 @ 3.8dBi

Polarization

Linear, vertical

Auxiliary Antenna

Frequency Range

  • 829 (698 - 960) MHz

  • 1940 (1710 - 2170) MHz

  • 2495 (2300 - 2690) MHz

Peak Gain (per range)

  • 829 @ 2.7dBi

  • 1940 @ 3.8dBi

  • 2495 @ 3.3dBi

Polarization

Linear, vertical

Physical and Environmental

MG21 Dimensions

160.45 x 160.45 x 34.45mm

MG21 Operating Temperature

-20°C to 50°C (-4°F to 122°F)

Material of Radiator

Sheet metal

Regulatory Certified for use in the MG21

Radiation Patterns

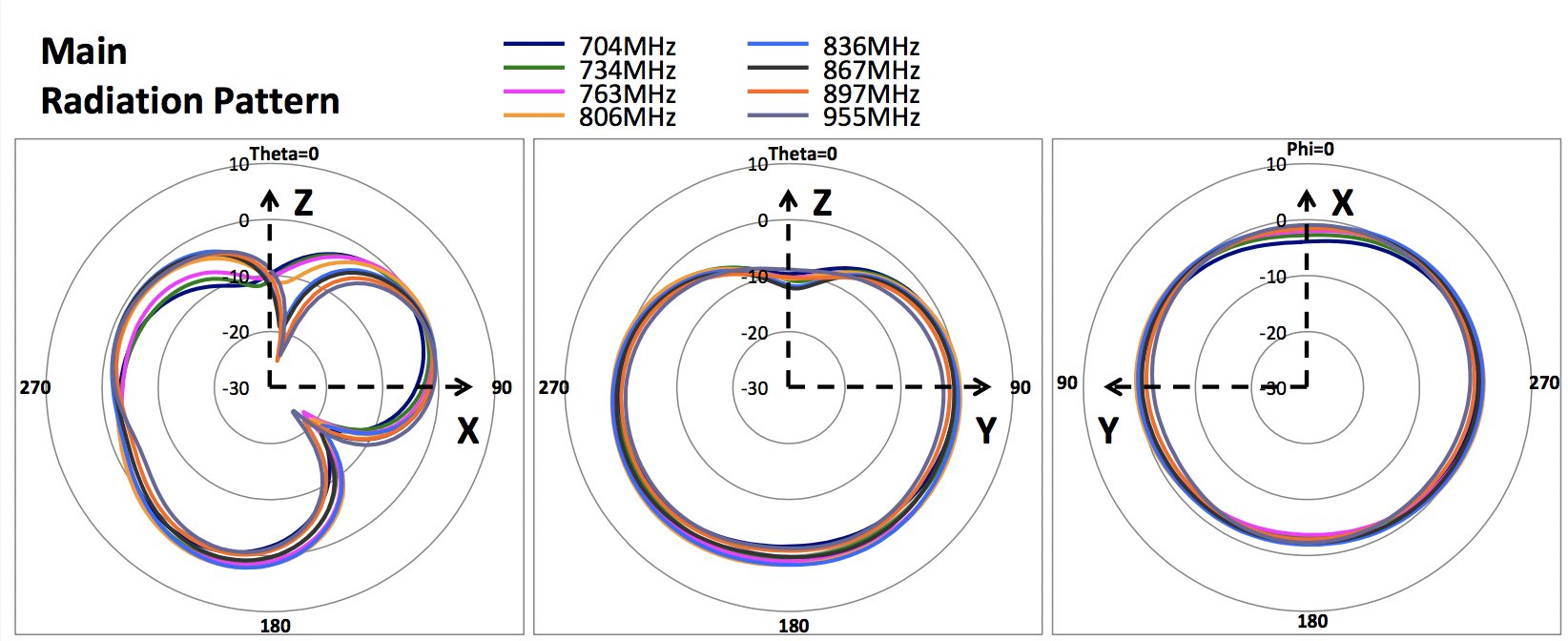

Main Antenna

829 (698 - 960) MHz

829-MainInt.png   clipboard_e59ee1e38479c5f1d3693326d5fc4bc51.png

1940 (1710 - 2170) MHz

1940-MainInt.png  clipboard_e59ee1e38479c5f1d3693326d5fc4bc51.png

2495 (2300 - 2690) MHz

2495-MainInt.png  clipboard_e59ee1e38479c5f1d3693326d5fc4bc51.png



Auxiliary Antenna

829 (698 - 960) MHz

829-AuxInt.png  clipboard_e59ee1e38479c5f1d3693326d5fc4bc51.png

1940 (1710 - 2170) MHz

1940-AuxInt.png  clipboard_e59ee1e38479c5f1d3693326d5fc4bc51.png

2495 (2300 - 2690) MHz

2495-AuxInt.png  clipboard_e59ee1e38479c5f1d3693326d5fc4bc51.png
