MG21E Cellular Dipole Antenna Datasheet

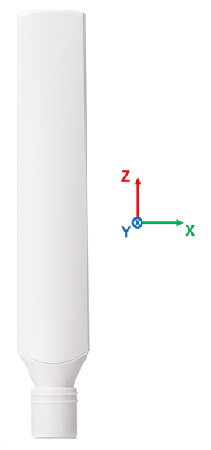

The dipole antennas (MA-ANT-C1-A) are included with the MG21E. When in use the dipoles have a spherical coverage in comparison to a patch antenna. The dipole antennas will excel at allowing users to place the MG in areas where a directional patch antenna cannot be mounted. The dipoles are directly attached to the MG21E and require no additional mounting hardware.

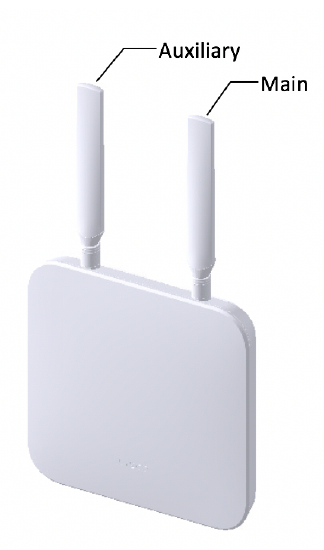

MG model

Specifications

Category Specifications
Electrical

Antenna Type

Dipole

Main Antenna

Frequency Range

  • 829 (698 - 960) MHz

  • 1940 (1710 - 2170) MHz

  • 2495 (2300 - 2690) MHz

  • 5500 (5150 - 5850) MHz

Peak Gain (per range)

  • 829 @ 2.6dBi

  • 1940 @ 4.2dBi

  • 2495 @ 3.0dBi

  • 5500 @ 3.5dBi

Polarization

Linear, vertical

Auxiliary Antenna

Frequency Range

  • 829 (698 - 960) MHz

  • 1940 (1710 - 2170) MHz

  • 2495 (2300 - 2690) MHz

  • 5500 (5150 - 5850) MHz

Peak Gain (per range)

  • 829 @ 3.5dBi

  • 1940 @ 2.7dBi

  • 2495 @ 4.9dBi

  • 5500 @ 2.9dBi

Polarization

Linear, vertical

Physical and Environmental

Dimensions

129mm x 19.5mm x 12.3mm

Material of Radiator

PCB

Material of Plastic

PC

Operational Temperature

-40°C  to +65°C (-40°F to 149°F)

Storage Temperature

-40°C  to +80°C (-40°F to 176°F)

Connector

RP-SMA (female)

Warranty 1 year hardware warranty included
Ordering Information MA-ANT-C1-A
Regulatory

Certified for use with the MG21E

MA-ANT-C1-A

Radiation Patterns

Main Antenna

829 (698 - 960) MHz

829 Main Antenna   dipole_antenna2.png

1940 (1710 - 2170) MHz

1940 Main Radiation  dipole_antenna2.png

2495 (2300 - 2690) MHz

2495 Main Radiation  dipole_antenna2.png

5500 (5150 - 5850) MHz

5500 Main radiation  dipole_antenna2.png

Auxiliary Antenna

829 (698 - 960) MHz

829 Auxiliary Radiation  dipole_antenna2.png

1940 (1710 - 2170) MHz

1940 Radiation   dipole_antenna2.png

2495 (2300 - 2690) MHz

2495 auxiliary radiation  dipole_antenna2.png

5500 (5150 - 5850) MHz

5500 Auxiliary Radiation   dipole_antenna2.png
