Hotspot 2.0

Hotspot 2.0, also known as Passpoint, is a service provider feature that assists with carrier offloading.

Meraki APs can be configured to send IEEE 802.11u-based network information, where a phone client device gathers necessary information by using Access Network Query Protocol (ANQP) messages. The 802.11u-enabled phone clients discover and select a target AP based on information gathered during the pre-association stage from an 802.11u-enabled AP. A phone client has pre-provisioned network information such as home OI Information, realm name and domain name, presented as a configuration file inside the phone client device. In addition, the phone client device may obtain home network information using the IMSI data derived from the inserted SIM/USIM card.



Hotspot 2.0 is part of the 802.11u IEEE standard. Meraki Access Points support version 1 of the WFA Hotspot 2.0 technical specification.



The 802.11u AP provides information listings with the HotSpot owner details, roaming partners, realm list, 3GPP cellular information, and domain name. The realm list also provides listings of the realm name and its associated EAP authentication type mappings. This information is essential for the phone client device, so the correct EAP credential exchange may take place.



There are many devices that support Hotspot 2.0, such as the Samsung Galaxy-S4, iPhone, and Intel Centrino 6230 WiFi chipset, and various types of phone client devices. A Hotspot 2.0 configuration example for an iPhone with a basic information set can be found here.

Availability

Hotspot 2.0 is generally used by service providers and is not normally used in most enterprise deployments. In order to keep the dashboard simple to use, this feature is hidden by default.

This feature is currently in a service provider-only closed beta.

Supported 802.11u Parameters

The following 802.11u Parameters are supported by Meraki Access Points:

  • Venue Name information
  • Network Authentication Type information
  • Roaming Consortium list
  • IP Address Type Availability Information
  • NAI Realm list
  • 3GPP Cellular Network information
  • Domain Name list
  • HS Query list
  • HS Capability list
  • Operator Friendly Name
  • WAN Metrics
  • Connection Capability
  • NAI Home Realm Query

Configuration

The following Hotspot 2.0 802.11u elements are configurable via the Dashboard UI on a per-SSID basis:

  • Operator Friendly Name
  • Venue Name information
  • Venue Type
  • Network type
  • Domain Name list
  • Roaming Consortium list
  • MCC/MNCs



The following Hotspot 2.0 802.11u elements are configurable via Meraki Support.

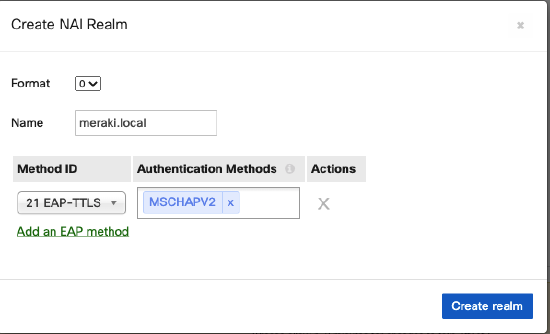

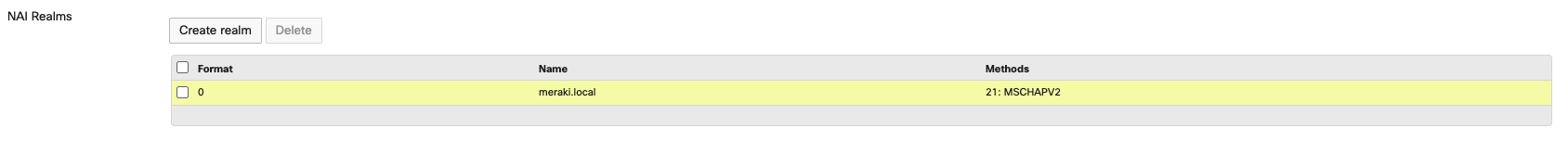

  • NAI Realm list
