Campus Gateway Datasheet
Overview
The Cisco Campus Gateway is the intelligent, easy-to-deploy wireless cloud solution for large campus scale, seamless roaming, and flexible functionality for the modern enterprise.
Features
|
Metric |
Value |
|---|---|
|
Maximum number of access points |
5000 |
|
Maximum number of clients |
50,000 |
|
Maximum throughput |
Up to 100 Gbps (200 Gbps for a cluster) |
|
Redundant power supply |
AC or DC power supply |
|
Maximum power consumption with modules |
500W |
Supported Access Point Models
Cloud-managed Access Points are required to run MR31.2.X code or newer.
| Wi-Fi Generation | Models |
|---|---|
| Wi-Fi 7 1 |
|
| Wi-Fi 6E |
|
| Wi-Fi 6 |
|
1 Wi-Fi 7 APs will only be supported in 802.11be operation starting with MR 32.1.X and later.
2 CW9172H / MR36H wired ports will not be supported for tunneling at FCS.
Details
Physical Dimensions
|
Dimension |
Value |
|---|---|
|
Width |
17.3 inches (43.94 cm) |
|
Depth |
18.4 inches (46.74 cm) |
|
Height |
1.73 inches (4.39 cm) |
|
Weight |
20.5 lb (9.3 kg) |

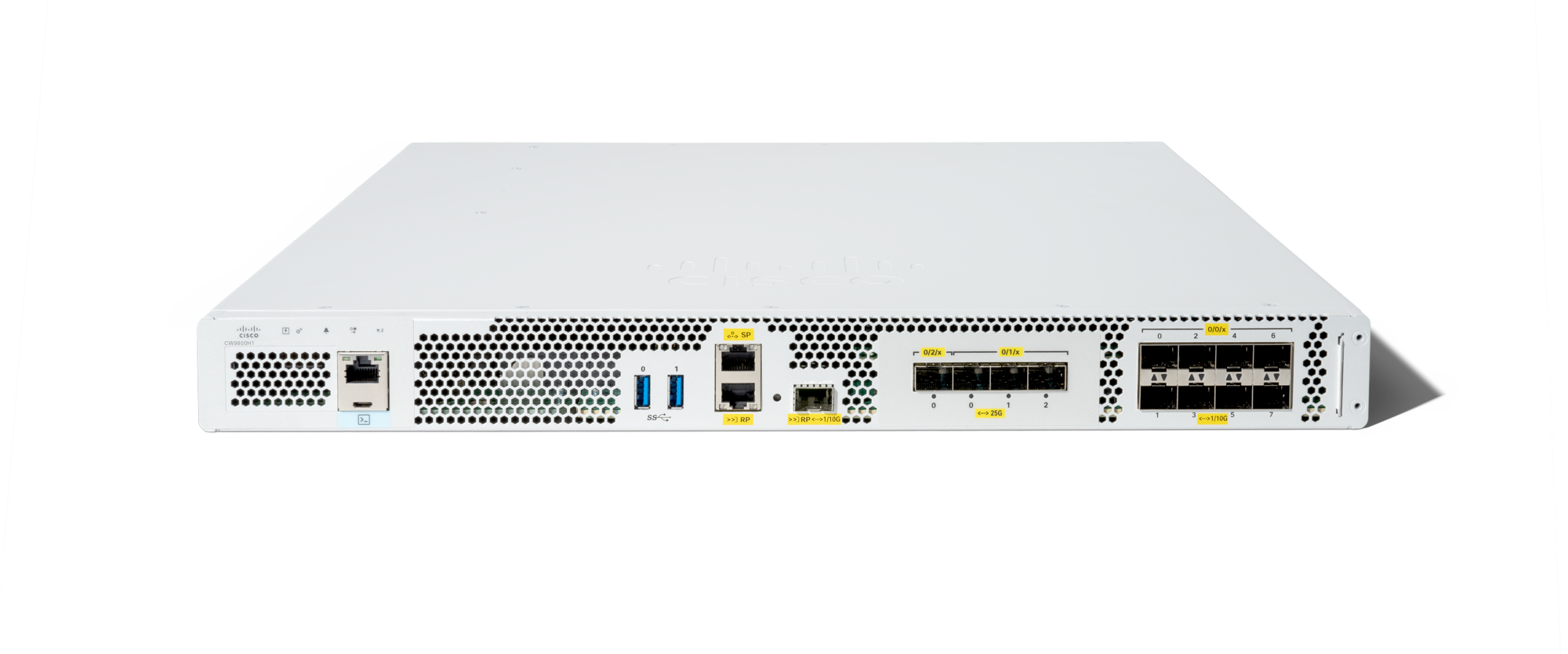

Front View
|
1 |
Power LED |
|---|---|
|
2 |
System LED |
|
3 |
Alarm LED |
|
4 |
Dashboard Status LED |
|
5 |
M.2 SSD |
|
6 |
RJ-45 compatible console port (Not available for use on Campus Gateway) |
|
7 |
USB Port 0 (Not available for use on Campus Gateway) |
|
8 |
USB Port 1 (Not available for use on Campus Gateway) |
|
9 |
SP— RJ-45 1 GE management port |
|
10 |
RP— 1/10-GE SFP+ port |
|
11 |
TwentyFiveGigE0/2/0 - 25-GE SFP28 EPA2 Port 0 |
|
12 |
TwentyFiveGigE0/1/0 - 25-GE SFP28 EPA1 Port 0 |
|
13 |
TwentyFiveGigE0/1/1 - 25-GE SFP28 EPA1 Port 1 |
|
14 |
TwentyFiveGigE0/1/2 - 25-GE SFP28 EPA1 Port 2 |
|
15 |
Te0/0/0—1-GE SFP/ 10-GE SFP+ Port 0 |
|
16 |
Te0/0/2—1-GE SFP/ 10-GE SFP+ Port 2 |
|
17 |
Te0/0/4—1-GE SFP/ 10-GE SFP+ Port 4 |
|
18 |
Te0/0/6—1-GE SFP/ 10-GE SFP+ Port 6 |
|
19 |
Carrier Label Tray |
|
20 |
Te0/0/7—1-GE SFP/ 10-GE SFP+ Port 7 |
|
21 |
Te0/0/5—1-GE SFP/ 10-GE SFP+ Port 5 |
|
22 |
Te0/0/3—1-GE SFP/ 10-GE SFP+ Port 3 |
|
23 |
Te0/0/1—1-GE SFP/ 10-GE SFP+ Port 1 |
|
24 |
RP— RJ-45 1 GE redundancy port |
|
25 |
CON— 5-pin Micro-B USB console port (Not available for use on Campus Gateway) |
LED Indicators
|
System Status |
Power LED |
Dashboard Status LED |
System LED |
Alarm LED |
|
|---|---|---|---|---|---|
|
1 |
CG is powered off or not receiving power. |
Off |
Off |
Off |
Off |
|
2 |
CG if powered on and is loading the bootstrap firmware. |
Solid Green |
No change in LED state |
No change in LED state |
Solid Amber: ROMMON boot |
|
3 |
ROMMON Boot complete |
No change in LED state |
No change in LED state |
No change in LED state |
Solid Green |
|
4 |
CG is loading the operating system. |
No change in LED state |
No change in LED state |
Slow Blinking Green |
Solid Amber: SYSTEM bootup |
|
5 |
Boot up fails; device in ROMMON |
No change in LED state |
No change in LED state |
Solid Amber - Crash Slow Blinking Amber - Secure boot failure |
Slow Blinking Amber - Temperature Error & Secure boot failure |
|
6 |
System error: CG failed to load operating system or bootstrap firmware. |
No change in LED state |
No change in LED state |
Solid Amber - Crash Slow Blinking Amber - Secure boot failure |
Slow Blinking Amber - Temperature Error & Secure boot failure |
|
7 |
Setting up local management and cloud-connectivity requirements. Note: If the CG has not been assigned a static management IP previously, it will try to obtain an IP via DHCP in this stage. |
No change in LED state |
Slow blinking Amber |
No change in LED state |
No change in LED state |
|
8 |
System error: CG failed to complete local provisioning. |
No change in LED state |
Solid Amber |
No change in LED state |
No change in LED state |
|
9 |
CG is completely provisioned but unable to connect to Meraki cloud |
No change in LED state |
Solid Amber |
No change in LED state |
No change in LED state |
|
10 |
Firmware download / upgrade in progress |
No change in LED state |
Blinking Green: System upgrade in progress |
No change in LED state |
No change in LED state |
|
12 |
CG is fully operational and connected to the Meraki cloud |
Solid Green |
Solid Green |
No change in LED state |
No change in LED state |
|
13 |
Operating System boot complete |
No change in LED state |
No change in LED state |
Solid Green |
No change in LED state |
|
14 |
Factory Reset via the Local Status Page |
No change in LED state |
No change in LED state |
Slow Blinking Red |
No change in LED state |
|
15 |
Blink LED Feature |
No change in LED state |
Fast Blinking Red |
Fast Blinking Red |
Fast Blinking Red |
Built-In SFP and SFP+ Ports
| 1 |
Bay 1 - 3 X 25-GE SFP28 ports.
Bay 2—1 X25-GE SFP port.
|
|---|---|
| 2 | Bay 0—8 X 1-GE/10-GE SFP+ ports.
|
Supported SFP Modules
Data Port SFP Modules
| Type |
Modules supported |
|---|---|
|
Small Form-Factor Pluggable (SFP) |
GLC-LH-SMD |
|
GLC-SX-MMD |
|
|
GLC-TE |
|
|
GLC-ZX-SMD |
|
|
GLC-BX-U |
|
|
GLC-BX-D |
|
|
GLC-EX-SMD |
|
|
Enhanced SFP (SFP+ / SFP28) |
SFP-10G-SR |
|
SFP-10G-SR-S |
|
|
SFP-10G-LR |
|
|
SFP-10G-LR-X |
|
|
SFP-10G-ER |
|
|
SFP-H10GB-ACU10M |
|
|
SFP-H10GB-CU5M |
|
|
SFP-10G-AOC10M |
|
|
Finisar-LR (FTLX1471D3BCL) |
|
|
Finisar-SR (FTLX8574D3BC) |
|
|
SFP-H10GB-CU1M |
|
|
SFP-H10GB-CU1-5M |
|
|
SFP-H10GB-CU2M |
|
|
SFP-H10GB-CU2-5M |
|
|
SFP-H10GB-CU3M |
|
|
SFP-H10GB-ACU7M |
|
|
SFP-10G-AOC1M |
|
|
SFP-10G-AOC2M |
|
|
SFP-10G-AOC3M |
|
|
SFP-10G-AOC5M |
|
|
SFP-10G-AOC7M |
|
|
SFP-10/25G-CSR-S (Only supported in the 25-GE ports) |
|
|
SFP-10/25G-LR-S (Only supported in the 25-GE ports) |
|
|
SFP-25G-SR-S |
|
|
SFP-25G-AOC2M |
|
|
SFP-25G-AOC10M |
|
|
SFP-25G-AOC5M |
|
|
SFP-H25G-CU1M |
|
|
SFP-H25G-CU5M |
|
|
SFP-25G-AOC3M |
|
|
SFP-25G-AOC7M |
|
|
SFP-25G-AOC1M |
Supported Redundancy Port SFP Modules
| Type |
Modules supported |
|---|---|
|
SFP/SFP+ Modules |
GLC-LH-SMD |
|
GLC-SX-MMD |
|
|
SFP-10G-SR |
|
|
SFP-10G-SR-S |
|
|
SFP-10G-LR |
|
|
SFP-10G-LR-S |
Rear panel
- The chassis has a front-to-rear airflow.
- Four internal fans pull cool air into the front of the chassis and blow it over the internal parts to maintain the system at a safe temperature.
- The fans are located at the rear of the chassis.
Power
Campus Gateway ships with redundant power supply units, either AC or DC, depending on the customer’s preference.
The Power Entry Module (PEM) supplies backup power to the system, and the Campus Gateway can operate continuously with just one PEM installed. You can replace a PEM without turning off the system. All PEM connections and replacements are done from the back of the chassis. The main power switch is also located near the PEMs at the rear of the chassis.
|
Power supply condition |
Green (OK) LED status |
Amber (fail) LED status |
|---|---|---|
|
No AC power to all power supplies |
Off |
Off |
|
Power supply failure (includes over voltage, over current, over temperature, and fan failure) |
Off |
Red for power supply failure Amber for fan failure |
|
Power supply warning events in which the power supply continues to operate (high temperature, high power, and slow fan) |
Off |
1 Hz blinking |
Note: Redundancy is supported with the same power supply types.
Ordering Information
|
Type |
Product ID |
Description |
|---|---|---|
| Cisco Campus Gateway
|
CW9800H1-MCG |
Cisco Wireless Meraki Campus Gateway |
