CW9164I-MR SES ESL Specifications
Overview

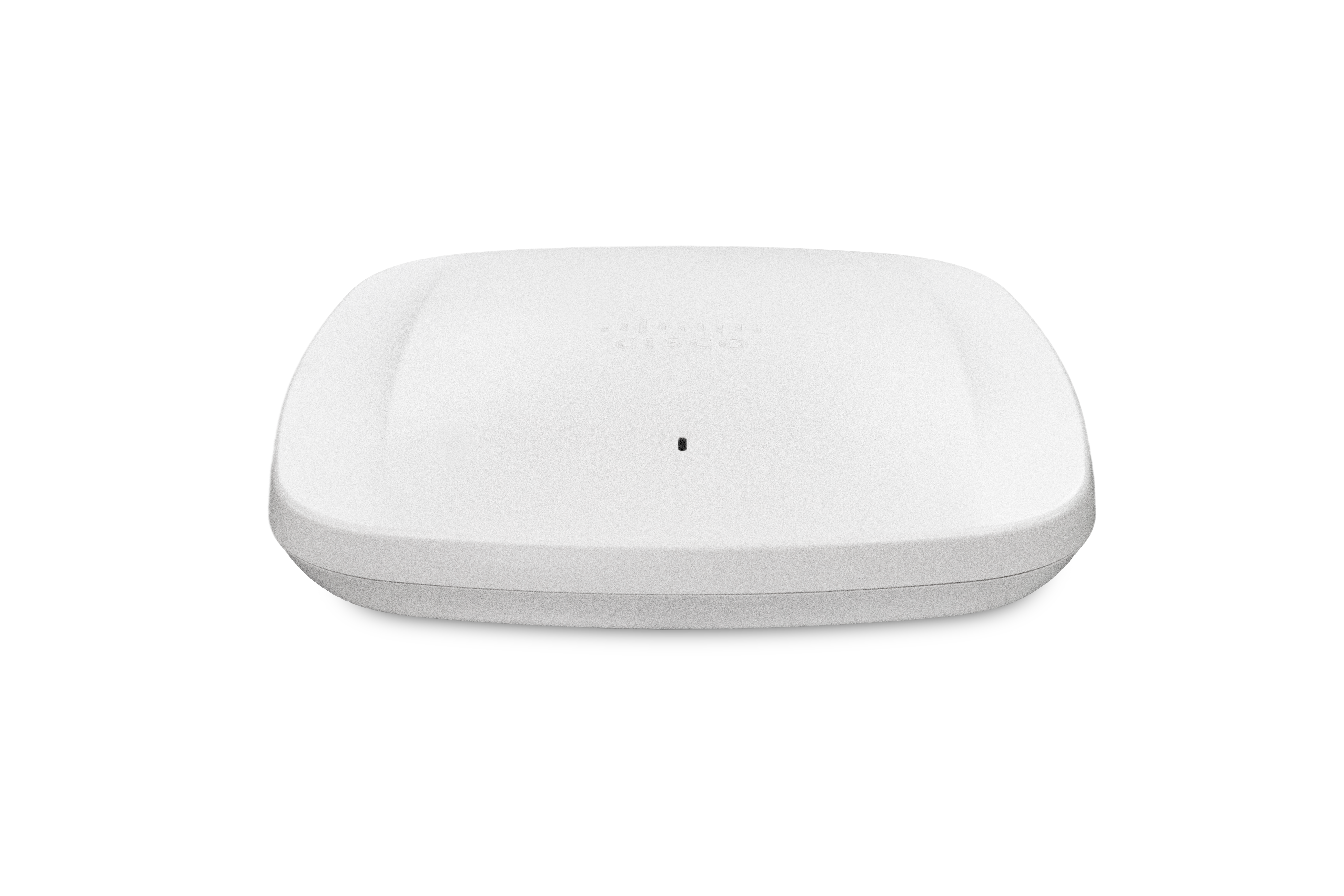

CW9164I-MR is a tri-band 802.11ax-compliant access point with separate radios dedicated to security, RF management, and Bluetooth® and a USB port for hardware peripherals, including third-party solutions.
Please refer to the CW9164 datasheet for detailed wireless-specific information.
CW9164I-MR supports SES-imagotag Electronic Shelf Labels (ESL) native integration. Please refer to our documentation for more information.
Note: All specified values are subject to change by SES-imagotag
SES ESL Specifications
|
AP Model |
CW9164I-MR |
| Integration Variant | VUSION Gate N |
| Product code (Vusion Cloud SKU) | CE: 11663 | FCC/IC: 11663 |
| V:IoT Radio | 2.4 GHz |
| V:IoT Radio Protocol | Proprietary |
| V:IoT Radio Antenna | Integrated |
| V:IoT Radio Channel Auto-Selection | Yes |
| V:IoT Radio Encryption | 128-bit Advanced Encryption Standard (AES) with secure key exchange |
| V:IoT Transmission Range | Up to 25 meters in open-field deployments (about 1950 m² or 21 000 sq ft area) |
| Coexistence Feature Support (V:IoT radio + Wi-Fi) | Smart Coexistence |
| Number of Labels Supported | Up to 10,000 labels per access point |
| Supported SES solution | VUSION Cloud |
| Connection Mode | Token-Based |
VUSION Cloud Specifications
|
Cloud Service Authentication |
X.509 certificates |
| Access Point Authentication | Claim ID and JWT token authentication |
| Connection | Fully encrypted with TLS |
| Compliance | ISO 27001, PCI-DSS 3.2, CIS 1.1.0, SOC TSP, GDPR |
