MS Mid-Mount Mounting Brackets

Overview

Meraki sells Mid-Mount mounting brackets which enable certain switch models to be mounted father forward in the rack, which may be helpful for shallow switch racks, or racks that mount switches on both sides with their rear sides facing each other.

Non-Compatible Switch Models

All rack-mountable switch models (not 8-port models) more recent than the MS100 series are compatible with mid-mount mounting brackets.

Mounting



Brackets

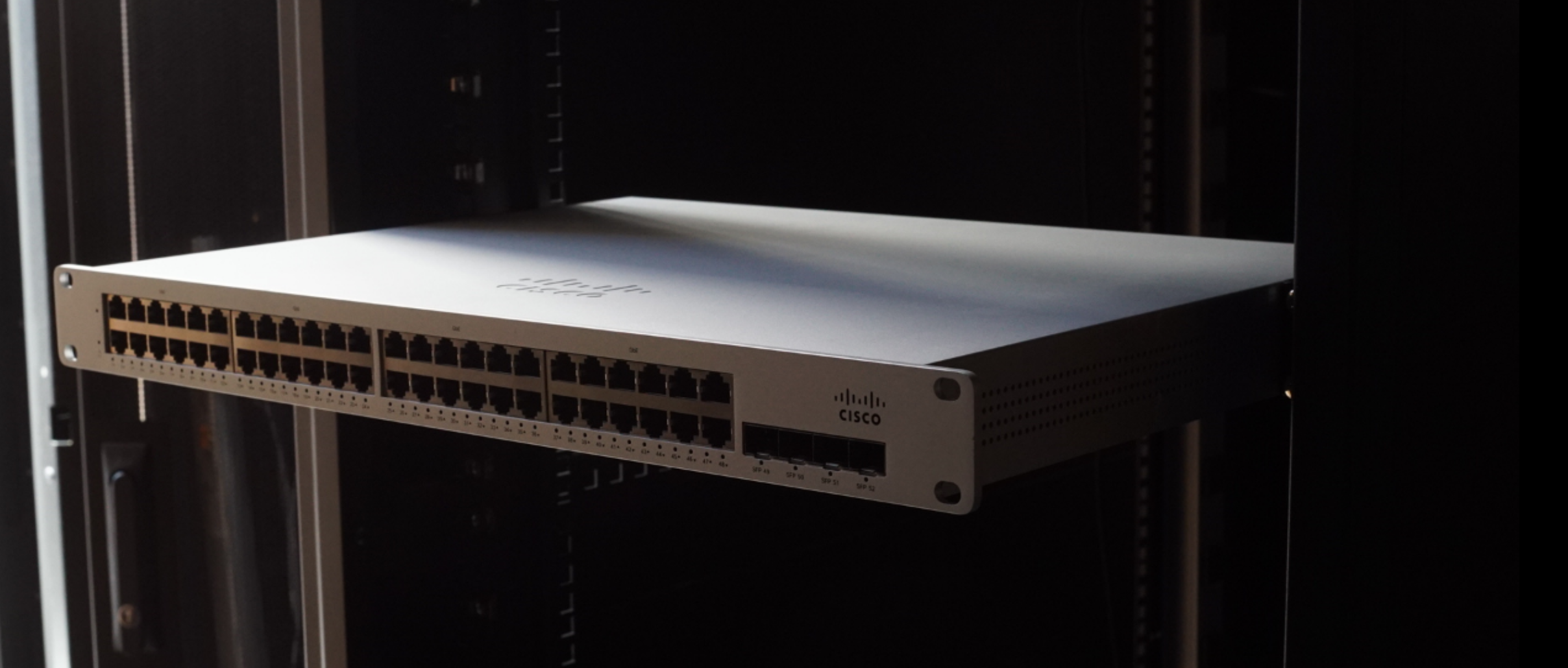

Front View


Rear View
