MS Mid-Mount Mounting Brackets

Overview

Meraki sells Mid-Mount mounting brackets which enable certain switch models to be mounted father forward in the rack, which may be helpful for shallow switch racks, or racks that mount switches on both sides with their rear sides facing each other.

Compatible Switch Models

MS120/125 (except the 8-port models), MS130 (except the 8-port and 12-port models), and MS210/225/250 models are compatible with mid-mount mounting brackets MA-MNT-MID-1.

Mounting


Installing switch using mid-mount mounting brackets

Brackets

MS switch brackets front/mid

Front View

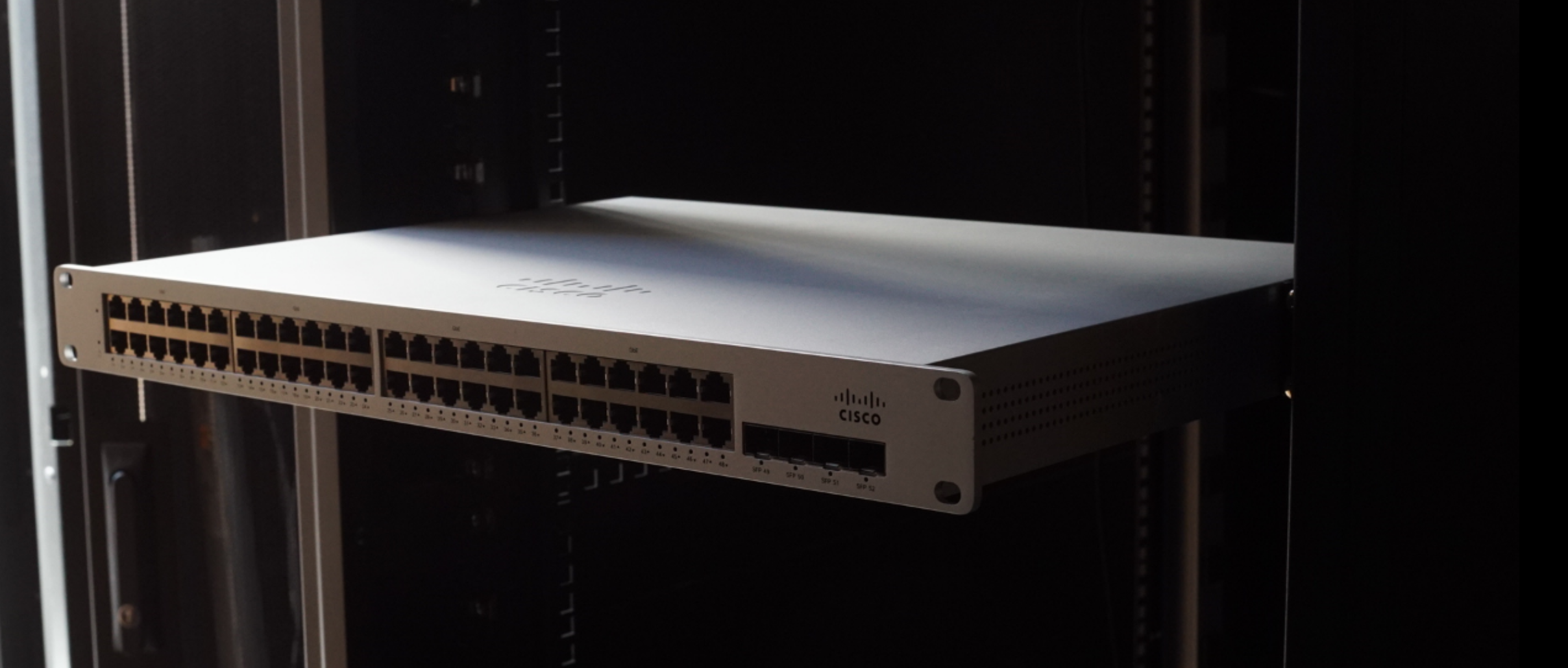

Front view - mid-mounted switch

Rear View

Rear view - mid-mounted switch
