Accessories

  1. Last updated
  2. Save as PDF

Cables

ID Name Specifications Compatible With:

CAB-SPWR-150CM-M

Photo of the CAB-SPWR-150CM-M accessory.

 Meraki StackPower Cable (150 cm)

  • Creates additional power capacity by pooling power sources to power more PoE devices.

  • Additional redundancy saves cost through efficient power distribution to stack

  • Length is 150 cm

 MS390

CAB-SPWR-30CM-M

Photo of the CAB-SPWR-30CM-M accessory.

 Meraki StackPower Cable (30 cm)
  • Creates additional power capacity by pooling power sources to power more PoE devices.
  • Additional redundancy saves cost through efficient power distribution to stack
  • Length is 30 cm
 MS390

MA-CBL-100G-1M

Photo of the MA-CBL-100G-1M accessory.

 Meraki 100G Stacking Cable (1 m)

  • High-performance stacking cable used to daisy-chain switches to each other.

  • Recommended for high-performance networks

  • Length is 1 m

MS355

MS450

MS450-12

MA-CBL-100G-3M

Photo of the MA-CBL-100G-3M accessory.

 Meraki 100G Stacking Cable (3 m)
  • High-performance stacking cable used to daisy-chain switches to each other.
  • Recommended for high-performance networks
  • Length of 3m

MS355

MS450

MS450-12

MA-CBL-100G-50CM

Photo of the MA-CBL-100G-50CM accessory.

 Meraki 100G Stacking Cable (50 cm)
  • High-performance stacking cable used to daisy-chain switches to each other.
  • Recommended for high-performance networks
  • Length of 50cm

MS355

MS450

MS450-12

MA-CBL-120G-3M

Photo of the MA-CBL-120G-3M accessory.

 Meraki 120G Stacking Cable (3 m)
  • High-performance stacking cable used to daisy-chain switches to each other.
  • Recommended for high-performance networks
  • Length of 3m
 MS390

MA-CBL-120G-50CM

Photo of the MA-CBL-120G-50CM accessory.

 Meraki 120G Stacking Cable (0.5 m)
  • High-performance stacking cable used to daisy-chain switches to each other.
  • Recommended for high-performance networks
  • Length of 50 cm
 MS390

MA-CBL-40G-1M

Photo of the MA-CBL-40G-1M accessory.

 Stacking Cable (1 m)
  • High-performance stacking cable used to daisy-chain switches to each other.
  • Recommended for physical stacking in high-performance networks
  • Length of 1m

MS210

MS225

MS250

MS350

MS410

MA-CBL-40G-3M

Photo of the MA-CBL-40G-3M accessory.

 Stacking Cable (3 m)
  • High-performance stacking cable used to daisy-chain switches to each other.
  • Recommended for physical stacking in high-performance networks
  • Length of 3m

MS210

MS225

MS250

MS350

MS410

MS425

MA-CBL-40G-50CM

Photo of the MA-CBL-40G-50CM accessory.

 Stacking Cable (0.5 m)
  • High-performance stacking cable used to daisy-chain switches to each other.
  • Recommended for physical stacking
  • Length of 0.5 m

MS210

MS225

MS250

MS350

MS410

MS425

MA-CBL-SPWR-150CM

Photo of the MA-CBL-SPWR-150CM accessory.

 Meraki StackPower Cable (150 cm)
  • Creates additional power capacity by pooling power sources to power more PoE devices.
  • Additional redundancy saves cost through efficient power distribution to stack
  • Length of 150 cm
 MS390

MA-CBL-TA-1M

Photo of the MA-CBL-TA-1M accessory.

 Twinax Cable with SFP+ Connectors (1 m)
  • A direct attach cable for use with 10 Gigabit Ethernet network hardware.
  • SFP+ direct attach (10GSFP+Cu)
  • Range of 1 m

MS125

MS225

MS250

MS350

MS355

MS390

MS410

MS425

MA-CBL-TA-3M

Photo of the MA-CBL-TA-3M accessory.

 Twinax Cable with SFP+ Connectors (3 m)
  • A direct attach cable for use with 10 Gigabit Ethernet network hardware.
  • SFP+ direct attach (10GSFP+Cu)
  • Range of 3 m

MS125

MS225

MS250

MS350

MS355

MS390

MS410

MS425

STACK-T1-1M-M

Photo of the STACK-T1-1M-M accessory.

 Meraki 120G Stacking Cable (1 m)
  • High-performance stacking cable used to daisy-chain switches to each other.
  • Recommended for high-performance networks
  • Length is 1 m
 MS390

STACK-T1-3M-M

Photo of the STACK-T1-3M-M accessory.

 Meraki 120G Stacking Cable (3 m)
  • High-performance stacking cable used to daisy-chain switches to each other.
  • Recommended for high-performance networks
  • Length is 3 m
 MS390



Fans

ID Name Specifications Compatible With:

FAN-T2-M

Photo of the FAN-T2-M accessory.

 16K2 System Fan
  • Keep your switches cool even when your network heats up.
  • Front-to-back system fan
  • Speeds of 16K RPM
 MS390

MA-FAN-16K

Photo of the MA-FAN-16K accessory.

 16K RPM Fan
  • Keep your switches cool even when your network heats up.
  • Front-to-back fan
  • Speeds of 16K RPM

MS390

MS410-16



Modules

ID Name Specifications Compatible With:

MA-MOD-2X40G

Photo of the MA-MOD-2X40G accessory.

 Two 40G Uplink Modules
  • Provides two ports of 40 Gigabit Ethernet and supports QSFP+ transceivers.
  • Support for QSFP+ transceviers
  • Enhance the functionality of your access switch
 MS390

MA-MOD-8X10G

Photo of the MA-MOD-8X10G accessory.

 Eight 10G Uplink Module
  • Provides 8 ports of 10 Gigabit Ethernet and supports SFP+ transceivers.
  • Support for SFP+ transceivers
  • Enhance the functionality of your access switch
 MS390



Mounts

ID Name Specifications Compatible With:

MA-MNT-MID-1

Photo of the MA-MNT-MID-1 accessory.

 Mid‑Mount Mounting Bracket
  • Suggested for shallow switch racks or racks that mount switches on both sides with their rear sides facing each other.
  • Easy to install
  • Screws included

MS225

MS250

MS225-24

MS225-48

MA-RCKMNT

Photo of the MA-RCKMNT accessory.

 Mounting Brackets
  • Easy to install
  • Screws included

MS250-48

MS225-48

MS250-24

MA-WMNTBR-PWR-ADP

Photo of the MA-WMNTBR-PWR-ADP accessory.

 Meraki Wall Mount Bracket for External Power Adapter
  • Steel Wall Mount Bracket Compatible with Meraki External Power Adapter
  • Durable steel bracket wall mount
  • Flexible fitting with adjustable clamps
  • Compatible with 150W and 300W Meraki power adapters

MA-PWR-150WAC-ADP

MA-PWR-300WAC-ADP



Power

ID Name Specifications Compatible With:

MA-PWR-1100WAC

Photo of the MA-PWR-1100WAC accessory.

 1100W AC Power Supply
  • Field-replaceable and hot-swappable for power where and when you need it.
  • Redundant power supply
  • Supplies up to 1100W of power

MS390-24

MS390-48

MA-PWR-150WAC-ADP

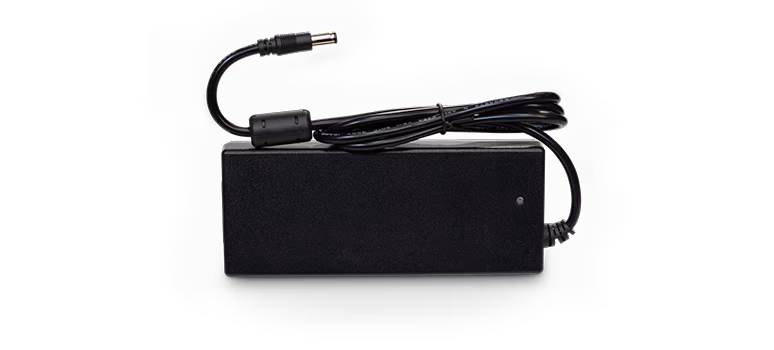

Photo of the MA-PWR-150WAC-ADP accessory.

 Replacement 150 W Power Adapter



 MS130-8X

MA-PWR-300W-INDADP

Photo of the MA-PWR-300W-INDADP​ accessory.​

 Meraki MS130R-8P Power Adapter (300 W)
  • For the Meraki MS130R cloud-managed ruggedized switch
  • Compatible with Meraki Wall Mount Bracket for External Power Adapter
 MS130R

MA-PWR-300WAC-ADP

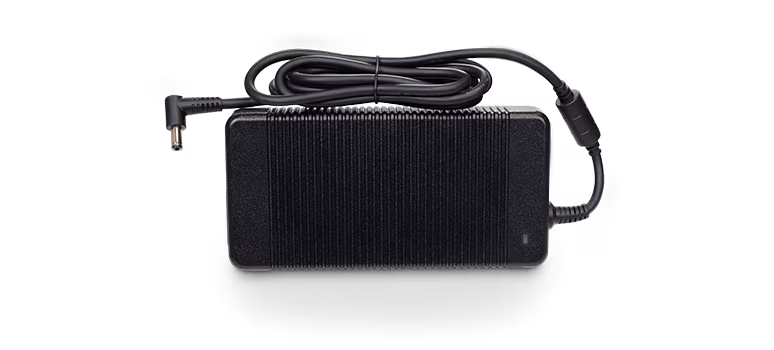

Photo of the MA-PWR-300WAC-ADP accessory.

 Replacement Power Adapter (300 WAC)



 MS130-12X

MA-PWR-350WAC

Photo of the MA-PWR-350WAC accessory.

 350W AC Power Supply
  • Field-replaceable and hot-swappable for power where and when you need it.
  • Redundant power supply
  • Supplies up to 350W of power

MS390-24

MS390-48

MA-PWR-640WAC

Photo of the MA-PWR-640WAC accessory,

 640W Power Supply
  • Field-replaceable and hot-swappable for power where and when you need it.
  • Redundant power supply
  • Supplies up to 640W of power

MS250-24

 MS250-48

MS350-24

MS350-48

MA-PWR-715WAC

Photo of the MA-PWR-715WAC accessory.

 715W AC Power Supply
  • Field-replaceable and hot-swappable for power where and when you need it.
  • Redundant power supply
  • Supplies up to 715W of power

MS390-24

MS390-48

PWR-C1-1100WAC-P-M

Photo of the PWR-C1-1100WAC-P-M accessory.

 1100W AC Power Supply
  • Field-replaceable and hot-swappable for power where and when you need it.
  • Redundant power supply
  • Supplies up to 1100W of power

MS390-24

MS390-48

PWR-C1-350WAC-P-M

Photo of the PWR-C1-350WAC-P-M accessory.

 350W AC Power Supply
  • Field-replaceable and hot-swappable for power where and when you need it.
  • Redundant power supply
  • Supplies up to 350W of power

MS390-24

MS390-48

PWR-C1-715WAC-P-M

Photo of the PWR-C1-715WAC-P-M accessory.

 715W AC Power Supply
  • Field-replaceable and hot-swappable for power where and when you need it.
  • Redundant power supply
  • Supplies up to 715W of power

MS390-24

MS390-48

PWR-MS320-1025WAC

Photo of the PWR-MS320-1025WAC accessory.

 1025W Power Supply
  • Designed for Meraki's cloud-managed networks.
  • Redundant power and hot-swappable for power where and when you need it
  • Supplies up to 1025W of power

MS320-48

MS350-48



Transceivers

ID Name Specifications Compatible With:

MA-QSFP-100G-LR4

Photo of the MA-QSFP-100G-LR4 accessory.

 100 GbE QSFP+ LR4 Fiber Transceiver
  • Hot-swappable transceiver that provides fast communication between switches and other networking components.
  • Quad small form factor 100GBASE-LR4
  • Range of 10 km
 MS450-12

MA-QSFP-100G-SR5

Photo of the MA-QSFP-100G-SR5 accessory.

 100 GbE QSFP+ SR4 Fiber Transceiver
  • A small form-factor transceiver that provides faster communication between switches and other networking components.
  • Compact, hot-swappable transceiver
  • Range of 100 m
 MS450-12

MA-QSFP-40G-CSR4

Photo of the MA-QSFP-40G-CSR4 accessory.

 40 GbE QSFP+ CSR4 Fiber Transceiver
  • A small form-factor transceiver that provides faster communication between switches and other networking components.
  • Compact, hot-swappable transceiver
  • Standard 40GBASE-CSR4 with a range of 400 m

MS355

MS390

MS425

MA-QSFP-40G-LR4

Photo of the MA-QSFP-40G-LR4 accessory.

 40 GbE QSFP+ LR4 Fiber Transceiver
  • A small form-factor transceiver that provides faster communication between switches and other networking components.
  • Compact, hot-swappable transceiver
  • Standard 40GBASE-LR4 with a range of 10 km

MS450-12

MS355

MS390

MS425

MS450

MA-QSFP-40G-SR-BD

Photo of the MA-QSFP-40G-SR-BD accessory.

 40 GbE QSFP+ SR-BD Fiber Transceiver
  • A small form-factor transceiver that provides faster communication between switches and other networking components.
  • Compact, hot-swappable transceiver
  • Standard 40GBASE-SR-BD with a range of 150 m

MS355

MS390

MS425

MA-QSFP-40G-SR4

Photo of the MA-QSFP-40G-SR4 accessory.

 40 GbE QSFP+ SR4 Fiber Transceiver
  • A small form-factor transceiver that provides faster communication between switches and other networking components.
  • Compact, hot-swappable transceiver
  • Standard 40GBASE-SR4 with a range of 150 m

MS355

MS390

MS425

MA-SFP-10GB-ER

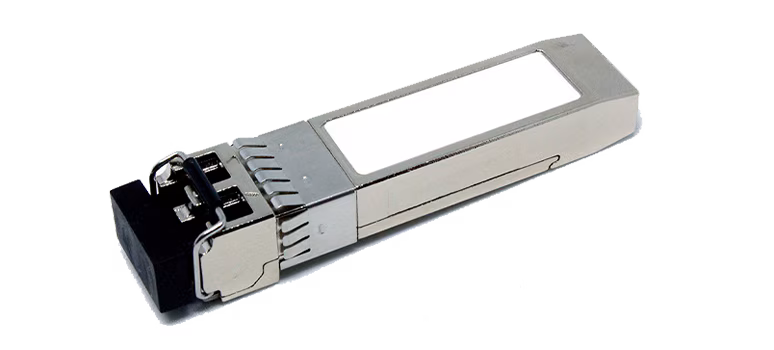

Photo of the MA-SFP-10GB-ER accessory.

 10 GbE SFP+ ER Fiber Transceiver
  • Hot-swappable transceiver that provides fast data transfer.
  • Standard 10GBASE-ER
  • Range of 40 km

MS225-24

MS225-48

MS410-16

MS410-32

MS125

MS225

MS250

MS350

MS355

MS410

MS425

MX250

MX450

MA-SFP-10GB-LR

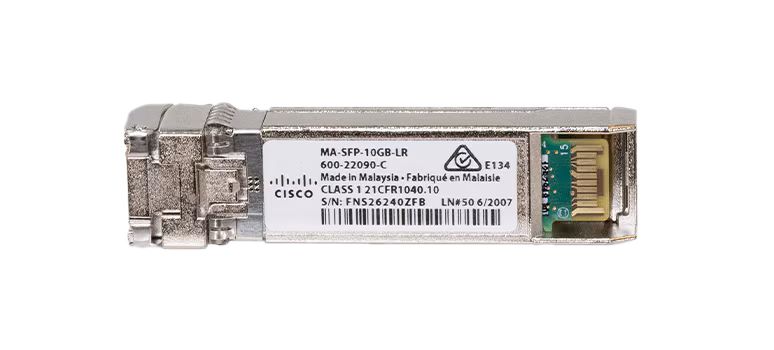

Photo of the MA-SFP-10GB-LR accessory.

 10 GbE SFP+ LR Fiber Transceiver
  • A transceiver that provides fast communication between switches and other networking components.
  • Standard 10GBASE-LR
  • Range of 10 km

MS225-24,

MS225-48

MS410-16

MS410-32

MS225

MS250

MS350

MS355

MS390

MS410

MS425

MA-SFP-10GB-LRM

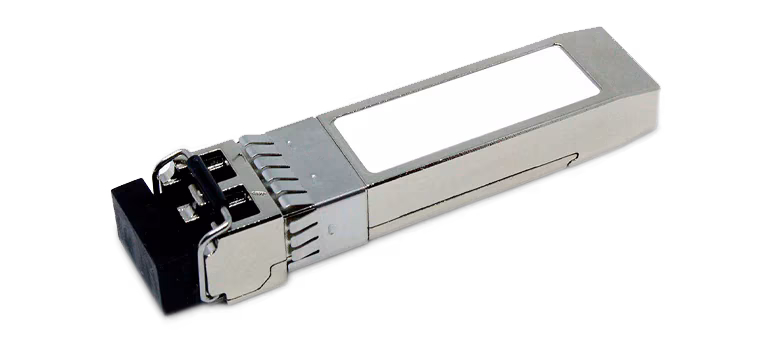

Photo of the MA-SFP-10GB-LRM accessory.

 10 GbE SFP+ LRM Fiber Transceiver
  • A transceiver that provides 10x faster communication between switches and other networking components.
  • Ethernet standard 10GBASE-LRM
  • Range 220 m

MS225-24

MS225-48

MS410-16

MS410-32

MS225

MS250

MS350

MS355

MS390

MS410

MS425

MA-SFP-10GB-ZR

Photo of the MA-SFP-10GB-ZR accessory.

 10 GbE SFP+ ZR Fiber Transceiver
  • A transceiver that provides 10x faster communication between switches and other networking components.
  • Standard 10GBASE-ZR
  • Range of 80 km

MS225

MS250

MS350

MS355

MS410

MS425

MX250

MX450

MA-SFP-1GB-LX10

Photo of the MA-SFP-1GB-LX10 accessory.

 1 GbE SFP LX Fiber Transceiver
  • Hot-swappable transceiver that provides fast communication between switches and other networking components.
  • Standard 1000BASE-LX10
  • Range of 10 km
  • For use with all MS series switches

MS210-24

MS210-48

MS225-24

MS225-48

MS410-16

MS410-32

MS450-12
  1. Back to top
  • Was this article helpful?

Recommended articles

  1. Article type
    Topic
  2. Tags
    This page has no tags.
