Accessories

CW-ACC-KIT1-00

• Includes spare parts for Cisco CW9163E:
• Contains:
  • 1x grounding lug
  • 2x grounding screw
  • 5x RJ45 gland
  • 4x waterproof N-type cap
  • 1x GPS connector cap
  • 2x RJ45 dust cap
  • 2x reset button cap

CW-ANT-D1-NS-00

Directional Patch Antenna for Cisco CW9163E

• Outdoor Tri-band Wi-Fi 6E directional antenna
• 8/9/9 dBi on 2.4/5/6 GHz respectively
• 70x30 coverage pattern
• Contains:
  • CW-MNT-ART2-00 articulating mount
  • 4 x N-type connectors
• Self Identifying Antenna (SIA)

• Optional external GPS/GNSS antenna
• Azimuth: omni
• Max gain +2 dBi
• Connection: 10 ft, low loss, RF pigtail cables with SMA(M) connector

• Omnidirectional external antenna to provide broad coverage.
• Antenna gain: max gain of 4 dBi at 2.4 GHz; max gain of 8 dBi at 5 and 6 GHz
• Antenna beam width: Azimuth: omni; Elevation (3 dB bandwidth): 30° at 2.4 GHz; 30° at 5 GHz, and 30° at 6 GHz
• Direct connect with N-type (M) connector

• Improve the reach and connectivity of a network by increasing signal strengths between repeaters and clients.
• Antenna type: omni-directional
• Frequency range: (2 GHz): 2.400 - 2.500 GHz; (5 GHz): 5.150 – 5.875 GHz
• Gain: 4/7 dBi
• Half-power bandwidth/horizontal: 360° / vertical: 45°
• Contains two Cisco Meraki MA-ANT-20 antennas

MR76

MR86

• Allows delivery of data and power to a Meraki MR AP and Meraki MV smart camera over a single Ethernet cable.
• Confirm device specifications to ensure compatibility.
• Input voltage: 100 to 240 AC
• Input current: 1.5A maximum; input frequency: 50-60 Hz
• Maximum output power: 60W
• Powered device can be up to 100 m away from power injector
• 6.5 in × 3.5 in × 1.7 in (166 mm × 87.9 mm × 43 mm)

• Allows delivery of data and power to Meraki Wi-Fi 6 and Wi-Fi 6E devices.
• Input voltage: 100 to 240 AC
• Input current: 2.0A (RMS) 90VAC @ max load;1.2A (RMS) 240VAC @ max load
• Maximum output power: 60W; input frequency: 50-60 Hz
• Powered device can be up to 100 m away from power injector
• 6.53 in × 6.43 in × 2.6 in (166 mm × 163.25 mm × 65.3 mm)

CW9163E

MR36

MR36H

MR44

MR46

MR46E

MR56

MR57

MR76

MR86

• Deploy directional Wi-Fi 6E with a wide range of pan and tilt options.
• 129 mm main frame mount
• 80 mm AP frame mount
• 235 mm long arm
• Wall mount or pole mount options

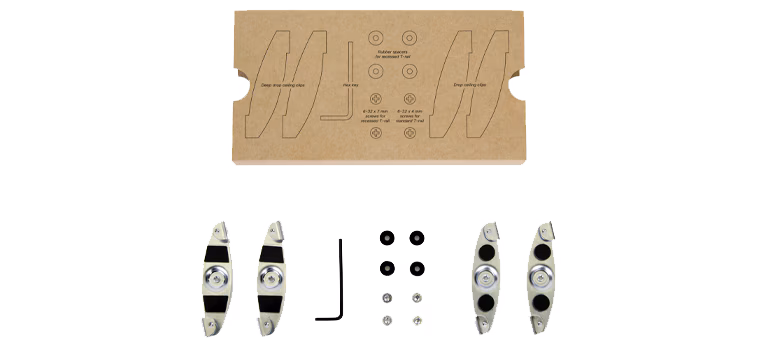

• Includes two deep-drop ceiling clips and T-rail adapter for recessed T-rail and flush T-rail.
• Compatible with all Meraki MR indoor APs and MV12 and MV32 cameras.
• Deep-drop ceiling clip works well with “Armstrong silhouette” and similar ceiling grids

MR36

MR44

MR46

MR46E

MR56

• This kit provides mounting accessories and hardware for Cisco Meraki MR33 access points.
• Can be used to mount to most 9/16 in, 15/16 in, or 1 ½ in T-rails
• Contains:
  • Replacement mount plate
  • Drop ceiling clips
  • Security screw tool
  • Two 6-32x4 mm (flush T-rail) screws
  • Two 6-32x7 mm screws (recessed T-rail)
  • Two rubber spacers
  • Two wall screws and anchors
  • Security screws

• Can be used to mount to most 9/16 in, 15/16 in, or 1 ½ in T-rails
• Contains:
  • Replacement mount plate
  • Drop ceiling clips
  • Security screw tool
  • Two 6-32x4 mm (flush T-rail) screws
  • Two 6-32x7 mm screws (recessed T-rail)
  • Two rubber spacers
  • Four wall screws and anchors
  • Security screws

MR55

MR56

• This kit provides mounting accessories and hardware for Cisco Meraki MR44, MR45, and MR46 access points.
• Can be used to mount to most 9/16 in, 15/16 in, or 1 ½ in T-rails
• Contains:
  • Replacement mount plate
  • Drop ceiling clips
  • Security screw tool
  • Two 6-32x4 mm (flush T-rail) screws
  • Two 6-32x7 mm screws (recessed T-rail)
  • Two rubber spacers
  • Four wall screws and anchors
  • Security screws

MR44

MR45

MR46

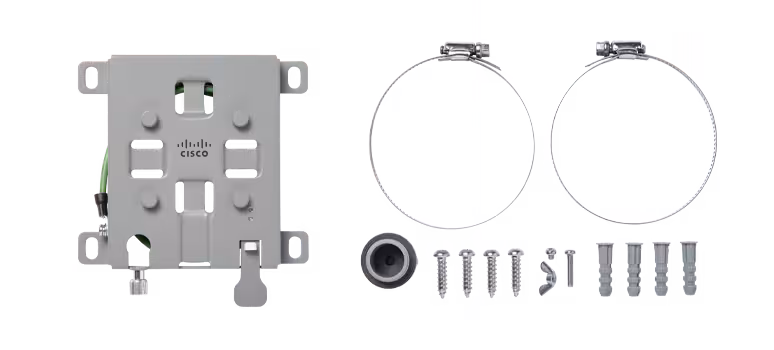

• This kit provides mounting accessories and hardware for Cisco Meraki MR76, MR86, and CW9163E access points.
• Contains:
  • Replacement mount plate
  • Drop ceiling clips
  • Four wall screws and anchors
  • Grounding screws
  • Mounting straps
  • Cable gland

• This kit provides mounting accessories and hardware for Cisco Meraki MR36 access points.
• Can be used to mount to most 9/16 in, 15/16 in, or 1 ½ in T-rails
• Contains:
  • Replacement mount plate, drop ceiling clips, security screw tool
  • Two 6-32x4 mm (flush T-rail) screws
  • Two 6-32x7 mm screws (recessed T-rail)
  • Two rubber spacers
  • Four wall screws and anchors
  • Security screws

• Replacement mounting accessories for Cisco Meraki MR30H access points, which are designed for wall-plate deployments.
• Replacement mounting accessories for Cisco Meraki MR30H access points
• Designed for wall-plate deployments
• Contains:
  • Four wall screws and anchors
  • Security screws
  • Eject/security screw tool

• Designed to be used in installations where additional cabling outlets are needed (e.g. telephone cabling) via the same wall plate used by an MR30H access point.
• Replacement mounting accessories for Cisco Meraki MR30H access points
• Designed for installations where additional cabling outlets are needed
• Contains:
  • Front and rear panels
  • Two 12 mm Philips head screws
  • One keystone jack port

• Designed for Meraki MR30H access point installations where cable security is needed to prevent physical access to the integrated switch ports.
• Allows secure wired guest services while ensuring physical cabling infrastructure
• Contains:
  • Front/back panels
  • One 12 mm Phillips screw
  • Two 12 mm torx screws
  • One 25 mm torx screw
  • One L-wrench

• Designed to simplify the transition from Cisco Catalyst/Aironet access points to Cisco Meraki access points.
• Can be attached directly to the Cisco universal bracket
• Contains:
  • One mounting adapter
  • Two M3.5 7 mm Phillips head screws

MR33

MR36

MR42/E

MR44

MR45

MR46

MR46E

MR52

MR55

MR56

• Designed to simplify the transition from Aruba access points to Cisco Meraki access points.
• Can be attached directly to the Aruba universal bracket
• Contains:
  • One mounting adapter
  • Two M3.5 7 mm Phillips head screws

MR33

MR36

MR42/E

MR44

MR45

MR46

MR46E

MR52

MR55

MR56

• Power for Cisco Meraki MR access points. Four different plug types ensure compatibility with AC outlets in nearly every country around the globe.

• Compatible with all indoor APs, except MR30H

• 4.8 in × 2.3 in × 1.9 in (122 mm × 58 mm × 49 mm);

• Weight: 0.36 lb (163 g)

• Input: 100-240V 50/60 Hz AC

• Output: 12V 2.5A DC

MR36

MR44

MR46

MR46E

MR56
