MR53E Installation Guide

The Cisco Meraki MR53E is a dual-band enterprise class 802.11ac Wave 2 cloud-managed access point with support for external antennas. Designed for highest capacity and highest density, the MR53E meets the need of the most demanding environments. The access point also includes a third radio dedicated to optimizing the RF environment and securing the airwaves along with a BLE radio for supporting IoT applications.

Product Overview

Physical Specifications



  • 1x 100/1000/2.5G BASE-T Ethernet
  • 1x 10/100/1000 BASE-T Ethernet (RJ45)
  • 1x DC power connector (5.5 mm x 2.5 mm, center positive)
  • Six external RP-TNC antenna connectors


  • Power over Ethernet: 37-57 V (802.3at required; functionality-restricted 802.3af mode supported)
  • Alternative: 12 V DC input
  • Power consumption: 20W max (802.3at)
  • Power over Ethernet injector and DC adapter sold separately


  • Operating temperature: 32 °F to 104 °F (0 °C to 40 °C)
  • Storage and Transportation Temperature: -4 °F to 158 °F (-20 °C to 70 °C)
  • Humidity: 5 to 95% non-condensing

Physical Security

  • Two security screw options (included) (10 mm long and 2.5 mm diameter and 4.7 mm head)
  • Kensington lock hard point
  • Concealed mount plate with anti-tamper cable bay

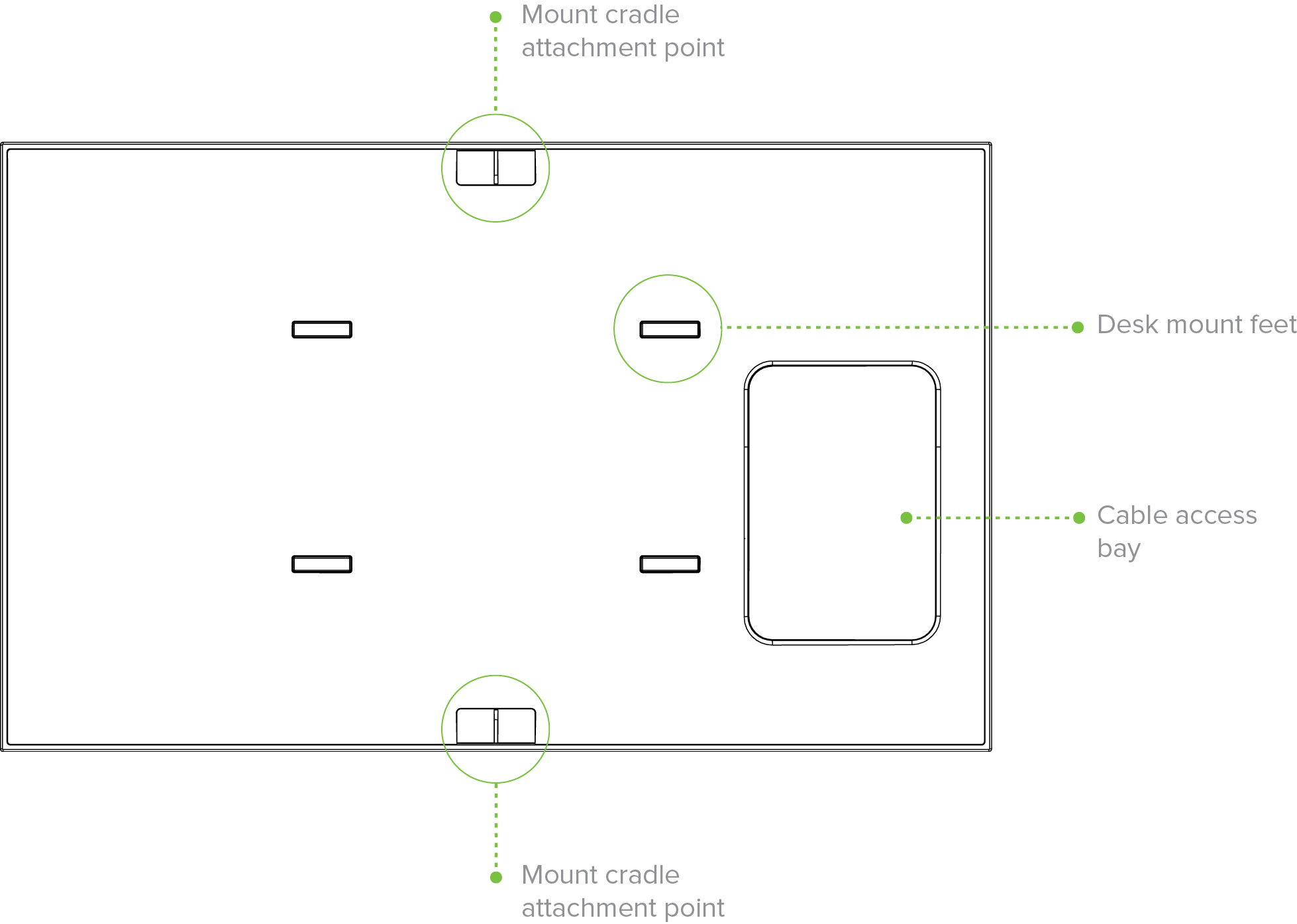

Product View and Physical Features

Your Meraki MR52 and MR53 both have the following features:

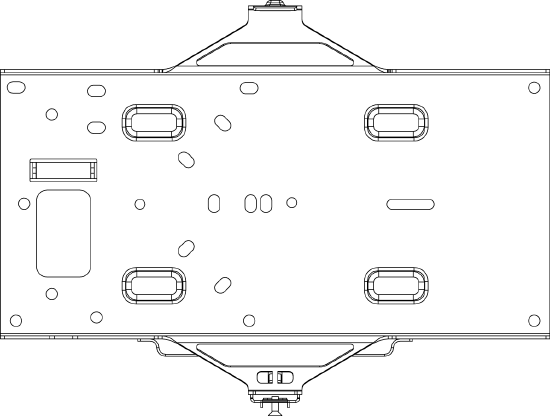

The mount cradle has the following features:

Security Features

The MR53E both feature multiple options for physically securing the access point after installation:

  1. Security screw – The accessory kit includes screws that can be used to secure the access point to the mount cradle. Engaging the security screw prevents accidental dislodging and theft.
  2. Kensington lock – The access point contains a hard point that allows it to be secured to any nearby permanent structure using a standard Kensington lock.

External Antenna Ports

The MR53E has 6 external antenna ports:

The ports labeled 2.4/5 is meant for client serving radios


The port labeled Scan is meant for scanning wireless channels

The port labeled IoT is meant for BLE applications

Ethernet Ports

The MR53E features 2 Ethernet ports:


Screen Shot 2016-04-24 at 5.38.45 PM.png

  The labeled “PoE” accepts 802.3at and 802.3af power and should be used as the primary uplink to your LAN/WAN.


Screen Shot 2016-04-27 at 3.43.40 PM copy copy.png

  The 2nd port may be used for LACP bonding with the PoE port.


Link Aggregation

The second Ethernet port can be used in a bonded configuration with the "PoE" port. Ensure that the AP is plugged into 2 switch ports on the same Ethernet switch that have been configured for LACP bonding. Keep in mind that the maximum bonded aggregate bandwidth is 2.0 Gbps. See the MR Link Aggregation Configuration Guide for more details.

Extending the LAN

If only 1 Ethernet port is used to link the AP to the LAN/WAN, the second Ethernet port may be used to connect devices that do not have wireless capability. In order to utilize the additional LAN port to extend connectivity, a Port Profile needs to be applied to AP. This configuration can be used either when the AP is operating with 1 Ethernet uplink or when in repeater mode.

Power Source Options

The MR53E access point can be powered using either the Meraki AC Adapter, PoE Injector (both sold separately), or a third-party PoE switch.

Keep in mind that only the primary uplink will draw PoE.

The MR53E will function in low power mode when powered by an 802.3af power source. While in low power mode, the MR53E will disable its Air Marshal radio as well as three out of four transmit streams on the 2.4 GHz band. Despite being in low power mode, the device can still supply full 802.11ac capabilities.

When using Cisco switches, an extra step may be required to configure the Cisco switch to use LLDP to communicate with the Meraki MR53E; see the following article for more details:

Factory Reset Button

If the button is pressed and held for at least five seconds and then released, the AP will reboot and be restored to its original factory settings by deleting all configuration information stored on the unit.

LED Indicators and Run Dark Mode

Your MR53E is equipped with a multi-color LED light on the front of the unit to convey information about system functionality and performance:

  • Orange - AP is booting (permanent Orange suggests hardware issue)
  • Rainbow - AP is initializing/scanning
  • Blinking Blue - AP is upgrading
  • Green - AP in Gateway mode with no clients
  • Blue - AP in Gateway mode with clients
  • Blinking Orange - AP can't find uplink

NOTE: Blinking Green LED indicates that the device is in site survey mode. Please see the Conducting Site Surveys with MR Access Points for more details.

The MR53E may be operated in “Run Dark” mode for additional security and to reduce the visibility of the access point. In this mode, the LED will not be illuminated.

Package Contents

The MR53E packages contain the following:

  • MR53E Cloud-Managed Access Point



  • Mount cradle including built-in level tool




  • Drop ceiling mount kit



  • Wall screws, wall screw anchors, and security screws



  • Spare hardware

Safety and Warnings

These operations are to be taken with respect to all local laws. Please take the following into consideration for safe operation:

  • Power off the unit before you begin. Read the installation instructions before connecting the system to the power source.
  • Before you work on any equipment, be aware of the hazards involved with electrical circuitry and be familiar with standard practices for preventing accidents.
  • Read the wall-mounting instructions carefully before beginning installation. Failure to use the correct hardware or to follow the correct procedures could result in a hazardous situation to people and damage to the system.
  • This product relies on the building’s installation for short-circuit (overcurrent) protection. Ensure that the protective device is rated not greater than: 15 A, 125 Vac, or 10A, 240 Vac.
  • Please only power the device with the provided power cables or standard PoE to ensure regulatory compliance.

Pre-Install Preparation

You should complete the following steps before going on-site to perform an installation.

Configure Your Network in Dashboard

The following is a brief overview only of the steps required to add a MR53E to your network. For detailed instructions about creating, configuring and managing Meraki wireless networks, refer to the online documentation (

  1. Login to If this is your first time, create a new account.
  2. Find the network to which you plan to add your APs or create a new network.
  3. Add your APs to your network. You will need your Meraki order number (found on your invoice) or the serial number of each AP, which looks like Qxxx-xxxx-xxxx, and is found on the bottom of the unit. You will also need your Enterprise license key, which you should have received via email.
  4. Go to the map / floor plan view and place each AP on the map by clicking and dragging it to the location where you plan to mount it.

Check and Upgrade Firmware

To ensure your MR53E performs optimally immediately following installation, it is recommended that you facilitate a firmware upgrade prior to mounting your AP.

  1. Attach your AP to power and a wired Internet connection. See the "Power the AP" section for details.
  2. The AP will turn on and the LED will glow solid orange. If the unit does not require a firmware upgrade, the LED will turn either green (no clients associated) or blue (clients associated) within thirty seconds.

* If the unit requires an upgrade, the LED will begin blinking orange until the upgrade is complete, at which point the LED will turn solid green or blue. You should allow at least a few minutes for the firmware upgrade to complete, depending on the speed of your internet connection.

Check and Configure Firewall Settings

If a firewall is in place, it must allow outgoing connections on particular ports to particular IP addresses. The most current list of outbound ports and IP addresses for your particular organization can be found here

Assigning IP Addresses

All gateway MR53Es (An AP with Ethernet connections to the LAN) must be assigned routable IP addresses. These IP addresses can be dynamically assigned via DHCP or statically assigned.

Dynamic Assignment

When using DHCP, the DHCP server should be configured to assign a static IP address for each MAC address belonging to a Meraki AP. Other features of the wireless network, such as 802.1X authentication, may rely on the property that the APs have static IP addresses.

Static Assignment

Static IPs are assigned using the local web server on each AP. The following procedure describes how to set the static IP:

  1. Using a client machine (e.g., a laptop), connect to the AP wirelessly (by associating to any SSID broadcast by the AP) or over a wired connection.
  2. If using a wired connection, connect the client machine to the AP either through a PoE switch or a PoE Injector. If using a PoE switch, plug an Ethernet cable into the AP’s Ethernet jack, and the other end into a PoE switch. Then connect the client machine over Ethernet cable to the PoE switch. If using a PoE Injector, connect the AP to the “PoE” port of the Injector, and the client machine to the “LAN” port.
  3. Using a web browser on the client machine, access the AP’s built-in web server by browsing to Alternatively, browse to
  4. Click on the “Uplink Configuration” tab. Log in. The default login is the serial number (e.g. Qxxx-xxxx-xxxx), with no password (e.g., Q2DD-551C-ZYW3).
  5. Configure the static IP address, net mask, gateway IP address and DNS servers that this AP will use on its wired connection.
  6. If necessary, reconnect the AP to the LAN.

Static IP via DHCP Reservations

Instead of associating to each Meraki AP individually to configure static IP addresses, an administrator can assign static IP addresses on the upstream DHCP server. Through “DHCP reservations,” IP addresses are “reserved” for the MAC addresses of the Meraki APs. Please consult the documentation for the DHCP server to configure DHCP reservations.

Collect Tools

You will need the following tools to perform an installation:


Collect Additional Hardware for Installation

You will need the following hardware to perform an installation:


Installation Instructions

Warning: Due to the heat dissipation in the back of APs during normal operation, please do not stack powered on APs on top of each other during pre-installation to avoid heat damage.

Choose Your Mounting Location

A good mounting location is important to getting the best performance out of your access point. Keep the following in mind:

  1. The antenna attached to the access point should have unobstructed line of sight to most coverage areas. For example, if installing in an office filled with workspaces divided by mid-height cubicle walls, installing on the ceiling or high on a wall would be ideal.
  2. Power over Ethernet supports a maximum cable length of 300 ft (100 m).
  3. If being used in a mesh deployment, the antenna attached to the access point should have line of sight to at least two other Meraki access points. A Cisco Partner can help ensure that your AP placement is ideal.

Install the AP

For most mounting scenarios, the MR53E mount cradle provides a quick, simple, and flexible means of mounting your device. The installation should be done in two steps. First, install the mount cradle to your selected location. Then, attach the access point to the mount cradle.

Attach the mount cradle

The MR53E  mount cradle can be used to install your access point in a wide range of scenarios: wall or solid ceiling, below a drop ceiling, on various electrical junction boxes.

The mount cradle contains a variety of hole patterns that are customized for each installation scenario. The mounting template (included inbox with mount cradle) should be used to drill holes for wall mounts and also to identify the correct hole patterns in the mount cradle that should be used for each type of mount. The included mount cradle template shows the hole patterns that should be used for each type of mount.

Wall or Solid Ceiling Mount Using mount cradle

Using included wall anchors and screws, attach the mount cradle to your mounting wall or ceiling. It is recommended that the access point be mounted to a wall or solid ceiling using the mount cradle for physical security reasons.

Drop ceiling mount using mount cradle

To mount your access point on a drop ceiling T-rail, use the included drop ceiling mounting accessory kit. The accessory kit can be used to mount to most 9/16”, 15/16” or 1 ½” T-rails. The kit contains:

  • Drop ceiling mounting clips with set screws



  • 6-32x4 mm screws



  • 6-32x7 mm screws only used for recessed rail mount (uncommon)



  • 2 rubber spacers



  1. Attach the T-rail clips to the T-rail by rotating them and snapping them into place as shown. The black foam pads should be compressed slightly after installation.    attach-t-rail-clips.png
  2. Using the dashed lines on the mount cradle template as a guide, set the proper spacing of the T-rail clips on the T-rail.
  3. Tighten the set screws on the T-rail clips to secure the clips using a 5/64”(2 mm) hex key.
  4. Attach the mount cradle to the T-rail clips using the mount cradle holes (marked with a “T“).

Tip: Pre-assemble rubber spacers and screws to the mount cradle. The mount cradle can then be held with one hand while the other hand holds a screwdriver. If mounting your access point to a dropped ceiling, skip to the "Power the AP" section.

Electrical Junction Box Mount Using mount cradle

The MR53E can be mounted to a 4” square cable junction box, a 3.5 or 4” round cable junction box, or various U.S. and European outlet boxes (mounting screws are not included).
Using appropriate mounting hardware for your specific type of junction box, attach the mount cradle to the junction box.

Power the AP

If mounting to an electrical junction box, feed the Ethernet cable through the cable access hole in the mount cradle. If mounting to a wall or ceiling, the Ethernet cable will feed from behind the access point. The "Power Source Options" section of this document lists the different powering options and their unique characteristics

Mount the AP

Attach the AP to the Mount Cradle

(This section applies to wall and/or solid ceiling, drop ceiling or electrical junction box mount
where you have already installed the mount cradle.)

The AP attaches to the mount cradle with two tabs on the cradle that insert into the AP, and is secured to the cradle using one screw.

To attach the AP to the mount cradle properly, line up the top edge of the AP with the top tab of the mount cradle. Since the cradle is already mounted to the wall, guide the AP towards the top tab and insert the top tab into the AP’s slot.




Then adjust the AP to guide the AP’s bottom slot into the cradle’s bottom tab until it clicks into place. Once in place, the AP should be secured to the cradle by using one of the included screws in the cradle’s bottom tab.



To release the AP from the mount cradle, first remove the security screw that secures the AP to the cradle’s bottom tab. While holding the AP with one hand, press the cradle’s bottom tab upwards, releasing the AP from the bottom of the cradle. Then remove the AP from the cradle’s top tab.

Desk or Shelf Mount

The MR53E can be placed on a desk or shelf resting on the non-scratch rubber feet. The mount cradle is not necessary for a desk or shelf installation.

Attach Antenna

The MR53E is certified for use with the following Meraki indoor antennas:

  1. MA-ANT-3-A1/6 (1/6 stands for the quantity of the antennas)
  2. MA-ANT-3-B1/6 (1/6 stands for the quantity of the antennas)
  3. MA-ANT-3-C6 (6 stands for the number of ports for the antennas)
  4. MA-ANT-3-D6 (6 stands for the number of ports for the antennas)
  5. MA-ANT-3-E6 (6 stands for the number of ports for the antennas)
  6. MA-ANT-3-F6 (6 stands for the number of ports for the antennas)

These antennas come with RP-TNC connectors compatible with the MR53E.

Connecting MA-ANT-3-A/B series antennas

The MA-ANT-3-A/B series antennas are dipole omnidirectional antennas that may be connected to any of the antenna connectors on the MR53E, order is not important.

Connecting MA-ANT-3-C/D/E/F series antennas

The MA-ANT-3-C/D/E/F antennas will come with six antenna cables with RP-TNC connectors that connect into the six antenna ports on top of the access point. Five antenna cables have a white jacket just above the RP-TNC connector and should connect into the four 2.4/5 GHz antenna ports and one Scanning antenna port. One of the antenna cables will have a grey jacket above the RP-TNC connector and should connect into the IoT antenna port.

C/D/E/F series antennas will be automatically detected by the AP. Once an antenna is detected by the AP it cannot be changed in dashboard until the antenna is removed and AP is rebooted.


It is important to ensure that all six antenna ports on the MR53E are connected to their respective antenna cables for maximum performance and functionality.

Using Non-Meraki Antennas

Using MR devices with non-Meraki antennas is not recommended. If customers use non-Meraki antennas, it is important to connect one of the antennas to the scanning radio as the scanning radio cannot be turned off. Data captured on the scanning radio is used to feed information into the AutoRF algorithm, and if an antenna is not connected, AutoRF can yield undesirable results. Additionally, Meraki dashboard does not have information on any non-Meraki antennas and customers need to ensure that the correct TX power limits are set in order to maintain regulatory compliance.

Secure the AP

Depending on your mounting environment, you may want to secure the AP to its mount location. The MR53E  can be secured in several ways. If the AP has been installed using the mount cradle, it should be secured via security screw (Torx security screws are included) and/or Kensington lock. If the mount cradle was not used, the AP can still be secured using a Kensington lock.

Security Screw

Install the security screw in the lower mount cradle tab.

Kensington Lock

Attach a Kensington lock cable to the access point at the hard point on the side of the device.
Attach the other end of the cable to a secure location, such as a pipe or building fixture.

Verify Device Functionality and Test Network Coverage

  1. Check LEDs
    1. The Power LED should be solid green (or blue, if clients are connected). If it is flashing blue, the firmware is automatically upgrading and the LED should turn green when the upgrade is completed (normally within a few minutes). See the "LED Indicators" section for more details. .
    2. Note: Your AP must have an active route to the Internet to check and upgrade its firmware.
  2. Verify access point connectivity
    1. Use any 802.11 client device to connect to the AP and verify proper connectivity using the client’s web browser.
  3. Check network coverage
  4. Confirm that you have good signal strength throughout your coverage area. You can use the signal strength meter on a laptop, smart phone, or other wireless device.

Basic Troubleshooting

The following steps can be used for troubleshooting basic connectivity issues with your access point.

  • Reset the access point
  • Factory reset the access point by holding the factory reset button for 5 seconds
  • Try switching cables, or testing your cable on another device

If your access point still does not connect, the following instructions may be useful, depending on your issue.


Check Radio Functionality by Making the AP a Repeater

  1. If your AP is acting as a gateway, disconnect the Ethernet cable from the LAN (while keeping the AP powered on). This will switch your AP into repeater mode. If no other gateways are within range, the AP will begin broadcasting an SSID appended with "-scanning". If you are able to connect to this SSID and go to from your web browser, then your radio is working.
  2. Physically place the repeater AP (AP with disconnected LAN) next to a working gateway AP.
  3. Connect the power adapter or PoE. The radio and signal strength LEDs on the AP will turn solid green or blue once the access point boots up and detects the gateway.
  4. The access point is now a repeater and will check into Dashboard.
  5. On dashboard under monitor and access points you will see the connectivity bar for the specific Repeater AP reflecting a light green color, which means the AP is a repeater. Gateway APs will reflect a dark green color in the connectivity bar and also will have the letter G (Gateway) on top of the AP symbol.


Check Ethernet Port Functionality by Connecting to the AP

  1. Disable the Wireless adapter on your computer.
  2. Make sure the Ethernet adapter on your device is set to obtain an IP address automatically via DHCP.
  3. Connect your computer to the Ethernet port on the AP with an Ethernet cable.
  4. The Ethernet LED on the AP should turn solid green or blue.
  5. If the Ethernet LED does not turn solid green or blue, try swapping the cable. If the Ethernet port still does not turn green or blue, try the second Ethernet port, if the AP has one.
  6. If the Ethernet LED does not turn solid green or blue, you may have a bad port on the AP. If this is the case, the AP signal LEDs will continue to scan.
  7. Once the Ethernet LED turns solid green or blue, your computer should obtain an IP address from the AP via DHCP.


Check Static IP Address Configuration

  1. If the AP has a static IP address, the green signal LEDs will begin to flash on and off and you will not receive an IP address via DHCP.
  2. Disconnect the Ethernet cable from the AP.
  3. Associate to the SSID being broadcasted by the AP. If there are no other APs in the network within range the SSID may be appended with "-scanning".
  4. Go to in your web browser.
  5. The MAC address on the back of the access point should match the physical address value on the Overview page.
  6. Once you have verified that the MAC address is correct on the overview tab, click the tab Static IP configuration.
  7. Enter the username  (serial number on the back of the AP) which is case sensitive and must include the dashes. (There is no password).
  8. Make sure your AP is set to obtain a correct DHCP or static IP address configuration from your network.


Reference for additional information and troubleshooting tips.

If you are still experiencing hardware issues, please contact Cisco Meraki support by logging in to dashboard and using the Help option near the top of the page, then opening and email case or calling using the contact information on that page.


Additional warranty information can be found on the MR53E Datasheet or on the Warranty Returns (RMA) page of the Cisco Meraki website.

If your Cisco Meraki device fails and the problem cannot be resolved by troubleshooting, contact support to address the issue. Once support determines that the device is in a failed state, they can process an RMA and send out a replacement device free of charge. In most circumstances, the RMA will include a pre-paid shipping label so the faulty equipment can be returned.


In order to initiate a hardware replacement for non-functioning hardware that is under warranty, you must have access to the original packaging the hardware was shipped in. The original hardware packaging includes device serial number and order information, and may be required for return shipping.


Meraki MR53E devices have been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.


Additional warranty information can be found on:

Support and Additional Information

If issues are encountered with device installation or additional help is required, contact Meraki Support by logging in to and opening a case by visiting the Get Help section.

  • The equipment is intended for industrial or other commercial activities.
  • The equipment is used in areas without exposure to harmful and dangerous production factors, unless otherwise specified in the operational documentation and/or on the equipment labeling.
  • The equipment is not for domestic use. The equipment is intended for operation without the constant presence of maintenance personnel.
  • The equipment is subject to installation and maintenance by specialists with the appropriate qualifications, sufficient specialized knowledge, and skills.
  • Rules and conditions for the sale of equipment are determined by the terms of contracts concluded by Cisco or authorized Cisco partners with equipment buyers.
  • Disposal of a technical device at the end of its service life should be carried out in accordance with the requirements of all state regulations and laws.
  • Do not throw in the device with household waste. The technical equipment is subject to storage and disposal in accordance with the organization's disposal procedure.
  • The equipment should be stored in its original packaging in a room protected from atmospheric precipitation. The permissible temperature and humidity ranges during storage are specified in the Operation (Installation) Manual.
  • Transportation of equipment should be carried out in the original packaging in covered vehicles by any means of transport. The temperature and humidity during transportation must comply with the permissible established ranges of temperature and humidity during storage (in the off state) specified in the Operation Manual (Installation)

For additional information on Meraki hardware and for other installation guides, please refer to

  • Was this article helpful?
