Hybrid Campus LAN Design Guide (CVD)

This document provides a pre-validated design & deployment guide for "a" Hybrid Campus LAN comprising both Cisco and Meraki platforms alongside the various design guidelines, topologies, technologies, configurations, and other considerations relevant to the design of any highly available, full-service campus switching fabric. It is also intended to serve as a guide to direct readers to general design best practices for Cisco Hybrid Campus LAN.

Overview

The LAN is the networking infrastructure that provides access to network communication services and resources for end users and devices spread over a single floor or building. You create a campus network by interconnecting a group of LANs that are spread over a local geographic area. Campus network design concepts include small networks that use a single LAN switch, up to very large networks with thousands of connections.

The campus wired LAN enables communications between devices in a building or group of buildings, as well as interconnection to the WAN and Internet edge at the network core.

Specifically, this design provides a network foundation and services that enable:

  • Tiered LAN connectivity.
  • Wired network access for employees.
  • IP Multicast for efficient data distribution.
  • Wireless & Wired infrastructure ready for multimedia services.

Cisco's Campus LAN architecture offers customers a wide range of options; the Catalyst portfolio with Digital Network Architecture (aka DNA) provides a roadmap to digitization and a path to realizing immediate benefits of network automation, assurance and security. And the Meraki fullstack portfolio with Meraki dashboard enables customers to accelerate business evolution through easy-to-use cloud networking technologies that deliver secure customer experiences and simple deployment network products. It may also be appealing in a lot of scenarios to use both product lines (i.e. Catalyst and Meraki) in the same Campus LAN to maximize value and benefit from both networking products.

Thus, Hybrid Campus is a very common architecture in building secure, scalable and robust enterprise networks. Hybrid refers to the mixing of different platforms (e.g. Meraki MS switches and Catalyst 9k) and therefore requires proper planning and design for interoperability and performance.

Introduction

Designing a LAN for the campus use case is not a one-design-fits-all proposition. The scale of campus LAN can be as simple as a single switch and wireless AP at a small remote site or a large, distributed, multi-building complex with high-density wired port and wireless requirements. The deployment may require very high availability for the services offered by the network, with a low tolerance for risk, or there may be tolerance for fix-on-failure approach with extended service outages for a limited number of users considered acceptable. Platform choices for these deployments are often driven by needs for network capacity, the device and network capabilities offered, and the need to meet any compliance requirements that are important to the organization.

This document provides a pre-validated design & deployment guide for "a" Hybrid Campus LAN comprising both Cisco and Meraki platforms alongside the various design guidelines, topologies, technologies, configurations, and other considerations relevant to the design of any highly available, full-service campus switching fabric. It is also intended to serve as a guide to direct readers to general design best practices for Cisco Hybrid Campus LAN.

Cloud Management and Monitoring for Cisco Catalyst

Cloud Monitoring

Selected Cisco Catalyst devices (9200, 9300 and 9500) are capable of connecting to the Meraki Dashboard for monitoring purposes. This offers dashboard monitoring and insights for Catalyst devices including visibility into some configuration items. However, please note that this does not offer full management in Meraki Dashboard. (i.e. No configuration changes in Meraki Dashboard). Please see the following snapshot of C9500 switches/stacks in the Meraki Dashboard:

Screenshot 2022-04-20 at 17.32.30.pngFor more information about Cloud Monitoring, please refer to this article



Hybrid Campus LAN Architecture with Cloud Management

Please refer to the following proposed architecture diagram as a reference for this CVD:

Hybrid Campus HLD-2.png

To achieve a robust, reliable, high speed and Future Proof Campus LAN, the following components are part of this architecture:

Component SKU Capabilities Management Platform Integrations

Wireless LAN



MR55-HW (Or MR56/57) with LIC-ADV

And

C9166-MR (Running Meraki persona) with LIC-ADV

WiFi6 High-density Wireless Access points

mGig uplinks

Adaptive Policy

Meraki Dashboard



Cisco ISE (Optional)

Azure Active Directory (Optional)



Access Switches



MS390-24P and LIC-MS390-24A

And

C9300-24P (migrated1) with C9300-NM-8X and LIC-MS390-24A

Physical Stacking  with StackPower

Upto 40G Uplinks

Layer 3 capabilities

Adaptive Policy

208 Gbps switching capacity

Meraki Dashboard



Cisco ISE (Optional)



Collapsed2 Core Switches



C9500-24Y4C (Monitor Only)

Upto 100G Uplinks

Secure segmentation with SD-Access

MACSec

6.4 TB switching capacity

Monitor Only in Meraki Dashboard





WAN Edge and UTM



MX250 in warm-spare configuration with LIC-MX250-SDW3

OR

A Viptela SD-WAN solution

10G SFP+ WAN

10G SFP+ LAN

1G SFP LAN

Security (UTM) and SD-WAN

4 Gbps Firewall Throughput

2 Gbps SD-WAN Throughput

Meraki Dashboard







(1) Cloud Migration will be available at the end of 2022

(3) Warm-spare configuration requires only a single license for both MX appliances



Logical Architecture

This document will provide three options to design this hybrid architecture from a logical standpoint which are outlined below each with its own characteristics:

Layer 2 Access with Native VLAN 1

This option assumes that your STP domain is extended all the way to your core layer. It offers great flexibility in terms of network segments as you can have your VLANs spanning over the different stacks/closets. However, the STP configuration and tuning is crucial since the Catalyst platforms can run different STP protocols than the Meraki MS390 switches.

Pros:

  • Flexibility in your VLAN design
  • Facilitates Wireless Roaming across the whole campus
  • Easier to deploy and consistent configuration across the entire Campus LAN

Cons

  • Non-deterministic route failover
  • Slow convergence
  • STP can be tricky given that the Hybrid Campus LAN consists of different switching platforms
  • The possibility of VLAN hopping



Layer 2 Access without Native VLAN 1

This option is similar to the above except that VLAN 1 does not exist and the default Native VLAN 1 is replaced with another non-trivial VLAN assignment which can be considered a more preferable option for customers as its separate from the Management VLAN

Pros:

  • Flexibility in your VLAN design
  • Facilitates Wireless Roaming across the whole campus
  • Easier to deploy and consistent configuration across the entire Campus LAN
  • Minimize the risk of VLAN hopping

Cons

  • Non-deterministic route failover
  • Slow convergence
  • STP can be tricky given that the Hybrid Campus LAN consists of different switching platforms

Please note that the recommended spanning tree protocol for hybrid campus is Multiple Spanning Tree Protocol since it eliminates configuration and troubleshooting issues on the different platforms. As such, if you configure other protocols on (e.g. PVST) on your network then please note that VLAN 1 is going to be essential as backward compatible BPDUs only run in VLAN 1

Layer 3 Access

This option assumes that your OSPF domain is extended all the way to your core layer and thus there is no need to rely on STP between your Access and Core for convergence. It offers fast convergence since it relies on ECMP rather than STP layer 2 paths. However, it doesn't offer great flexibility in your VLAN design as each VLAN cannot span between multiple stacks/closets.

Pros:

  • Deterministic route failover
  • Fast convergence
  • Relies on either stacking or gateway redundancy at upper layers

Cons:

  • VLANs cannot span multiple stacks/closets
  • Your backbone area size can be unmanageable
  • Layer 3 roaming is not possible without a concentrator

This CVD offers the design and configuration guidelines for ALL options above.



Hybrid Campus LAN Planning, Design and Configuration

Planning

The following section provides information on planning your solution and ensuring that you have a successful deployment. This will include gathering the design requirements and planning for your Hybrid Campus LAN architecture based on your own requirements.

Prior to proceeding to plan for your deployment, please refer to the Campus LAN Design Best Practices Guide which can be used to guide you through the planning phase of Hybrid Campus LAN.

Meraki Cloud Administration and Management

  1. If you don't have an account on the Meraki Dashboard, create one following these steps
  2. Claim your order(s) or serial number(s) into your Meraki Dashboard account
  3. Add your devices to existing networks or create new networks as required
  4. Configure firmware upgrades for your network(s) with latest Stable or RC releases for each device type (Please check the firmware changelog for platform-specific details
  5. Configure your network(s) with the correct timezone from Network-wide > Configure > General  (This is key for reporting and firmware upgrades
  6. Configure your network(s) with the desired upgrade date and time
  7. Configure the MR upgrade behavior as desired
  8. Ensure that your Campus LAN has access to the internet for management purposes
  9. Ensure that Meraki Cloud is accessible and that all required ports are opened where applicable (information can be found in Dashboard)
  10. Ensure that there is sufficient bandwidth for firmware upgrades as they tend to be large in size
  11. Ensure that only current administrators are added with the correct permissions on the Meraki dashboard (unless SAML is configured for Single Sign-on)
  12. If using Single sign-on integration with Meraki dashboard, please ensure that login to dashboard is scoped such that administrators have the correct level of access where applicable (e.g Per network, Per switch port, etc). For more information about dashboard access roles, please refer to the following article
  13. In case of SAML SSO, It is still required to have one valid administrator account with full rights configured on the Meraki dashboard. However, It is recommended to have at least two accounts to avoid being locked out from dashboard
  14. Where applicable, ensure that the designated Management VLAN has access to DHCP (at least during initial bootup before assigning a static IP address) and also to the internet

Please note that all switches within the same network will use the same Management VLAN unless changed statically on a per switch bases

Radius Integration (e.g Cisco ISE)

  1. If using an external Radius server (e.g Cisco ISE), then ensure that the network segment where ISE is hosted can access the Management VLAN configured on your network devices (or the Alternate Management Interface on MR and/or MS if configured and where applicable)
  2. Ensure that all required ports are opened where applicable (e.g. 1812, 1813, etc)

It is recommended to access the Radius server via VPN as the Radius traffic sourced from Meraki devices is not encrypted.

Active Directory Integration

  1. If using an external identity source (e.g Active Directory), then ensure that the network segment where the AD is hosted can access the Management VLAN configured on your network devices (or the Alternate Management Interface  on MR and/or MS if configured with Radius integration)

  2. Ensure that all required ports are opened where applicable (e.g. 3268, 389, etc)

It is recommended to access the Active Directory server via VPN as the traffic is not encrypted (only port 3268 is supported).

Catalyst onboarding for Cloud Monitoring (C9200/9300/9500)

For ease of management, Customers onboard Cisco C9200/9300/9500 switches/stacks for Cloud Monitoring such that they can be available in the Meraki Dashboard in Monitor only mode. This process enables dashboard monitoring on these switches/stacks and selected configuration parameters will be visible in the Meraki Dashboard.

Supported platforms
  • C9200

  • C9200L

  • C9300

  • C9300L

  • C9300X

  • C9500

Pre-requisites

Please ensure the following prior to onboarding a switch/stack for Cloud Monitoring:

  • It is a supported model
  • It has the minimum required firmware (17.3.1)
  • It must have a SVI or routed interface that has access to the Internet on port TCP 443
  • It must have a valid DNS server
  • It must have a valid DNA subscription
Onboarding Catalyst devices for Cloud Monitoring

The onboarding process for the C9500 core switches is out of scope for the purposes of this CVD. Please refer to the following article for a step by step guide on onboarding Catalyst for Cloud Monitoring.

Switch Status on Meraki Dashboard

Once the device has been onboarded for Meraki dashboard monitoring, it should come online on dashboard after several minutes and also the network topology will show all switches in Monitor Only mode.

Screenshot 2022-04-21 at 11.47.02.png

Screenshot 2022-04-21 at 11.47.23.png

Design and Configuration Guidelines

Option 1 -  STP Based Convergence with Native VLAN 1

Overview

This design option allows for flexibility in terms of VLAN and IP addressing across the Campus LAN such that the same VLAN can span across multiple access switches/stacks thanks to Spanning Tree that will ensure that you have a loop-free topology. However, this method of convergence is considered non-deterministic since the path of execution isn't fully determined (unlike Layer 3 routing protocols for example). As a result, convergence can be slow and STP must be tuned to provide best results.

This design is based on consistent STP protocols running in this Hybrid Campus, as such Multiple Spanning Tree Protocol (MST, aka 802.1s) will be configured since it is supported on both the Meraki and Catalyst platforms.

It is recommended to run the same STP protocol across all switches (MST in this case). Running any other protocol on Catalyst (e.g. PVST) can introduce undesired behaviour and can be more difficult to troubleshoot.

You should consider this option if you need a consistent VLAN assignment across all switching closets. Here are some things to consider about this design option:

Pros:

  • Flexibility in your VLAN design
  • Facilitates Wireless Roaming across the whole campus
  • Easier to deploy and consistent configuration across the entire Campus LAN

Cons

  • Non-deterministic route failover
  • Slow convergence
  • STP can be tricky given that the Hybrid Campus LAN consists of different switching platforms

 Since MST will be used as a loop prevention mechanism, all SVIs will be created on the collapsed core layer.

Logical Architecture

The following diagram shows the logical architecture for a STP based convergence Campus LAN Design with hybrid components:

Hybrid Campus HLD - Option 1 (Logical revised) (2).png

Physical Architecture

The following diagram shows the physical architecture and port list for this design:

Hybrid Campus HLD - Option 1 (Physical revised).png

Assumptions

The following assumptions has been taken into account:

  • It is assumed that Wireless roaming is required everywhere in the Campus
  • It is assumed that VLANs are spanning across multiple zones/closets
  • Corporate SSID (Broadcast in all zones/areas) users are assigned VLAN 10 on all APs. CoA VLAN is VLAN 30 (Via Cisco ISE)
  • BYOD SSID (Broadcast in all zones/areas) users are assigned VLAN 20 on all APs. CoA VLAN is VLAN 30 (Via Cisco ISE)
  • Guest SSID (Broadcast in all zones/areas) users are assigned VLAN 30 on all APs
  • IoT SSID (Broadcast in all zones/areas) users are assigned VLAN 40 on all APs
  • Access Switches will be running in Layer 2 mode (No SVIs or DHCP)
  • MS390 Access Switches physically stacked together
  • Converted C9300 Access Switches physically stacked together
  • C9500 Core Switches with Stackwise-virtual stacking using SVLs
  • Access Switch uplinks are in trunk mode with native VLAN = VLAN 1 (Management VLAN*)
  • STP root is at Distribution/Collapsed-core
  • Distribution/Collapsed-core uplinks are in Trunk mode with Native VLAN = VLAN 1 (Management VLAN)
  • All VLAN SVIs are hosted on the core layer
  • Network devices will be assigned fixed IPs from the management VLAN DHCP pool. Default Gateway is 10.0.1.1

The client serving SVIs (offering DHCP services) were configured in this case on the C9500 Core Stack. However, it is also possible to configure them on the WAN Edge MX instead. In this case, please remember to configure the C9500 Core Stack uplinks AND the MX Downlinks with the appropriate VLANs in the Allowed VLAN list.

Whilst it is possible to configure a different Management VLAN than VLAN 1, the design and configuration guidelines in the coming section will assume that VLAN 1 is the Management VLAN. Please refer to this separate section should you wish to configure a different Management VLAN for your Campus LAN.

Network Segments

Please check the following table for more information about the network segments (e.g. VLANs, SVIs, etc) for this design:

Network Segment VLAN ID Subnet Default Gateway Notes
Management 1 10.0.1.0/24 10.0.1.1 SVI hosted on edge MX

Corporate Devices

(Wireless & Wired)

10



10.0.10.0/24



10.0.10.1



SVI hosted on core switches



BYOD Wireless Devices 20 10.0.20.0/24 10.0.20.1 SVI hosted on core switches
Guest Wireless Devices 30 10.0.30.0/24 10.0.30.1 SVI hosted on core switches
IoT Wireless Devices 40 10.0.40.0/24 10.0.40.1 SVI hosted on core switches

Please size your subnets based on your own requirements. The above table is for illustration purposes only

In this example, the Management VLAN has been created on the Edge MX. Alternatively, you can create the SVI on the C9500 Core Stack.

Quality of Service
Application MR Access Switches Core Switches MX Appliance

SIP (Voice)



EF

DSCP 46

AC_Vo

Trust incoming values

DSCP 46

CoS 5

Trust incoming values



EF

DSCP 45

LLQ

Unlimited

Webex and Skype



AF41

DSCP 34

AC_VI

Trust incoming values

DSCP 34

CoS 4

Trust incoming values



AF41

DSCP 34

High Priority

All Video and Music



AF21

DSCP 18

AC_BE

Trust incoming values

DSCP 18

CoS 2

Trust incoming values



AF21

DSCP 18

Medium Priority

5Mbps / Client

Software Updates



AF11

DSCP 10

AC_BK

Trust incoming values

DSCP 10

CoS 1

Trust incoming values



AF11

DSCP 10

Low Priority

10Mbps / Client

Device List
Device Name Management IP address Notes
MX250 Primary WAN Edge 10.0.1.1 warm-spare
MX250 Spare WAN Edge
C9500-24YCY C9500-01 10.0.1.2 Stackwise Virtual (C9500-Core-Stack)
C9500-24YCY C9500-02
MS390-24P MS390-01 10.0.1.3 Physical Stacking (Stack1-MS390)
MS390-24P MS390-02
C9300-24P C9300-01 100.1.4 Physical Stacking (Stack2-C9300)
C9300-24P C9300-02
MR55 AP1_Zone1 10.0.1.5 Tag = Zone1
C9166 (eq MR57) AP2_Zone1 10.0.1.6 Tag = Zone1
MR55 AP3_Zone2 10.0.1.7 Tag = Zone2
C9166 (eq MR57) AP4_Zone2 10.0.1.8 Tag = Zone2
Access Policies
Access Policy Name Purpose Configuration Notes

Wired-1x



802.1x Authentication via Cisco ISE for wired clients that support 802.1x



Authentication method = my Radius server

Radius CoA = enabled

Host mode = Single-Host

Access Policy type = 802.1x

Guest VLAN = 30

Failed Auth VLAN = 30

Critical Auth VLAN = 30

Suspend Port Bounce = Enabled

Voice Clients = Bypass authentication

Walled Garden = enabled



Cisco ISE authentication and posture checks



Wired-MAB



MAB Authentication via Cisco ISE for wired clients that do not support 802.1x



Authentication method = my Radius server

Radius CoA = disabled

Host mode = Single-Host

Access Policy type = MAC authentication bypass

Guest VLAN = 30

Failed Auth VLAN = 30

Critical Auth VLAN = 30

Suspect Port Bounce = Enabled

Voice Clients = Bypass authentication

Walled Garden = disabled

Cisco ISE authentication



The above Access Policies are for illustration purposes only. Please configure your Access Policies as required.



Port List
Device Name Port  Far-end Port Details Notes
Primary WAN Edge / Spare WAN Edge 1 WAN1   VIP1
Primary WAN Edge / Spare WAN Edge 2 WAN2   VIP2
Primary WAN Edge  19 9500-01 (Port Twe1/0/1) Trunk (Native VLAN 1) Downlink
20 9500-02 (Port Twe2/0/1) Trunk (Native VLAN 1) Downlink
Spare WAN Edge 19 9500-01 (Port Twe1/0/2) Trunk (Native VLAN 1) Downlink
20 9500-02 (Port Twe2/0/2) Trunk (Native VLAN 1) Downlink
9500-01

Twe1/0/1



Primary WAN Edge (Port 19)



switchport access vlan 1

auto qos trust dscp

policy static sgt 2 trusted

Uplink



Twe1/0/2



Spare WAN Edge (Port 19)



switchport access vlan 1

auto qos trust dscp

policy static sgt 2 trusted

Uplink



9500-02

Twe2/0/1

Primary WAN Edge (Port 20)



switchport access vlan 1

auto qos trust dscp

policy static sgt 2 trusted

Uplink



Twe2/0/2

Spare WAN Edge (Port 20)



switchport access vlan 1

auto qos trust dscp

policy static sgt 2 trusted

Uplink







9500-01



Twe1/0/23



MS390-01 (Port 1)



switchport trunk native vlan 1

switchport trunk allowed vlans 1,10,20,30,40

channel-group 1 mode active

spanning-tree guard root

auto qos trust dscp

policy static sgt 2 trusted

Downlink



Twe1/0/24



C9300-01 (Port 1)



switchport trunk native vlan 1

switchport trunk allowed vlans 1,10,20,30,40

channel-group 2 mode active

spanning-tree guard root

auto qos trust dscp

policy static sgt 2 trusted

Downlink







9500-02



Twe2/0/23



MS390-02 (Port 1)



switchport trunk native vlan 1

switchport trunk allowed vlans 1,10,20,30,40

channel-group 1 mode active

spanning-tree guard root

auto qos trust dscp

policy static sgt 2 trusted

Downlink



Twe2/0/24



C9300-02 (Port 1)



switchport trunk native vlan 1

switchport trunk allowed vlans 1,10,20,30,40

channel0group 2 mode active

spanning-tree guard root

auto qos trust dscp

policy static sgt 2 trusted

Downlink



9500-01

Hu1/0/25

C9500-02 (Port Hu2/0/26) stackwise-virtual link 1 Stackwise Virtual

Hu1/0/26

C9500-02 (Port Hu2/0/25) stackwise-virtual link 1 Stackwise Virtual
9500-02

Hu2/0/25

C9500-01 (Port Hu1/0/26) stackwise-virtual link 1 Stackwise Virtual

Hu2/0/26

C9500-01 (Port Hu1/0/25) stackwise-virtual link 1 Stackwise Virtual

MS390-01

MS390-02

C9300-01

C9300-02

5-8



Wired Clients



Access (Data VLAN 1)

Access Policy = Wired-1x

PoE Enabled

STP BPDU Guard

Tag = Wired Clients 802.1x

AdP: Corp



For wired clients supporting 802.1x



MS390-01

MS390-02

C9300-01

C9300-02

9-12



Wired Clients



Access (Data VLAN 1)

Access Policy = MAB

PoE Enabled

STP BPDU Guard

Tag = Wired Clients MAB

AdP: Corp

For wired clients that do not support 802.1x

MS390-01

MS390-02

C9300-01

C9300-02

13-16



MR

Trunk (Native VLAN 1)

PoE Enabled

STP BPDU Guard

Tag = MR WLAN

Peer SGT Capable

AdP: Infrastructure

Allowed VLANs: 1,10,20,30,40





MS390-01



1



9500-01 (Port Twe1/0/23)



Trunk (Native VLAN 1)

PoE Disabled

Name: Core 1

Tag = Uplink

Peer SGT Capable

AdP: Infrastructure

Allowed VLANs: 1,10,20,30,40



MS390-02



1



9500-02 (Port Twe2/0/23)



Trunk (Native VLAN 1)

PoE Disabled

Name: Core 2

Tag = Uplink

Peer SGT Capable

AdP: Infrastructure

Allowed VLANs: 1,10,20,30,40



C9300-01



C9300-01 / C9300-NM-8X / 1



9500-01 (Port Twe1/0/24)



Trunk (Native VLAN 1)

PoE Disabled

Name: Core 1

Tag = Uplink

Peer SGT Capable

AdP: Infrastructure

Allowed VLANs: 1,10,20,30,40



C9300-02



C9300-02 / C9300-NM-8X / 1



C9500-02 (Port Twe2/0/24)



Trunk (Native VLAN 1)

PoE Disabled

Name: Core 2

Tag = Uplink

Peer SGT Capable

AdP: Infrastructure

Allowed VLANs: 1,10,20,30,40



Wireless SSID List
SSID Name Broadcast Configuration Notes Firewall & Traffic Shaping

Acme Corp



All APs



Association = Enterprise with my Radius server

Encryption = WPA2 only

Splash Page = Cisco ISE

Radius CoA = Enabled

SSID mode = Bridge mode

VLAN Tagging = 10 (ISE Override)

AdP Group = 10:Corp

Radius override = Enabled

Mandatory DHCP = Enabled

Layer 2 isolation = Disabled

Allow Clients access LAN = Allow

Traffic Shaping = Enabled with default settings

Cisco ISE Authentication and posture checks (172.31.16.32/1812)

Layer 2 Isolation = Disabled

Allow Access to LAN = Enabled

Per-Client Bandwidth Limit = 50Mbps

Per-SSID Bandwidth Limit = Unlimited

Enable Default Traffic Shaping rules

SIP - EF (DSCP 46)

Software Updates - AF11 (DSCP 10)

Webex & Skype - AF41 (DSCP 34)

All Video and Music - AF21 (DSCP 18)



Acme BYOD



All APs



Association = Enterprise with my Radius server

Encryption = WPA2 only

802.11w = Enabled

Splash Page = Cisco ISE

SSID mode = Bridge mode

VLAN Tagging = 20

AdP Group = 20:BYOD

Radius override = Disabled

Mandatory DHCP = Enabled

Layer 2 isolation = Disabled

Allow Clients access LAN = Allow

Traffic Shaping = Enabled with default settings

Cisco ISE Authentication (via Azure AD) and posture checks.

Dynamic GP assignment (Radius attribute = Airospace-ACL-NAME)

Layer 2 Isolation = Disabled

Allow Access to LAN = Enabled

Per-Client Bandwidth Limit = 50Mbps

Per-SSID Bandwidth Limit = Unlimited

Enable Default Traffic Shaping rules

SIP - EF (DSCP 46)

Software Updates - AF11 (DSCP 10)

Webex & Skype - AF41 (DSCP 34)

All Video and Music - AF21 (DSCP 18)

Guest



All APs



Association = Enterprise with my Radius server

Encryption = WPA1 and WPA2

802.11w = Enabled

Splash Page = Click-Through

SSID mode = Bridge mode

VLAN Tagging = 30

AdP Group = 30:Guest

Radius override = Disabled

Mandatory DHCP = Enabled

Layer 2 isolation = Enabled

Allow Clients access LAN = Deny

Per SSID limit = 100Mbps

Traffic Shaping = Enabled with default settings

Meraki Authentication

Layer 2 Isolation = Enabled

Allow Access to LAN = Disabled

Per-Client Bandwidth Limit = 5Mbps

Per-SSID Bandwidth Limit = 100Mbps

Enable Default Traffic Shaping rules

SIP - EF (DSCP 46)

Software Updates - AF11 (DSCP 10)

Webex & Skype - AF41 (DSCP 34)

All Video and Music - AF21 (DSCP 18)

Acme IoT



All APs



Association = identity PSK with Radius

Encryption = WPA1 and WPA2

802.11r = Disabled

802.11w = Disabled

Splash Page = None

Radius CoA = Disabled

SSID mode = Bridge mode

VLAN Tagging = 40

AdP Group = 40:IoT

Radius override = Disabled

Mandatory DHCP = Enabled

Allow Clients access LAN = Deny

Per SSID limit = 10Mbps

Traffic Shaping = Enabled with default settings

Cisco ISE is queried at association time to obtain a passphrase for a device based on its MAC address.

Dynamic GP assignment (Radius attribute Filter-Id)



Layer 2 Isolation = Disabled

Allow Access to LAN = Enabled

Per-Client Bandwidth Limit = 5Mbps

Per-SSID Bandwidth Limit = Unlimited

Enable Default Traffic Shaping rules

SIP - EF (DSCP 46)

Software Updates - AF11 (DSCP 10)

Webex & Skype - AF41 (DSCP 34)

All Video and Music - AF21 (DSCP 18)

The above configuration is for illustration purposes only. Please configure your SSIDs based on your own requirements (mode, IP assignment, traffic shaping, etc)

Please note that Adaptive Policy on MR requires MR-ADV license. For more information about the requirements, please refer to this document



Group Policies
Group Policy Name Purpose Configuration Notes
BYOD For BYOD users to limit bandwidth per client and restrict access as desired. GP will be dynamically assigned based on Radius attribute

Name = BYOD

Schedule = disabled

Bandwidth = 10Mbps

Firewall and Traffic Shaping = None

Layer 3 FW = None

Layer 7 FW = Block All Email

VLAN = 20

Splash = N/A



The above Group Policies are for illustration purposes only. Please configure your Group Policies as required. To configure your Radius server to assign a dynamic Group Policy please refer to this article



Configuration and Implementation Guidelines

It is assumed that by this stage, Catalyst devices have been added to dashboard for either Monitoring (e.g. C9500) or Management (e.g. C9300). For more information, please refer to the above section.

Before proceeding, please make sure that you have the appropriate licenses claimed into your dashboard account.

  1. Login to your dashboard account (or create an account if you don't have one)
  2. Navigate to Organization > Configure > Inventory
  3. For Co-term license model, click on Claim. And for PDL, please click on AddScreenshot 2022-05-05 at 15.09.57.pngScreenshot 2022-05-05 at 15.12.54.png
  4. Enter the order and/or serial number(s) to claim the devices into your account. For PDL, click Next then please choose to add them to Inventory (Do not add them to a network)
  5. Create a Dashboard Network; Navigate to Organization > Configure > Create network to create a network for your Campus LAN (Or use an existing network if you already have one). If you are creating a new network, please choose "Combined" as this will facilitate a single topology diagram for your Campus LAN. Choose a name (e.g. Campus) and then click Create network
    • Screenshot 2022-05-05 at 15.20.21.pngScreenshot 2022-05-05 at 15.46.32.png
  6. Dashboard Network Settings; Navigate to Network-wide > Configure > General and choose the settings for your network (e.g. Timezone, Traffic Analytics, firmware upgrade day/time, etc)
    • Screenshot 2022-05-05 at 15.43.34.pngScreenshot 2022-05-05 at 15.44.10.pngScreenshot 2022-05-05 at 15.44.41.png
  7. Schedule Firmware Upgrade; Navigate to Organization > Monitor > Firmware upgrades to select the firmware settings for your devices such that devices upgrade once they connect to dashboard. Select the device type then click on Schedule upgrade
  8. Add Devices to a Dashboard Network; Navigate to Organization > Configure > Inventory:
    • For Co-term licensing model, select the MS390 and C9300 switches and the Primary WAN Edge then click on Add then choose the Network Campus
    • For PDL licensing model, select the MS390 and C9300 switches and the Primary WAN Edge then click on Change network assignment and then choose the Network Campus
    • Please DO NOT add the Secondary WAN Edge device at this stage
  9. Rename MX Security Appliance; Navigate to Security & SD-WAN > Monitor > Appliance status then click on the edit button to rename the MX to Primary WAN Edge then click on Save
    • Screenshot 2022-05-05 at 16.06.47.png
  10. MX Connectivity; Plug in your WAN uplink(s) on the Primary WAN Edge MX then power it on and wait for it to come online on dashboard. This might take a few minutes as the MX will download its firmware and configuration. Navigate to Security & SD-WAN > Monitor > Appliance status and verify that the MX has come online and that its firmware and configuration is up to date.Screenshot 2022-05-05 at 23.02.02.pngScreenshot 2022-05-06 at 09.37.15.png
  11. Rename Access Switches; Navigate to Switching > Monitor > Switches then click on each MS390 and C9300 switch and then click on the edit button on top of the page to rename it per the above table then click on Save such that all your switches have their designated names
    • new switches.jpg
  12. Rename MR APs; Navigate to Wireless > Monitor > Access points then click on each AP and then click on the edit button on top of the page to rename it per the above table then click on Save such that all your APs have their designated names
  13. MR AP Tags; Navigate to Wireless > Monitor >Access points then click on each AP and then click on the edit button next to TAGS to add Tags to your AP per the above table then click on Save such that all your APs have their designated tags
    • Screenshot 2022-05-05 at 16.16.00.png

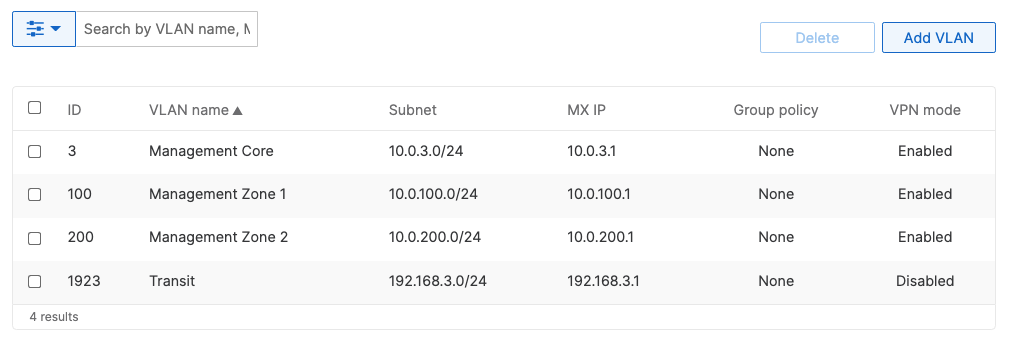

  14. MX Addressing & VLANs; Navigate to Security & SD-WAN > Configure > Addressing & VLANs, and in the Deployment Settings menu select Routed mode. Further down the page on the Routing menu, click on VLANs then click on Add VLAN to add your management VLAN then click on Create. Then for the per-port VLAN settings, select your downlink ports (19 and 20) and click on Edit and configure them as access with VLAN 1 and click on Update. Finally, click on Save at the bottom of the page.
    • New Deployment Settings.pngModify VLAN 1.pngModify VLAN 2.pngScreenshot 2022-05-18 at 09.50.52.pngScreenshot 2022-05-05 at 16.25.19.png
  15. Campus LAN Static Routes; Create Static Routes for your Campus network by navigating further down the page to Static routes then click on Add Static Route. Start by adding your Corporate LAN subnet then click on Update and then add static routes to all other subnets (e.g. BYOD, Guest and IoT). Finally, click on Save at the bottom of the page. (The Next hop IP that you have used here will be used to create a fixed assignment for the Core Stack later in DHCP settings)
    • Screenshot 2022-05-17 at 14.32.07.pngScreenshot 2022-05-17 at 14.30.14.png
  16. Optional - If you are accessing any resources over Meraki SD-WAN, please navigate to Security & SD-WAN > Configure > Site-to-site VPN and enable VPN based on your topology and traffic flow requirements. (In this case we will configure this Campus as Spoke with Split Tunneling
    • Choose Type: Spoke then click on Add a hub and select your hub site where you need access to resources via VPN. You can also add multiple hubs for resiliency. To choose Split Tunneling, please leave the box next to the Hub unticked as shown below. Screenshot 2022-05-05 at 16.49.11.png
    • Under VPN Settings, choose which subnet to be Enabled in VPN (e.g. Management VLAN will be required for Radius authentication purposes as the MR/MS390/C9300 devices will reach out to Cisco ISE using their management IP). Any Subnet that needs to access resources via VPN must be Enabled otherwise keep it as Disabled.
    • Screenshot 2022-05-05 at 16.42.00.png
    • Finally, click on Save at the bottom of the page
    • On the Hub site, please make sure to advertise the subnets that are required to be reachable via VPN. Navigate to Security & SD-WAN > Configure > Site-to-site VPN then add a local network then click Save at the bottom of the page (Please make sure that you are configuring this on the Hub's dashboard networkScreenshot 2022-05-05 at 22.47.22.png
  17. Optional - Verify that your VPN has come up by selecting your Campus LAN dashboard network from the Top-Left Network drop down list and then navigate to Security & SD-WAN > Monitor >VPN status then check the status of your VPN peers. Next, navigate to Security & SD-WAN > Monitor > Route table and check the status of your remote subnets that are reachable via VPN. You can also verify connectivity by pinging a remote subnet (e.g. 172.31.16.32 which is Cisco ISE) by navigating to Security & SD-WAN > Monitor > Appliance status then click on Tools and ping the specified IP address (Please note that the MX will choose the highest IP participating in VPN by default as the source)Screenshot 2022-05-05 at 17.07.08.pngScreenshot 2022-05-05 at 17.05.39.pngScreenshot 2022-05-25 at 14.33.18.png

    Please note that in order to ping a remote subnet, you must either have BGP enabled or have static routes at the far-end pointing back to the Campus LAN local subnets.

    In this example, the VPC in AWS has been configured with a Route Entry to route 10.0.1.0/24 via the vMX deployed in AWS that has a VPN tunnel back to the Campus LAN site.

    Screenshot 2022-05-05 at 17.17.43.png

    If the remote VPN peer (e.g. AWS) is configured in Routed mode, the static route is not required since traffic will always be NAT'd to a local reachable IP address.

  18. SD-WAN & Traffic Shaping Configuration; To configure Traffic Shaping settings for your Campus LAN site. Navigate to Security & SD-WAN > Configure > SD-WAN & Traffic Shaping to configure your preferred settings. For the purpose of this CVD, the default traffic shaping rules will be used to mark traffic with a DSCP tag without policing egress traffic (except for traffic marked with DSCP 46) or applying any traffic limits. (Please adjust these settings based on your requirements such as traffic limits or priority queue values. For more information about traffic shaping settings on the MX devices, please refer to the following article)
    • Screenshot 2022-05-05 at 17.09.49.pngScreenshot 2022-05-05 at 17.10.01.pngScreenshot 2022-05-05 at 17.09.41.png
  19. Optional - Configure Threat Protection (Requires Advanced License or above) for your Campus LAN site. Navigate to Security & SD-WAN > Configure > Threat Protection and choose the settings that meet your site requirements. Please see the following configuration example: Screenshot 2022-05-05 at 22.54.57.png
  20. Click on Save at the bottom of the page
  21. Optional - Configure Content Filtering Settings (Requires Advanced License or above) for your Campus LAN site. Navigate to Security & SD-WAN > Configure > Content filtering and choose the settings that meet your site requirements. Please see the following configuration example: Screenshot 2022-05-05 at 23.06.06.pngScreenshot 2022-05-06 at 09.13.25.png
  22. Click on Save at the bottom of the page
  23. Core Switch Uplinks; On the Catalyst 9500 core switches, Connect their uplinks to the Primary WAN Edge MX and power them both on.
  24. Core Switch Network Access; Connect to first C9500 switch via console and configure it with the following commands:
    • Switch>en
      Switch#conf t
      Enter configuration commands, one per line.  End with CNTL/Z.
      Switch(config)#hostname 9500-01
      9500-01(config)#ip domain name meraki-cvd.local
      9500-01(config)#cdp run
      9500-01(config)#lldp run
      9500-01(config)#stackwise
      Please reload the switch for Stackwise Virtual configuration to take effect
      Upon reboot, the config will be part of running config but not part of start up config.
      9500-01(config-stackwise-virtual)#domain 1
      9500-01(config)#exit
      9500-01(config)#interface Twe1/0/1
      9500-01(config-if)#switchport mode access
      9500-01(config-if)#switchport access vlan 1
      9500-01(config-if)#no shut
      9500-01(config-if)#exit
      9500-01(config)#interface Twe1/0/2
      9500-01(config-if)#switchport mode access
      9500-01(config-if)#switchport access vlan 1
      9500-01(config-if)#no shut
      9500-01(config-if)#exit
      9500-01(config)#interface vlan 1
      9500-01(config-if)#ip address dhcp
      9500-01(config-if)#no shut
      9500-01(config-if)#end
      9500-01#
      9500-01#sh ip int brief
      Interface              IP-Address      OK? Method Status                Protocol
      Vlan1                  10.0.1.110      YES DHCP   up                    up
      GigabitEthernet0/0     unassigned      YES NVRAM  down                  down
      TwentyFiveGigE1/0/1    unassigned      YES unset  up                    up
      TwentyFiveGigE1/0/2    unassigned      YES unset  up                    up
      9500-01#ping 8.8.8.8
      Type escape sequence to abort.
      Sending 5, 100-byte ICMP Echos to 8.8.8.8, timeout is 2 seconds:
      !!!!!
      Success rate is 100 percent (5/5), round-trip min/avg/max = 4/4/5 ms
      9500-01#ping cisco.com
      Type escape sequence to abort.
      Sending 5, 100-byte ICMP Echos to 72.163.4.185, timeout is 2 seconds:
      !!!!!
      Success rate is 100 percent (5/5), round-trip min/avg/max = 109/109/109 ms
      9500-01#switch 1 renumber 1
      9500-01#switch priority 5
      9500-01#wr mem
      Building configuration...
      [OK]

  25. Core Switch Network Access; Connect to the second C9500 switch via console and configure it with the following commands:
    • Switch>en
      Switch#conf t
      Enter configuration commands, one per line.  End with CNTL/Z.
      Switch(config)#hostname 9500-02
      9500-02(config)#ip domain name meraki-cvd.local
      9500-01(config)#cdp run
      9500-01(config)#lldp run
      9500-02(config)#stackwise
      Please reload the switch for Stackwise Virtual configuration to take effect
      Upon reboot, the config will be part of running config but not part of start up config.
      9500-02(config-stackwise-virtual)#domain 1
      9500-02(config)#exit
      9500-02(config)#interface Twe1/0/1
      9500-01(config-if)#switchport mode access
      9500-02(config-if)#switchport access vlan 1
      9500-02(config-if)#no shut
      9500-02(config-if)#exit
      9500-02(config)#interface Twe1/0/2
      9500-01(config-if)#switchport mode access
      9500-02(config-if)#switchport access vlan 1
      9500-02(config-if)#no shut
      9500-02(config-if)#exit
      9500-02(config)#interface vlan 1
      9500-02(config-if)#ip address dhcp
      9500-02(config-if)#no shut
      9500-02(config-if)#end
      9500-02#
      9500-02#sh ip int brief
      Interface              IP-Address      OK? Method Status                Protocol
      Vlan1                  10.0.1.111      YES DHCP   up                    up
      GigabitEthernet0/0     unassigned      YES NVRAM  down                  down
      TwentyFiveGigE1/0/1    unassigned      YES unset  up                    up
      TwentyFiveGigE1/0/2    unassigned      YES unset  up                    up
      9500-02#ping 8.8.8.8
      Type escape sequence to abort.
      Sending 5, 100-byte ICMP Echos to 8.8.8.8, timeout is 2 seconds:
      !!!!!
      Success rate is 100 percent (5/5), round-trip min/avg/max = 4/4/5 ms
      9500-02#ping cisco.com
      Type escape sequence to abort.
      Sending 5, 100-byte ICMP Echos to 72.163.4.185, timeout is 2 seconds:
      !!!!!
      Success rate is 100 percent (5/5), round-trip min/avg/max = 109/109/109 ms
      9500-02#switch 1 renumber 2
      9500-02#switch priority 1
      9500-02#wr mem
      Building configuration...
      [OK]
  26. SVL Configuration; Now that both C9500 switches have access to the network, proceed to configure the Stackwise Virtual Links per the port list provided above (In this case with using two ports as part of the SVL providing a total stacking bandwidth of 80 Gbps
    • 9500-01(config)#interface HundredGigE1/0/25
      9500-01(config-if)#stackwise-virtual link 1
      9500-01(config-if)#no shut
      9500-01(config-if)#exit
      9500-01(config)#interface HundredGigE1/0/26
      9500-01(config-if)#stackwise-virtual link 1
      9500-01(config-if)#no shut
      9500-01(config-if)#end
      9500-01#wr mem
      Building configuration...
      [OK]
      9500-01#reload
      Proceed with reload? [confirm]

    • 9500-02(config)#interface HundredGigE1/0/25
      9500-02(config-if)#stackwise-virtual link 1
      9500-02(config-if)#no shut
      9500-02(config-if)#exit
      9500-02(config)#interface HundredGigE1/0/26
      9500-02(config-if)#stackwise-virtual link 1
      9500-02(config-if)#no shut
      9500-02(config-if)#end
      9500-02#wr mem
      Building configuration...
      [OK]
      9500-02#reload
      Proceed with reload? [confirm]

  27. Connect Stacking Cables; Whilst the C9500 switches are reloading, connect the stacking cables on both switches
  28. Verify Stackwise Configuration; Please wait for about 10 minutes for the switches to come back up and initialize the stack. Then, connect to the 9500-01 (Stack Master) via console to verify that the stack is operational. The stackwise-virtual link should be U (Up) and R (Ready).
    • 9500-01#show stackwise-virtual
      Stackwise Virtual Configuration:
      --------------------------------
      Stackwise Virtual : Enabled
      Domain Number : 1


      Switch Stackwise Virtual Link Ports
      ------ ---------------------- ------
      1      1                      HundredGigE1/0/25
                                    HundredGigE1/0/26
      2      1                      HundredGigE2/0/25
                                    HundredGigE2/0/26


      9500-01#
      9500-01#show stackwise-virtual link
      Stackwise Virtual Link(SVL) Information:
      ----------------------------------------
      Flags:
      ------
      Link Status
      -----------
      U-Up D-Down
      Protocol Status
      ---------------
      S-Suspended P-Pending E-Error T-Timeout R-Ready
      -----------------------------------------------
      Switch SVL Ports                    Link-Status Protocol-Status
      ------ --- -----                    ----------- ---------------
      1      1   HundredGigE1/0/25        U           R
                 HundredGigE1/0/26        U           R
      2      1   HundredGigE2/0/25        U           R
                 HundredGigE2/0/26        U           R


      9500-01#
      9500-01#show stackwise-virtual bandwidth
      Switch Bandwidth
      ------ ---------
      1       80G
      2       80G


      9500-01#
      9500-01#sh switch
      Switch/Stack Mac Address : b0c5.3c60.fba0 - Local Mac Address
      Mac persistency wait time: Indefinite
                                                   H/W   Current
      Switch#   Role    Mac Address     Priority Version  State
      -------------------------------------------------------------------------------------
      *1       Active   b0c5.3c60.fba0     5      V02     Ready
      2        Standby  40b5.c111.01e0     1      V02     Ready






      9500-01#

  29. Optional - Attach and configure stackwise-virtual dual-active-detection; DAD is a feature used to avoid a dual-active situation within a stack of switches. It will rely on a direct attachment link between the two switches to send hello packets and determine if the active switch is responding or not. Please note that DAD cannot be applied to any SVL links and has to be a dedicated interface. For the purpose of this CVD, interface HundredGigE1/0/27 and HundredGigE2/0/27 will be used for enabling DAD between the two C9500 switches.
    • 9500-01#configure terminal
      9500-01(config)#interface HundredGigE1/0/27
      9500-01(config-if)#stackwise-virtual dual-active-detection
      WARNING: All the extraneous configurations will be removed for HundredGigE1/0/27 on reboot.
      INFO: Upon reboot, the config will be part of running config but not part of start up config.
      9500-01(config-if)#interface HundredGigE2/0/27
      9500-01(config-if)#stackwise-virtual dual-active-detection
      WARNING: All the extraneous configurations will be removed for HundredGigE1/0/27 on reboot.
      INFO: Upon reboot, the config will be part of running config but not part of start up config.
      9500-01(config-if)#end
      9500-01#wr mem
      Building configuration...
      [OK]
      9500-01#reload
      Reload command is being issued on Active unit, this will reload the whole stack
      Proceed with reload? [confirm]Connection to 10.0.1.2 closed by remote host.
      Connection to 10.0.1.2 closed.
      >>
      9500-01#sh stackwise-virtual dual-active-detection
      In dual-active recovery mode: No
      Recovery Reload: Enabled


      Dual-Active-Detection Configuration:
      -------------------------------------
      Switch Dad port Status
      ------ ------------ ---------
      1 HundredGigE1/0/27         up
      2 HundredGigE2/0/27         up


      9500-01#

  30. Configure Multiple Spanning Tree Protocol (802.1s). Connect to the 9500-01 (Stack Master) via console and use the following commands:
    • 9500-01(config)#spanning-tree mst configuration
      9500-01(config-mst)#instance 0 vlan 1
      9500-01(config-mst)#name region1
      9500-01(config-mst)#revision 1
      9500-01(config-mst)#exit
      9500-01(config)#spanning-tree mode mst
      9500-01(config)#spanning-tree mst 0 priority 4096
      9500-01(config)#exit
      9500-01#wr mem
      Building configuration...
      [OK]
      9500-01#

  31. Verify Spanning Tree Configuration (Please note that interface Twe2/0/1 will be in STP blocking state due to the fact that both uplinks are connected to the same MX edge device at this stage)
    • 9500-01#show spanning-tree


      MST0
        Spanning tree enabled protocol mstp
        Root ID    Priority    4096
                   Address     b0c5.3c60.fba0
                   This bridge is the root
                   Hello Time   2 sec  Max Age 20 sec  Forward Delay 15 sec


        Bridge ID  Priority    4096   (priority 4096 sys-id-ext 0)
                   Address     b0c5.3c60.fba0
                   Hello Time   2 sec  Max Age 20 sec  Forward Delay 15 sec


      Interface           Role Sts Cost      Prio.Nbr Type
      ------------------- ---- --- --------- -------- --------------------------------
      Twe1/0/1            Desg FWD 2000      128.193  P2p
      Twe2/0/1            Back BLK 2000      128.385  P2p



      9500-01#
  32. Configure STP Root Guard and UDLD on the Core Stack Downlinks:
    • 9500-01#configure terminal
      Enter configuration commands, one per line.  End with CNTL/Z.
      9500-01(config)#int Twe1/0/23
      9500-01(config-if)#spanning-tree guard root
      9500-01(config-if)#udld port aggressive
      9500-01(config-if)#int Twe1/0/24
      9500-01(config-if)#spanning-tree guard root
      9500-01(config-if)#udld port aggressive
      9500-01(config-if)#int Twe2/0/23
      9500-01(config-if)#spanning-tree guard root
      9500-01(config-if)#udld port aggressive
      9500-01(config-if)#int Twe2/0/24
      9500-01(config-if)#spanning-tree guard root
      9500-01(config-if)#udld port aggressive
      9500-01(config-if)#end
      9500-01#wr mem
      Building configuration...
      [OK]
      9500-01#

  33. Optional - STP Hygiene; It is recommended to configure STP Root Guard on all C9500 Core Stack downlinks to avoid any new introduced downstream switches from claiming root bridge status:
    • 9500-01#configure terminal
      Enter configuration commands, one per line.  End with CNTL/Z.
      9500-01(config)#define interface-range stp-protect TwentyFiveGigE1/0/3 - 22
      9500-01(config)#interface range macro stp-protect
      9500-01(config-if-range)#spanning-tree guard root
      9500-01(config-if-range)#exit
      9500-01(config)#define interface-range stp-protect2 TwentyFiveGigE2/0/3 - 22
      9500-01(config)#interface range macro stp-protect2
      9500-01(config-if-range)#spanning-tree guard root
      9500-01(config-if)#end
      9500-01#wr mem
      Building configuration...
      [OK]
      9500-01#
  34. Optional - STP Hygiene; It is recommended to configure STP Loop Guard on all C9500 Core Stack un-used stacking links:
    • 9500-01#configure terminal
      Enter configuration commands, one per line.  End with CNTL/Z.
      9500-01(config)#interface HundredGigE1/0/27
      9500-01(config-if)#spanning-tree guard loop
      9500-01(config-if-range)#exit
      9500-01(config)#interface HundredGigE1/0/28
      9500-01(config-if)#spanning-tree guard loop
      9500-01(config-if)#exit
      9500-01(config)#interface HundredGigE2/0/27
      9500-01(config-if)#spanning-tree guard loop
      9500-01(config-if-range)#exit
      9500-01(config)#interface HundredGigE2/0/28
      9500-01(config-if)#spanning-tree guard loop
      9500-01(config-if)#end
      9500-01#wr mem
      Building configuration...
      [OK]
      9500-01#
  35. Configure SVIs for your Campus LAN on the Core Stack:
    • 9500-01(config)#interface vlan 10
      9500-01(config-if)#ip address 10.0.10.1 255.255.255.0
      9500-01(config-if)#no shut
      9500-01(config-if)#interface vlan 20
      9500-01(config-if)#ip address 10.0.20.1 255.255.255.0
      9500-01(config-if)#no shut
      9500-01(config-if)#interface vlan 30
      9500-01(config-if)#ip address 10.0.30.1 255.255.255.0
      9500-01(config-if)#no shut
      9500-01(config-if)#interface vlan 40
      9500-01(config-if)#ip address 10.0.40.1 255.255.255.0
      9500-01(config-if)#no shut
      9500-01(config-if)#exit
      9500-01(config)#ip dhcp pool vlan10
      9500-01(dhcp-config)#network 10.0.10.0 /24
      9500-01(dhcp-config)#default-router 10.0.10.1
      9500-01(dhcp-config)#dns-server 208.67.222.222 208.67.220.220
      9500-01(dhcp-config)#ip dhcp pool vlan20
      9500-01(dhcp-config)#network 10.0.20.0 /24
      9500-01(dhcp-config)#default-router 10.0.20.1
      9500-01(dhcp-config)#dns-server 208.67.222.222 208.67.220.220
      9500-01(dhcp-config)#ip dhcp pool vlan30
      9500-01(dhcp-config)#network 10.0.30.0 /24
      9500-01(dhcp-config)#default-router 10.0.30.1
      9500-01(dhcp-config)#dns-server 208.67.222.222 208.67.220.220
      9500-01(dhcp-config)#ip dhcp pool vlan40
      9500-01(dhcp-config)#network 10.0.40.0 /24
      9500-01(dhcp-config)#default-router 10.0.40.1
      9500-01(dhcp-config)#dns-server 208.67.222.222 208.67.220.220
      9500-01(dhcp-config)#end
      9500-01#wr mem
      Building configuration...
      [OK]
      9500-01#

  36. Verify your DHCP pool configuration
    • 9500-01#sh ip dhcp pool


      Pool vlan10 :
      Utilization mark (high/low)    : 100 / 0
      Subnet size (first/next)       : 0 / 0
      Total addresses                : 254
      Leased addresses               : 0
      Excluded addresses             : 0
      Pending event                  : none
      1 subnet is currently in the pool :
      Current index        IP address range                    Leased/Excluded/Total
      10.0.10.1            10.0.10.1        - 10.0.10.254       0     / 0     / 254


      Pool vlan20 :
      Utilization mark (high/low)    : 100 / 0
      Subnet size (first/next)       : 0 / 0
      Total addresses                : 254
      Leased addresses               : 0
      Excluded addresses             : 0
      Pending event                  : none
      1 subnet is currently in the pool :
      Current index        IP address range                    Leased/Excluded/Total
      10.0.20.1            10.0.20.1        - 10.0.20.254       0     / 0     / 254


      Pool vlan30 :
      Utilization mark (high/low)    : 100 / 0
      Subnet size (first/next)       : 0 / 0
      Total addresses                : 254
      Leased addresses               : 0
      Excluded addresses             : 0
      Pending event                  : none
      1 subnet is currently in the pool :
      Current index        IP address range                    Leased/Excluded/Total
      10.0.30.1            10.0.30.1        - 10.0.30.254       0     / 0     / 254


      Pool vlan40 :
      Utilization mark (high/low)    : 100 / 0
      Subnet size (first/next)       : 0 / 0
      Total addresses                : 254
      Leased addresses               : 0
      Excluded addresses             : 0
      Pending event                  : none
      1 subnet is currently in the pool :
      Current index        IP address range                    Leased/Excluded/Total
      10.0.40.1            10.0.40.1        - 10.0.40.254       0     / 0     / 254
      9500-01#
  37. Verify your SVI configuration
    • 9500-01#sh ip int brief | in Vlan
      Vlan1                  10.0.1.113      YES DHCP   up                    up
      Vlan10                 10.0.10.1       YES manual down                  down
      Vlan20                 10.0.20.1       YES manual down                  down
      Vlan30                 10.0.30.1       YES manual down                  down
      Vlan40                 10.0.40.1       YES manual down                  down
      9500-01#
  38. Configure Layer 2 SwitchportsSGTs and CST (Cisco TrustSec) on your Core Stack interfaces. (Please note that enforcement has been disabled on downlink ports allowing it to happen downstream)
    • 9500-01#conf t
      Enter configuration commands, one per line.  End with CNTL/Z.
      9500-01(config)#cts sgt 2
      9500-01(config)#cts role-based enforcement vlan-list 1,10,20,30,40
      9500-01(config)#ip access-list role-based Allow_All
      9500-01(config-rb-acl)#permit ip
      9500-01(config-rb-acl)#exit
      9500-01(config)#cts role-based permissions default Allow_All
      9500-01(config)#interface TwentyFiveGigE1/0/23
      9500-01(config-if)#switchport mode trunk
      9500-01(config-if)#switchport trunk native vlan 1
      9500-01(config-if)#switchport trunk allowed vlan 1,10,20,30,40
      9500-01(config-if)#no cts role-based enforcement
      9500-01(config-if)#cts manual
      9500-01(config-if-cts-manual)#propagate sgt
      9500-01(config-if-cts-manual)#policy static sgt 2 trusted
      9500-01(config)#interface TwentyFiveGigE1/0/24
      9500-01(config-if)#switchport mode trunk
      9500-01(config-if)#switchport trunk native vlan 1
      9500-01(config-if)#switchport trunk allowed vlan 1,10,20,30,40
      9500-01(config-if)#no cts role-based enforcement
      9500-01(config-if)#cts manual
      9500-01(config-if-cts-manual)#propagate sgt
      9500-01(config-if-cts-manual)#policy static sgt 2 trusted
      9500-01(config)#interface TwentyFiveGigE2/0/23
      9500-01(config-if)#switchport mode trunk
      9500-01(config-if)#switchport trunk native vlan 1
      9500-01(config-if)#switchport trunk allowed vlan 1,10,20,30,40
      9500-01(config-if)#no cts role-based enforcement
      9500-01(config-if)#cts manual
      9500-01(config-if-cts-manual)#propagate sgt
      9500-01(config-if-cts-manual)#policy static sgt 2 trusted
      9500-01(config)#interface TwentyFiveGigE2/0/24
      9500-01(config-if)#switchport mode trunk
      9500-01(config-if)#switchport trunk native vlan 1
      9500-01(config-if)#switchport trunk allowed vlan 1,10,20,30,40
      9500-01(config-if)#no cts role-based enforcement
      9500-01(config-if)#cts manual
      9500-01(config-if-cts-manual)#propagate sgt
      9500-01(config-if-cts-manual)#policy static sgt 2 trusted
      9500-01#wr mem
      Building configuration...
      [OK]
      9500-01#

  39. Spare WAN Edge Connectivity; Follow these steps to create warm-spare with two MX appliances: (Please note that this might result in a brief interruption of packet forwarding on the MX Appliance
    • Navigate to Security & SD-WAN > Monitor > Appliance status and click on Configure warm spare
    • Screenshot 2022-05-23 at 15.19.02.png
    • Now click on Enabled then choose the Spare MX from the drop-down menu and then choose the Uplink IP option that suits your requirements (Please note that choosing Virtual IPs requires an additional IP address on the upstream network and a single broadcast domain between the two MXs) then click on Update
    • Screenshot 2022-05-23 at 15.20.00.png
    • Now click on Spare to access the Appliance status page of your Spare MX and click on the Edit button to rename the spare unit (e.g. Secondary WAN Edge)
    • Screenshot 2022-05-23 at 15.20.38.png
    • Screenshot 2022-05-23 at 15.39.42.png
    • Then configure the following on your C9500 Core Stack:
    • 9500-01#configure terminal
      9500-01(config)#interface Twe1/0/2
      9500-01(config-if)#switchport mode access
      9500-01(config-if)#switchport access vlan 1
      9500-01(config-if)#no shut
      9500-01(config-if)#exit
      9500-01(config)#interface Twe2/0/2
      9500-01(config-if)#switchport mode access
      9500-01(config-if)#switchport access vlan 1
      9500-01(config-if)#no shut
      9500-01(config-if)#end
      9500-01#wr mem
      Building configuration...
      [OK]
    • Then connect the Spare MX downlinks to your C9500 Core Stack (e.g. Spare MX port 19 to Twe1/0/2 and port 20 to Twe2/0/2)
    • Then connect the Spare MX with it's uplinks (This must match the uplink configuration on your Primary WAN Edge)
    • Power on the Spare MX and wait for it to come online on dashboard
    • Screenshot 2022-05-23 at 15.31.59.png
    • Screenshot 2022-05-23 at 15.32.45.png
    • Screenshot 2022-05-23 at 15.32.31.png
    • You can also verify that your C9500 Core Stack interfaces to the Spare MX are up, and that the redundant uplinks are in STP BLK mode
    • 9500-01#sh ip interface brief
      Interface              IP-Address      OK? Method Status                Protocol
      TwentyFiveGigE1/0/2    unassigned      YES unset  up                    up
      TwentyFiveGigE2/0/2    unassigned      YES unset  up                    up
      9500-01#
      9500-01#show spanning-tree


      MST0
        Spanning tree enabled protocol mstp
        Root ID    Priority    4096
                   Address     b0c5.3c60.fba0
                   This bridge is the root
                   Hello Time   2 sec  Max Age 20 sec  Forward Delay 15 sec


        Bridge ID  Priority    4096   (priority 4096 sys-id-ext 0)
                   Address     b0c5.3c60.fba0
                   Hello Time   2 sec  Max Age 20 sec  Forward Delay 15 sec


      Interface           Role Sts Cost      Prio.Nbr Type
      ------------------- ---- --- --------- -------- --------------------------------
      Twe1/0/1            Desg FWD 2000      128.193  P2p
      Twe1/0/2            Desg FWD 2000      128.194  P2p
      Twe2/0/1            Back BLK 2000      128.385  P2p
      Twe2/0/2            Back BLK 2000      128.386  P2p




      9500-01#

  40. Access Policy configuration; When you're logged in dashboard, Navigate to Switching > Configure > Access policies to configure Access Policies as required for your Campus LAN. Please see the following example for two Access Policies; 802.1x & MAB:
    • Screenshot 2022-05-25 at 14.36.51.pngScreenshot 2022-05-06 at 16.56.18.pngScreenshot 2022-05-06 at 16.56.38.png
    • Screenshot 2022-05-25 at 14.37.02.pngScreenshot 2022-05-06 at 16.58.13.pngScreenshot 2022-05-06 at 16.58.21.png
  41. Adaptive Policy Configuration; Configure Adaptive Policy for your Campus LAN. When you're logged in dashboard, Navigate to Organization > Configure > Adaptive Policy then click on the Groups tab on the top. There should be two groups (Unknown, Infrastructure) that are already available. Click on Add group to add each group required for your Campus LAN. You need to fill in the Name, the SGT value, and a description then click on Review changes then click on Submit. Please see the following examples:
    • Screenshot 2022-05-16 at 15.50.34.pngScreenshot 2022-05-16 at 15.50.50.png
  42. Adaptive Policy Configuration; Configure Adaptive Policy for your Campus LAN. When you're logged in dashboard, Navigate to Organization > Configure > Adaptive Policy then click on the Policies tab on the top. The source groups are on the left side, and the destination groups are on the right side. Select a source group from the left side then select all destination groups on the right side that should be allowed then click on Allow and click on Save at the bottom of the page. Next, Select a source group from the left side then select all destination groups on the right side that should be denied (i.e. Blocked) then click on Deny and click on Save at the bottom of the page. After creating the policy for that specific source group, the allowed destination groups will be displayed with a Green tab and the denied destination groups will be displayed with a Red tab. Repeat this step for all policies required for all Groups (Allow and Deny)
    • Screenshot 2022-05-16 at 15.58.00.pngScreenshot 2022-05-16 at 15.57.13.pngScreenshot 2022-05-16 at 15.58.13.pngScreenshot 2022-05-17 at 12.34.55.pngScreenshot 2022-05-16 at 15.58.47.pngScreenshot 2022-05-16 at 15.59.01.png
  43. Access Switch Ports Configuration; Configure Uplink Ports on your Access Switches. When you're logged in dashboard, Navigate to Switching > Monitor > Switch Ports, then select your uplink ports and configure them as shown below. (Tip: You can filter for ports by using search terms in dashboard): Screenshot 2022-05-06 at 14.36.22.pngScreenshot 2022-05-16 at 20.21.15 new2.jpgScreenshot 2022-05-06 at 14.31.22.png
  44. Optional - For ease of management, it is recommended that you rename the ports connecting to your Core switches with the actual switch name / Connecting port as shown below.Screenshot 2022-05-06 at 14.58.07.png
  45. Access Switch Ports Configuration; Configure Wired Client Ports (802.1x) on your Access Switches. Navigate to or Refresh Switching > Monitor > Switch Ports, then select your Wired Client ports (5-8) and configure them as shown below. (Tip: You can filter for ports by using search terms in dashboard): Screenshot 2022-05-06 at 15.00.56.pngScreenshot 2022-05-06 at 15.01.44.pngScreenshot 2022-05-06 at 16.58.56.pngScreenshot 2022-05-06 at 15.02.26.png
  46. Access Switch Ports Configuration; Configure Wired Client Ports (MAB) on your Access Switches. Navigate to or Refresh Switching > Monitor > Switch Ports, then select your Wired Client ports (9-12) and configure them as shown below. (Tip: You can filter for ports by using search terms in dashboard):Screenshot 2022-05-06 at 15.42.56.pngScreenshot 2022-05-06 at 15.49.27.pngScreenshot 2022-05-06 at 16.59.23.pngScreenshot 2022-05-06 at 15.49.54.png
  47. Access Switch Ports Configuration; Configure MR Ports on your Access Switches. Navigate to or Refresh Switching > Monitor > Switch Ports, then select your ports connecting to MR Access Points (13-16) and configure them as shown below. (Tip: You can filter for ports by using search terms in dashboard):Screenshot 2022-05-06 at 15.57.04.pngScreenshot 2022-05-06 at 15.56.33.pngScreenshot 2022-05-06 at 15.56.42.png
  48. Optional - Access Switch Ports Configuration; Configure unused ports on your Access Switches such that they are disabled and mapped to an unrouted VLAN (e.g. VLAN 999). Navigate to Switching > Configure > Switch Ports and filter for any unused ports (e.g. 17-24) and configure them as shown below:
    • Screenshot 2022-05-06 at 17.12.18.png
  49. Rename Wireless SSIDs; To configure your SSIDs per the above table, first navigate to Wireless > Configure > SSIDs then rename the SSIDs per your requirements (Refer to the above table for guidance)
    • SSID#1 (First column, aka vap:0, enabled by default): Click on rename and change it to Acme Corp
    • SSID#2 (Second column, aka vap:1): Click on rename and change it to Acme BYOD, then click on the top drop-down menu to enable it
    • SSID#3 (Third column, aka vap:2): Click on rename and change it to Guest, then click on the top drop-down menu to enable it
    • SSID#4 (Fourth column, aka vap:3): Click on rename and change it to Acme IoT, then click on the top drop-down menu to enable it
    • Click Save at the bottom of the pageScreenshot 2022-05-06 at 19.40.08.png
  50. Configure Access Control for Acme Corp; Navigate to Wireless > Configure > Access control then from the top drop-down menu choose Acme Corp:
    • Screenshot 2022-05-06 at 19.52.19.pngScreenshot 2022-05-06 at 21.31.35.png
    • new sc#1.jpg
    • Screenshot 2022-09-12 at 16.16.49.png
    • Screenshot 2022-05-25 at 19.17.30.pngScreenshot 2022-05-06 at 19.54.31.png
    • Click Save at the bottom of the page
    • Screenshot 2022-05-06 at 20.45.43.png
    • Please Note: Adaptive Policy Group feature is not currently available in the New Version of the Access. You will need to click on View old version Screenshot 2022-05-06 at 21.25.34.png which is available at the top right corner of the page to be able to access this and configure the Adaptive Policy Group (10: Corp). Then, please click Save at the bottom of the page
  51. Configure Access Control for Acme BYOD; Navigate to Wireless > Configure > Access control then from the top drop-down menu choose Acme BYOD:
    • Screenshot 2022-05-16 at 15.23.20.pngScreenshot 2022-05-16 at 15.23.29.pngScreenshot 2022-05-16 at 15.23.41.pngSplash Page ISE.pngScreenshot 2022-06-09 at 14.21.21.pngScreenshot 2022-05-16 at 15.24.23.pngScreenshot 2022-05-16 at 15.24.34.png
    • Click on Screenshot 2022-05-06 at 21.25.34.pngwhich is available on the top right corner of the page, then choose the Adaptive Policy Group 20: BYOD and then click on Save at the bottom of the page.
    • Screenshot 2022-05-06 at 20.45.03.png
  52. Configure Access Control for Guest; Navigate to Wireless > Configure > Access control then from the top drop-down menu choose Guest:
    • Screenshot 2022-05-06 at 20.51.00.pngScreenshot 2022-05-06 at 20.51.06.pngScreenshot 2022-05-06 at 20.51.22.pngSplash Page Click-Through.pngScreenshot 2022-05-06 at 20.52.58.pngScreenshot 2022-05-06 at 20.53.13.png
    • Click on Screenshot 2022-05-06 at 21.25.34.pngat the top right corner of the page then choose the Adaptive Policy Group 30: Guest then click on Save at the bottom of the page
    • Screenshot 2022-05-06 at 20.53.47.png
  53. Configure Access Control for Acme IoT; Navigate to Wireless > Configure > Access control then from the top drop-down menu choose Acme IoT:
    • Screenshot 2022-05-16 at 15.38.36.pngScreenshot 2022-05-16 at 15.38.47.pngScreenshot 2022-05-16 at 15.38.55.pngSplash Page None.pngScreenshot 2022-06-09 at 14.21.21.pngScreenshot 2022-05-16 at 15.39.29.pngScreenshot 2022-05-16 at 15.39.48.png
    • Click on Screenshot 2022-05-06 at 21.25.34.pngat the top right corner of the page then choose the Adaptive Policy Group 40: IoT then click on Save at the bottom of the page
    • Screenshot 2022-05-06 at 20.56.34.png
  54. Enabling Stacking on your MS390 and C9300 Switches in Meraki Dashboard; Please follow these steps
    1. Connect a single uplink to each switch (e.g. Port 1 on MS390-01 to Port TwentyFiveGigE1/0/23 on C9500)
    2. Make sure all stacking cables are unplugged from all switches
    3. Power up all switches
    4. Verify that your C9500 Stack downlinks are up and not shutdown
      • 9500-01#sh ip interface brief
        Interface              IP-Address      OK? Method Status                Protocol
        TwentyFiveGigE1/0/23   unassigned      YES unset  up                    up
        TwentyFiveGigE1/0/24   unassigned      YES unset  up                    up
        TwentyFiveGigE2/0/23   unassigned      YES unset  up                    up
        TwentyFiveGigE2/0/24   unassigned      YES unset  up                    up
        9500-01#
    5. Wait for them to come online on dashboard. Navigate to Switching > Monitor > Switches and check the status of your Access Switches
      • Screenshot 2022-05-16 at 16.09.49.png
    6. After they come online and download their configuration and firmware (Up to date) you can proceed to the next step. You can see their Configuration status and Firmware version from Switching > Monitor > Switches
    7. Enable stacking in dashboard by Navigating to Switching > Monitor > Switch stacks then click on add one
      • Screenshot 2022-05-16 at 16.12.17.png
    8. Then give your stack a name and select it's members and click on Create
      • Screenshot 2022-05-16 at 16.13.11.pngScreenshot 2022-05-16 at 16.13.23.png
    9. Now click on Add a stack to create all other stacks in your Campus LAN access layer by repeating the above steps
      • Screenshot 2022-05-16 at 16.13.23.pngScreenshot 2022-05-16 at 16.13.48.pngScreenshot 2022-05-16 at 16.13.57.png
    10. Power off all access switches
    11. Disconnect all uplink cables from all switches
    12. Nominate your master switch for each stack (e.g. MS390-01 for stack1 and C9300-01 for stack2)
    13. On the master switches, plug the uplink again
    14. Plug stacking cables on all switches in each stack to form a ring topology and make sure that the Cisco logo is upright
    15. Power on your master switches first, then power other stack members

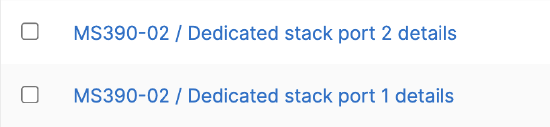

    16. Wait for the stack to come online on dashboard. To check the status of your stack, Navigate to Switching > Monitor > Switch stacks and then click on each stack to verify that all members are online and that stacking cables show as connected
      • Screenshot 2022-05-16 at 16.42.27.pngScreenshot 2022-05-16 at 16.42.38.png
    17. Plug uplinks on all other non-master members and verify that the uplink is online in dashboard by navigating to Switching > Monitor > Switch stacks and then click on each stack to verify that all uplinks are showing as connected however they should be in STP discarding mode
      • Screenshot 2022-05-16 at 16.47.30.pngScreenshot 2022-05-16 at 16.47.48.png
    18. Configure the same Static IP for all members in each stack by navigating to Switching > Monitor > Switches then click on the master switch (e.g. MS390-01 for Stack1) and under LAN IP menu copy the IP address then click on the edit button to specify the Static IP address information (You can use the same IP address that was assigned using DHCP) then click Save. The same Static IP address information should now be copied for all members of the same stack. You can verify this by navigating to Switch > Monitor > Switches (Tip: Click on the configure button on the right hand side of the table to add Local IP information display)
      • Screenshot 2022-05-16 at 16.48.41.png
      • Screenshot 2022-05-16 at 16.50.43.png
      • Screenshot 2022-05-16 at 16.57.05.png
      • Screenshot 2022-05-16 at 16.55.39.png
      • Screenshot 2022-05-16 at 17.01.43.png
    19. Finally, configure etherchannels on both your Access Switch Stacks and your Core Switch Stacks so that all uplinks can be operational (STP forwarding mode) at the same time. Follow these steps:
      • First, disconnect the downlinks to non-master switches from your C9500 Core Stack (e.g. Port TwentyFiveGigE2/0/23 and TwentyFiveGigE2/0/24)
      • Navigate to Switching > Monitor > Switch ports and search for uplink then select all uplinks in the same stack (in case you have tagged your ports otherwise search for them manually and select them all) then click on Aggregate. Please note that all port members of the same Ether Channel must have the same configuration otherwise Dashboard will not allow you to click the aggergate button.
        • Screenshot 2022-05-16 at 17.12.05.png
        • Screenshot 2022-05-16 at 17.12.12.png
        • Screenshot 2022-05-16 at 17.12.30.png
        • Screenshot 2022-05-16 at 17.15.40.png
        • Screenshot 2022-05-16 at 17.16.20.png
        • Please repeat above steps for all stacks in your network
        • Please note that the above step will cause all members within the stack to go offline in Dashboard
      • On your C9500 Core Stack, please configure etherchannel Settings for your downlinks such that each Stack downlinks should be in a separate Port-channel and that the mode is active:
      • 9500-01#configure terminal
        Enter configuration commands, one per line.  End with CNTL/Z.
        9500-01(config)#interface TwentyFiveGigE1/0/23
        9500-01(config-if)#channel-group 1 mode active
        Creating a port-channel interface Port-channel 1


        9500-01(config-if)#
        9500-01(config-if)#interface TwentyFiveGigE2/0/23
        9500-01(config-if)#channel-group 1 mode active
        9500-01(config-if)#interface TwentyFiveGigE1/0/24
        9500-01(config-if)#channel-group 2 mode active
        Creating a port-channel interface Port-channel 2


        9500-01(config-if)#interface TwentyFiveGigE2/0/24
        9500-01(config-if)#channel-group 2 mode active
        9500-01(config-if)#end
        9500-01#
        9500-01#show etherchannel 1 port-channel
        Port-channels in the group:
        ---------------------------


        Port-channel: Po1    (Primary Aggregator)


        ------------


        Age of the Port-channel   = 0d:01h:42m:43s
        Logical slot/port   = 9/1          Number of ports = 2
        HotStandBy port = null
        Port state          = Port-channel Ag-Inuse
        Protocol            =   LACP
        Port security       = Disabled
        Fast-switchover     = disabled
        Fast-switchover Dampening = disabled


        Ports in the Port-channel:


        Index   Load   Port        EC state        No of bits
        ------+------+------+------------------+-----------
          0     00     Twe1/0/23      Active             0
          0     00     Twe2/0/23      Active             0


        Time since last port bundled:    0d:01h:40m:21s     Twe2/0/23


        9500-01#
        9500-01#show etherchannel 2 port-channel
        Port-channels in the group:
        ---------------------------


        Port-channel: Po2    (Primary Aggregator)


        ------------


        Age of the Port-channel   = 0d:01h:43m:56s
        Logical slot/port   = 9/2          Number of ports = 2
        HotStandBy port = null
        Port state          = Port-channel Ag-Inuse
        Protocol            =   LACP
        Port security       = Disabled
        Fast-switchover     = disabled
        Fast-switchover Dampening = disabled


        Ports in the Port-channel:


        Index   Load   Port        EC state        No of bits
        ------+------+------+------------------+-----------
          0     00     Twe1/0/24      Active             0
          0     00     Twe2/0/24      Active             0


        Time since last port bundled:    0d:01h:42m:04s     Twe2/0/24


        9500-01#9500-01#wr mem
        Building configuration...

        [OK]
        9500-01#

      • Plug all uplinks to non-master switches
      • Now all your switches should come back online on Dashboard
        • Screenshot 2022-05-16 at 19.11.55.png
      • And now all your uplinks from each stack should be in STP Forwarding mode, which you can verify on Dashboard by navigating to Switching > Monitor > Switch stacks and checking the uplink port status. Also you can check that on your C9500 Core Stack:
        • Screenshot 2022-05-16 at 19.22.19.png
        • Screenshot 2022-05-16 at 19.22.29.png
        • 9500-01#show spanning-tree interface port-channel 1


          Mst Instance        Role Sts Cost      Prio.Nbr Type
          ------------------- ---- --- --------- -------- --------------------------------
          MST0                Desg FWD 10000     128.2089 P2p
          9500-01#show spanning-tree interface port-channel 2


          Mst Instance        Role Sts Cost      Prio.Nbr Type
          ------------------- ---- --- --------- -------- --------------------------------
          MST0                Desg FWD 1000      128.2090 P2p
          9500-01#show spanning-tree


          MST0
            Spanning tree enabled protocol mstp
            Root ID    Priority    4096
                       Address     b0c5.3c60.fba0
                       This bridge is the root
                       Hello Time   2 sec  Max Age 20 sec  Forward Delay 15 sec


            Bridge ID  Priority    4096   (priority 4096 sys-id-ext 0)
                       Address     b0c5.3c60.fba0
                       Hello Time   2 sec  Max Age 20 sec  Forward Delay 15 sec


          Interface           Role Sts Cost      Prio.Nbr Type
          ------------------- ---- --- --------- -------- --------------------------------
          Twe1/0/1            Desg FWD 2000      128.193  P2p
          Twe1/0/2            Desg FWD 2000      128.194  P2p
          Twe2/0/1            Back BLK 2000      128.385  P2p
          Twe2/0/2            Back BLK 2000      128.386  P2p
          Po1                 Desg FWD 10000     128.2089 P2p
          Po2                 Desg FWD 1000      128.2090 P2p




          9500-01#

  55. Configure Multiple Spanning Tree Protocol (802.1s)  in Dashboard for MS390 and C9300 switches; Navigate to Switching > Configure > Switch settings and select your stack and choose the appropriate STP priority per stack (61440 for all Access Switch Stacks) then click Save at the bottom of the page
    • Screenshot 2022-05-16 at 19.27.31.png
    • Verify that the Access Stacks are seeing the C9500 Core Stack as the root by navigating to Switching > Monitor > Switches then click on any switch and under the RSTP root menu check the root bridge information
  56. Configure Dynamic ARP Inspection (DAI) on your C9500 Core Switches; All Downlinks to Access Switches and Uplinks to MX Edge must be configured as Trusted and all other interfaces as Untrusted: (Please note that the order of commands is important to avoid loss of connectivity)
    • 9500-01#show cdp neighbors
      Capability Codes: R - Router, T - Trans Bridge, B - Source Route Bridge
                        S - Switch, H - Host, I - IGMP, r - Repeater, P - Phone,
                        D - Remote, C - CVTA, M - Two-port Mac Relay


      Device ID        Local Intrfce     Holdtme    Capability  Platform  Port ID
      a4b4395f2a80     Twe 1/0/24        124               S    C9300-24U Port C9300-NM-8X/1
      2c3f0b0fec00     Twe 2/0/23        174               S    MS390-24  Port 1
      2c3f0b047e80     Twe 1/0/23        159               S    MS390-24U Port 1
      4ce175b0ba00     Twe 2/0/24        177               S    C9300-24U Port C9300-NM-8X/1


      Total cdp entries displayed : 4
      9500-01#configure terminal
      9500-01(config)#interface TwentyFiveGigE1/0/1
      9500-01(config-if)#ip arp inspection trust
      9500-01(config-if)#ip dhcp snooping trust
      9500-01(config-if)#exit
      9500-01(config)#interface TwentyFiveGigE1/0/2
      9500-01(config-if)#ip arp inspection trust
      9500-01(config-if)#ip dhcp snooping trust
      9500-01(config-if)#exit
      9500-01(config)#interface TwentyFiveGigE2/0/1
      9500-01(config-if)#ip arp inspection trust
      9500-01(config-if)#ip dhcp snooping trust
      9500-01(config-if)#exit
      9500-01(config)#interface TwentyFiveGigE2/0/2
      9500-01(config-if)#ip arp inspection trust
      9500-01(config-if)#ip dhcp snooping trust
      9500-01(config-if)#exit
      9500-01(config)#interface Po1
      9500-01(config-if)#ip arp inspection trust
      9500-01(config-if)#ip dhcp snooping trust
      9500-01(config-if)#exit
      9500-01(config)#interface Po2
      9500-01(config-if)#ip arp inspection trust
      9500-01(config-if)#ip dhcp snooping trust
      9500-01(config-if)#exit
      9500-01(config)#ip arp inspection vlan 1,10,20,30,40
      9500-01(config)#ip dhcp snooping vlan 1,10,20,30,40
      9500-01(config)#end
      9500-01#show ip dhcp snooping
      Switch DHCP snooping is enabled
      Switch DHCP gleaning is disabled
      DHCP snooping is configured on following VLANs:
      1,10,20,30,40
      DHCP snooping is operational on following VLANs:
      1,10,20,30,40
      DHCP snooping is configured on the following L3 Interfaces:


      Insertion of option 82 is enabled
         circuit-id default format: vlan-mod-port
         remote-id: b0c5.3c60.fba0 (MAC)
      Option 82 on untrusted port is not allowed
      Verification of hwaddr field is enabled
      Verification of giaddr field is enabled
      DHCP snooping trust/rate is configured on the following Interfaces:


      Interface                  Trusted    Allow option    Rate limit (pps)
      -----------------------    -------    ------------    ----------------
      TwentyFiveGigE1/0/1              yes        yes             unlimited
        Custom circuit-ids:
      TwentyFiveGigE1/0/2              yes        yes             unlimited
        Custom circuit-ids:
      TwentyFiveGigE1/0/23             yes        yes             unlimited
        Custom circuit-ids:
      TwentyFiveGigE1/0/24             yes        yes             unlimited
        Custom circuit-ids:
      TwentyFiveGigE2/0/1              yes        yes             unlimited
        Custom circuit-ids:
      TwentyFiveGigE2/0/2              yes        yes             unlimited
        Custom circuit-ids:
      TwentyFiveGigE2/0/23             yes        yes             unlimited
        Custom circuit-ids:
      TwentyFiveGigE2/0/24             yes        yes             unlimited
        Custom circuit-ids:
      Port-channel1                    yes        yes             unlimited
        Custom circuit-ids:
      Port-channel2                    yes        yes             unlimited
        Custom circuit-ids:
      9500-01#
      9500-01#show ip arp inspection


      Source Mac Validation      : Disabled
      Destination Mac Validation : Disabled
      IP Address Validation      : Disabled


      Vlan     Configuration    Operation   ACL Match          Static ACL
      ----     -------------    ---------   ---------          ----------
          1     Enabled          Active
         10     Enabled          Active
         20     Enabled          Active
         30     Enabled          Active
         40     Enabled          Active

      9500-01#wr mem
      Building configuration...
      [OK]
      9500-01#

  57. Configure Dynamic Arp Inspection (DAI) on your Access Switch Stacks; Navigate to Switching > Monitor > DHCP Servers & ARP and scroll down to Dynamic ARP Inspection and enable it then click Save at the bottom of the page:
    • Screenshot 2022-05-16 at 21.13.59.png
  58. Setting up your Access Points; Connect your APs to the respective ports on the Access Switches (e.g. Ports 13-16) and wait for them to come online on dashboard and download their firmware and configuration files. To check the status of your APs navigate to Wireless > Monitor > Access points and check the status, configuration and firmware of your APs.
    • AP in.jpg
  59. Re-addressing your Network Devices; In this step, you will adjust your IP addressing configuration to align with your network design. This step could have been done earlier in the process however it will be easier to adjust after all your network devices have come online since the MX (The DHCP server for Management VLAN 1) has kept a record of the actual MAC addresses of all DHCP clients. Follow these steps to re-assign the desired IP addresses: (Please note that this will cause disruption to your network connectivity)
    1. Navigate to Organization > Monitor > Overview then click on Devices tab to check the current IP addressing for your network devices
    2. Navigate to Security & SD-WAN > Monitor > Appliance status then click on the Tools tab and click on Run next to ARP Table
    3. Take a note of the MAC addresses of your network devices
    4. Navigate to Security & SD-WAN > Configure > DHCP then under Fixed IP assignments click on Add a fixed IP assignment and add entries for your network devices using the MAC addresses you have from Step #3 above then click on Save at the bottom of the page
      • Screenshot 2022-05-17 at 14.38.08.png
    5. Navigate to Switching > Configure > Switch ports then filter for MR (in case you have previously tagged your ports or select ports manually if you haven't) then select those ports and click on Edit, then set Port status to Disabled then click on Save
      • Screenshot 2022-05-17 at 15.22.17.pngScreenshot 2022-05-17 at 15.22.34.png
    6. After a few minutes (For configuration to be up to date) Navigate to Switching > Configure > Switch ports then filter for MR (in case you have previously tagged your ports or select ports manually if you haven't) then select those ports and click on Edit, then set Port status to Enabled then click on Save
      • Screenshot 2022-05-17 at 15.22.17.pngScreenshot 2022-05-17 at 15.22.41.png
    7. Navigate to Switching > Monitor > Switches then click on each master switch to change its IP address to the one desired using Static IP configuration (remember that all members of the same stack need to have the same static IP address)
      • Screenshot 2022-05-17 at 15.21.13.png
      • Screenshot 2022-05-17 at 15.21.35.png
    8. On your C9500 Core Stack, bounce your VLAN 1 interface. Then verify that the interface VLAN 1 came up with the correct IP address (e.g. 10.0.0.2 per this design)
      • 9500-01#configure terminal
        Enter configuration commands, one per line.  End with CNTL/Z.
        9500-01(config)#interface vlan 1
        9500-01(config-if)#shutdown
        9500-01(config-if)#no shutdown
        9500-01(config-if)#end
        9500-01#sh ip interface brief vlan 1
        Interface              IP-Address      OK? Method Status                Protocol
        Vlan1                  10.0.1.2        YES DHCP   up                    up
        9500-01#

    9. Navigate to Organization > Monitor > Overview then click on Devices tab to check the current IP addressing for your network devices
      • Screenshot 2022-05-17 at 15.19.23.png
  60. Configure QoS in your Campus LAN; Quality of Service configuration needs to be consistent across the whole Campus LAN. Please refer to the above table as an example. To configure QoS, please follow these steps: (For the purpose of this CVD, Default traffic shaping rules will be used to mark traffic with DSCP values without setting any traffic limits. Please adjust traffic shaping rules based on your own requirements
    1. Navigate to Wireless > Configure >  Firewall & Traffic Shaping and choose the Acme Corp SSID from the above drop-down menu. Under Traffic Shaping rules, choose the per-client and per-SSID limits desired and select Shape traffic on this SSID then select Enable default traffic shaping rules. Click Save at the bottom of the page when you are done. Click Save at the bottom of the page when you are done.
      • Screenshot 2022-05-20 at 10.19.34.png
    2. Navigate to Wireless > Configure > Firewall & Traffic Shaping and choose the Acme BYOD SSID from the above drop-down menu. Under Traffic Shaping rules, choose the per-client and per-SSID limits desired and select Shape traffic on this SSID then select Enable default traffic shaping rules.
      • Screenshot 2022-05-20 at 10.19.34.png
    3. Navigate to Wireless > Configure > Firewall & Traffic Shaping and choose the Guest SSID from the above drop-down menu. Under Traffic Shaping rules, choose the per-client and per-SSID limits desired and select Shape traffic on this SSID then select Enable default traffic shaping rules. Click Save at the bottom of the page when you are done.
      • Screenshot 2022-05-20 at 10.21.18.png
    4. Navigate to Wireless > Configure > Firewall & Traffic Shaping and choose the IoT SSID from the above drop-down menu. Under Traffic Shaping rules, choose the per-client and per-SSID limits desired and select Shape traffic on this SSID then select Enable default traffic shaping rules. Click Save at the bottom of the page when you are done.
      • Screenshot 2022-05-20 at 10.19.34.png
    5. Navigate to Switching > Configure > Switch settings and under the Quality of Service menu configure the VLAN to DSCP mappings. Please click on Edit DSCP to CoS map to change settings per your requirements. (For more information on MS QoS settings and operation, please refer to the following article) Click Save at the bottom of the page when you are done. (Please note that the ports used in the below example are based on Cisco Webex traffic flow)
      • Screenshot 2022-05-20 at 09.58.59.png
      • Screenshot 2022-05-20 at 09.46.04.png
    6. Please ensure that your C9500 Core Stack is configured to trust incoming QoS. Here's a reference of the configuration needed to be applied:
      • 9500-01#configure terminal
        Enter configuration commands, one per line.  End with CNTL/Z.
        9500-01(config)#interface TwentyFiveGigE1/0/1
        9500-01(config-if)#auto qos trust dscp
        9500-01(config-if)#interface TwentyFiveGigE1/0/2
        9500-01(config-if)#auto qos trust dscp
        9500-01(config-if)#interface TwentyFiveGigE2/0/1
        9500-01(config-if)#auto qos trust dscp
        9500-01(config-if)#interface TwentyFiveGigE2/0/2
        9500-01(config-if)#auto qos trust dscp
        9500-01(config-if)#interface TwentyFiveGigE1/0/23
        9500-01(config-if)#auto qos trust dscp
        Warning: add service policy will cause inconsistency with port TwentyFiveGigE2/0/23 in ether channel 1.
        9500-01(config-if)#interface TwentyFiveGigE1/0/24
        9500-01(config-if)#auto qos trust dscp
        Warning: add service policy will cause inconsistency with port TwentyFiveGigE2/0/24 in ether channel 2.
        9500-01(config-if)#interface TwentyFiveGigE1/0/24
        9500-01(config-if)#auto qos trust dscp
        9500-01(config-if)#end
        9500-01#show auto qos
        TwentyFiveGigE1/0/1
        auto qos trust dscp


        TwentyFiveGigE1/0/2
        auto qos trust dscp


        TwentyFiveGigE1/0/23
        auto qos trust dscp


        TwentyFiveGigE1/0/24
        auto qos trust dscp


        TwentyFiveGigE2/0/1
        auto qos trust dscp


        TwentyFiveGigE2/0/2
        auto qos trust dscp


        TwentyFiveGigE2/0/23
        auto qos trust dscp


        TwentyFiveGigE2/0/24
        auto qos trust dscp


        9500-01#wr mem

    7. Navigate to Security & SD-WAN > Configure > SD-WAN & Traffic shaping and make sure your Uplink configuration matches your WAN speed. Then, under Uplink selection choose the settings that match your requirements (e.g. Load balancing). Under Traffic shaping rules, select Enable default traffic shaping rules then click on Add a new shaping rule to create the rules needed for your network (for more information about Traffic shaping rules on MX appliances, please refer to the following article). Please see the following example:
      • Screenshot 2022-05-20 at 10.15.06.png
      • Screenshot 2022-05-20 at 10.59.10.png
      • Screenshot 2022-05-20 at 10.08.49.png
      • Screenshot 2022-05-20 at 10.11.08.png



Testing & Verification
Firmware

The following table indicates the firmware versions used in this Campus LAN:

Device Firmware Version Notes
MX250 WAN Edge MX 16.16 GA
C9500 Core Stack IOS XE 17.3.4 Stable
MS390 Access Stack MS 15.14 Beta
C9300 Access Stack MS 15.14 Beta
MR55 28.6.1 GA
C9166 (MR57) 28.30 Beta
Device Connectivity

MX WAN Edge

Upstream Connectivity

Screenshot 2022-05-18 at 11.32.01.png

Internet/Cloud Connectivity

Screenshot 2022-05-18 at 11.31.20.png

Screenshot 2022-05-18 at 11.31.25.png

Screenshot 2022-05-23 at 15.57.12.png

Downstream Connectivity

Screenshot 2022-05-18 at 11.34.43.png

Screenshot 2022-05-18 at 11.34.48.png

Screenshot 2022-05-18 at 11.34.54.png

Screenshot 2022-05-18 at 11.34.59.png

Screenshot 2022-05-18 at 11.35.05.png

Screenshot 2022-05-18 at 11.35.59.png



C9500 Core Stack

Upstream Connectivity

9500-01#ping 10.0.1.1
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 10.0.1.1, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 1/1/1 ms
9500-01#

Internet Connectivity

9500-01#ping 8.8.8.8
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 8.8.8.8, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 5/5/5 ms
9500-01#ping cisco.com
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 72.163.4.185, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 108/110/112 ms
9500-01#

Downstream Connectivity (Please note that the MS390 and Converted C9300 platforms will prioritize packet forwarding over ICMP echo replies so it's expected behavior that you might get some drops)

9500-01#ping 10.0.1.3
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 10.0.1.3, timeout is 2 seconds:
.!!!!
Success rate is 80 percent (4/5), round-trip min/avg/max = 2/2/3 ms
9500-01#ping 10.0.1.4
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 10.0.1.4, timeout is 2 seconds:
.!!!!
Success rate is 80 percent (4/5), round-trip min/avg/max = 2/2/4 ms
9500-01#ping 10.0.1.5
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 10.0.1.5, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 1/1/1 ms
9500-01#ping 10.0.1.6
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 10.0.1.6, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 1/1/1 ms
9500-01#

In case of connectivity issues, please check the following:

Item Expected Configuration/Status Verification Actual Configuration

C9500 Uplinks to MX Edge:

TwentyFiveGigE1/0/1

TwentyFiveGigE1/0/2

TwentyFiveGigE2/0/1

TwentyFiveGigE2/0/2

Access , VLAN 1

DAI Trusted

up/up







sh ip int brief

sh run int <interface>

sh spanning-tree int <interface>



!all uplinks!

switchport mode access

ip arp inspection trust

ip dhcp snooping trust

end

!

STP interface Configuration:

TwentyFiveGigE1/0/1

TwentyFiveGigE1/0/2

TwentyFiveGigE2/0/1

TwentyFiveGigE2/0/2

TwentyFiveGigE1/0/23

TwentyFiveGigE1/0/24

TwentyFiveGigE2/0/23

TwentyFiveGigE2/0/24

STP Configuration

N/A

N/A

N/A

N/A

Root Guard + UDLD aggressive

Root Guard + UDLD aggressive

Root Guard + UDLD aggressive

Root Guard + UDLD aggressive

sh run int <interface>



!where applicable!

udld port aggressive

spanning-tree guard root

end

!

STP interface Status:

TwentyFiveGigE1/0/1

TwentyFiveGigE1/0/2

TwentyFiveGigE2/0/1

TwentyFiveGigE2/0/2

Po1

Po2



STP status:

FWD

BLK

FWD

BLK

FWD

FWD

sh spanning-tree int <interface>



!only PHY interfaces!

spanning-tree mode mst

spanning-tree extend system-id

!

spanning-tree mst configuration

name region1

revision 1

!

spanning-tree mst 0 priority 4096

!

Default Route



DHCP, VLAN 1



sh int vlan1

sh ip route



!

interface Vlan1

ip address dhcp

end

!

sh ip route | in /0

S*    0.0.0.0/0 [254/0] via 10.0.1.1

MX WAN Edge Downlinks:

Port 19

Port 20

Access , VLAN 1



Navigate to Security & SD-WAN>
Configure > Addressing & VLANs



Screenshot 2022-05-18 at 10.31.45.png



C9500 Downlinks:

TwentyFiveGigE1/0/23

TwentyFiveGigE1/0/24

TwentyFiveGigE2/0/23

TwentyFiveGigE2/0/24

Trunk, Native VLAN 1, Allowed VLANs 1,10,20,30,40

DAI Trusted

SGT 2 Trusted

No CTS enforcement

sh run int <interface>



!

switchport trunk allowed vlan 1,10,20,30,40

switchport mode trunk

ip arp inspection trust

!

cts manual

  policy static sgt 2 trusted

no cts role-based enforcement

!

end

C9500 Ether-Channels:

TwentyFiveGigE1/0/23

TwentyFiveGigE1/0/24

TwentyFiveGigE2/0/23

TwentyFiveGigE2/0/24

Po1

Po2



Channel-Group 1

Channel-Group 2

Channel-Group 1

Channel-Group 2

up/up

up/up



sh run int <interface>

sh etherchannel <#> sum

sh ip int brief | in Po

!PHY 23!

channel-group 1 mode active

!PHY 24!

channel-group 2 mode active

!

end



MS390 Access Stack

Upstream Connectivity

Screenshot 2022-05-23 at 16.18.05.png

Internet/Cloud Connectivity

Screenshot 2022-05-19 at 11.01.57.png

Downstream Connectivity

Screenshot 2022-05-23 at 16.21.55.png

C9300 Access Stack

Upstream Connectivity

Screenshot 2022-05-23 at 16.18.05.png

Internet/Cloud Connectivity

Screenshot 2022-05-19 at 11.05.32.png

Screenshot 2022-05-19 at 11.04.00.png

Downstream Connectivity

Screenshot 2022-05-23 at 16.23.27.png

MR Access Points



Client Connectivity

Screenshot 2022-05-19 at 11.15.32.png

Screenshot 2022-05-19 at 11.15.56.png

Screenshot 2022-05-19 at 11.21.07.png

Screenshot 2022-05-19 at 11.16.17.png

Screenshot 2022-05-19 at 11.16.43.png

Screenshot 2022-05-19 at 11.16.54.png



802.1x Authentication

802.1x authentication has been tested on both Corp and BYOD SSIDs. Dashboard will be checked to verify the correct IP address assignment and username. Packet captures will also be checked to verify the correct SGT assignment. In the final section, ISE logs will show the authentication status and authorisation policy applied.

Client SSID / Port Username VLAN SGT

Macbook Pro

3c:22:fb:30:da:69

10.0.10.3

Acme Corp



corp1



10



10



iPhone 11

46:f2:0c:4b:e7:fd

10.0.20.5

Acme BYOD



byod1



20



20



Macbook Pro

8C:AE:4C:DD:15:19

10.0.10.6





MS390-01

Port 6

corp1 10 (Auth-fail VLAN 30) 10



Screenshot 2022-05-23 at 16.32.49.png

Screenshot 2022-05-23 at 18.36.44.png



Screenshot 2022-05-23 at 16.36.36.png

Screenshot 2022-05-23 at 16.36.58.png

Screenshot 2022-05-23 at 16.37.06.png

Screenshot 2022-05-23 at 18.31.13.png

Screenshot 2022-05-23 at 18.35.22.png

Please note that the configuration of Cisco ISE is out of scope of this CVD. Please refer to Cisco ISE administration guide for details on configuring policy sets on Cisco ISE. Also, please refer to this article for more information on the configuration of Cisco ISE with Cisco Meraki devices.



Wireless Roaming

Wireless roaming has been tested between two zones and APs homed to different switch stacks whilst being on a Webex meeting with Audio/Video and Content share. Device and Client details in the following table:

Device Type Details Connected to

MR55 (AP3_Zone2)



68:3a:1e:54:0d:48

10.0.1.5

C9300-2 (Stack2)



MR57 (AP2_Zone1)



cc:9c:3e:ec:26:b0

10.0.1.6

MS390-1 (Stack1)



Client (iPhone 11)



cc:66:0a:3e:44:69

10.0.20.3

AP3_Zone2

AP2_Zone1

(Layer 2 Roaming)



First Association

 clipboard_e35db6975a43490c702f7125c39247ff9.png  clipboard_eb075c352361037f4abe57a8f629bafc9.png

Second Association (The video overlay is the stream from a Webex meeting while the client was roaming)

clipboard_eea71e034e95bc7ce00031c69b6f147b8.png  clipboard_eae4e678a667362409aa4d76ceadd7b71.png

Traffic Flow (Packet #27)


Webex Meeting Statistics (Snapshot taken after roaming)

Screenshot 2022-05-19 at 12.06.54.png

Screenshot 2022-05-19 at 12.07.03.png

Screenshot 2022-05-19 at 12.07.13.png

Screenshot 2022-05-19 at 12.07.23.png

Dashboard Logs

Screenshot 2022-05-19 at 12.01.16.png

Screenshot 2022-05-19 at 12.01.39.png

Screenshot 2022-05-19 at 12.02.18.png

Screenshot 2022-05-19 at 12.45.58.png

STP Convergence

STP convergence will be tested using several methods as outlined below. Please see the following table for steady-state of the Campus LAN before testing:

    Bridge ID STP Status
C9500-01 Master 4096:b0c5.3c60.fba0 Screenshot 2022-05-19 at 14.58.07.png
C9500-02 Member 4096.40b5.c111.01e0
MS390-01 Master 61440:2c3f.0b04.7e80

STP ROOT


b0:c5:3c:60:fb:a0 (priority 4096)
Blocking ports
None
MS390-02 Member 61440:2c3f.0b0f.ec00
C9300-01 Master 61440:a4b4.395f.2a8b

STP ROOT


b0:c5:3c:60:fb:a0 (priority 4096)
Blocking ports
None
C9300-02 Member 61440:4ce1.75b0.ba00
Client Device   IP Address: 10.0.20.4

STP Before Test'.png

Introducing loops (Access to Core)

STP Test 1'.png

A loop was introduced by adding a link between C9300-01 /NM Port 2 and C9500 Core Stack / Port TwentyFiveGigE1/0/22 (Please note that for the purposes of this test, the interface has been unshut and configured as a Trunk port with Native VLAN 1 with STP guards on that interface)

9500-01#show ip interface brief | in TwentyFiveGigE1/0/22
TwentyFiveGigE1/0/22   unassigned      YES unset  up                    up
ow9500-01#show run interface TwentyFiveGigE1/0/22
Building configuration...


Current configuration : 132 bytes
!
interface TwentyFiveGigE1/0/22
switchport trunk allowed vlan 1,10,20,30,40
switchport mode trunk
spanning-tree guard root
end


9500-01#
9500-01#show spanning-tree


MST0
  Spanning tree enabled protocol mstp
  Root ID    Priority    4096
             Address     b0c5.3c60.fba0
             This bridge is the root
             Hello Time   2 sec  Max Age 20 sec  Forward Delay 15 sec


  Bridge ID  Priority    4096   (priority 4096 sys-id-ext 0)
             Address     b0c5.3c60.fba0
             Hello Time   2 sec  Max Age 20 sec  Forward Delay 15 sec


Interface           Role Sts Cost      Prio.Nbr Type
------------------- ---- --- --------- -------- --------------------------------
Twe1/0/1            Desg FWD 2000      128.193  P2p
Twe1/0/2            Desg FWD 2000      128.194  P2p
Twe1/0/22           Desg FWD 2000      128.214  P2p
Twe2/0/1            Back BLK 2000      128.385  P2p
Twe2/0/2            Back BLK 2000      128.386  P2p
Po1                 Desg FWD 10000     128.2089 P2p
Po2                 Desg FWD 1000      128.2090 P2p

Interface Twe1/0/22 is in STP FWD state (As expected since this is the Root bridge)

Screenshot 2022-05-19 at 14.59.56.png



Interface 26 is in STP BLK state (As expected since the Ether-channel is in FWD state)

Screenshot 2022-05-19 at 14.58.33.png

No impact on traffic flow for wireless clients



Introducing Loops (Access Layer, with STP Guard: Loop Guard)

STP Test 2'.png

For the purposes of this test and in addition to the previous loop connections, the following ports were connected:

MS390-01 / Port 11 < - > C9300-01 / Port 11

Screenshot 2022-05-19 at 15.24.34.png

Port 11 on MS390-01 in STP BLK state (Bridge ID: 61440:2c3f.0b04.7e80)

Screenshot 2022-05-19 at 15.26.31.png

Port 11 on C9300-01 in STP FWD state (Bridge ID: 61440:a4b4.395f.2a8b)

Screenshot 2022-05-19 at 15.36.52.png

Screenshot 2022-05-19 at 15.37.20.png

Packet capture on MS390-01 / Port 11 shows that Bridge ID: 61440:4ce1.75b0.ba00 is relaying the Root bridge BPDUs with Root Bridge ID: 4096:b0c5.3c60.fba0



Introducing Loops (Access Layer, without STP Guard)

STP Test 3'.png

For the purposes of this test and in addition to the previous loop connections, the following ports were connected:

MS390-02 / Port 12 < - > C9300-02 / Port 12

Screenshot 2022-05-19 at 15.46.29.png

MS390-02 / Port 12 is in STP BLK state (Bridge ID: 61440:2c3f.0b0f.ec00)

Screenshot 2022-05-19 at 15.46.43.png

C9300-02 / Port 12 is in STP FWD state (Bridge ID: 61440:4ce1.75b0.ba00)



Introducing Loops (Core Layer)

STP Test 4'.png

For the purpose of this test and in addition to the previous loop connections, the following ports were connected:

Port Twe1/0/10 to port Twe2/0/10 on the C9500 Core switches.

9500-01#show run interface Twe1/0/10
Building configuration...


Current configuration : 132 bytes
!
interface TwentyFiveGigE1/0/10
switchport trunk allowed vlan 1,10,20,30,40
switchport mode trunk
spanning-tree guard root
end


9500-01#show run interface Twe2/0/10
Building configuration...


Current configuration : 132 bytes
!
interface TwentyFiveGigE2/0/10
switchport trunk allowed vlan 1,10,20,30,40
switchport mode trunk
spanning-tree guard root
end


9500-01#
9500-01#show ip interface brief | in TwentyFiveGigE1/0/10
TwentyFiveGigE1/0/10   unassigned      YES unset  up                    up
9500-01#
9500-01#show ip interface brief | in TwentyFiveGigE2/0/10
TwentyFiveGigE2/0/10   unassigned      YES unset  up                    up
9500-01#show spanning-tree


MST0
  Spanning tree enabled protocol mstp
  Root ID    Priority    4096
             Address     b0c5.3c60.fba0
             This bridge is the root
             Hello Time   2 sec  Max Age 20 sec  Forward Delay 15 sec


  Bridge ID  Priority    4096   (priority 4096 sys-id-ext 0)
             Address     b0c5.3c60.fba0
             Hello Time   2 sec  Max Age 20 sec  Forward Delay 15 sec


Interface           Role Sts Cost      Prio.Nbr Type
------------------- ---- --- --------- -------- --------------------------------
Twe1/0/1            Desg FWD 2000      128.193  P2p
Twe1/0/2            Desg FWD 2000      128.194  P2p
Twe1/0/10           Desg BLK 2000      128.202  P2p
Twe1/0/22           Desg FWD 2000      128.214  P2p
Twe2/0/1            Back BLK 2000      128.385  P2p
Twe2/0/2            Back BLK 2000      128.386  P2p
Twe2/0/10           Desg BKN*2000      128.394  P2p *ROOT_Inc
Po1                 Desg FWD 10000     128.2089 P2p
Po2                 Desg FWD 1000      128.2090 P2p


9500-01#show spanning-tree interface Twe2/0/10 detail
Port 394 (TwentyFiveGigE2/0/10) of MST0 is broken  (Root Inconsistent)
   Port path cost 2000, Port priority 128, Port Identifier 128.394.
   Designated root has priority 4096, address 4ce1.75b0.ba00
   Designated bridge has priority 8192, address b0c5.3c60.fba0
   Designated port id is 128.394, designated path cost 0
   Timers: message age 4, forward delay 0, hold 0
   Number of transitions to forwarding state: 0
   Link type is point-to-point by default, Internal
   PVST Simulation is enabled by default
   Root guard is enabled on the port
   BPDU: sent 2592, received 5175
9500-01#



Introducing Rogue Bridge in VLAN 1

STP Test 5'.png

For the purpose of this test and in addition to the previous loop connections, the Bridge priority on C9300 Stack will be reduced to 4096 (likely root) and increasing the Bridge priority on C9500 to 8192.

  • Downlinks on C9500 are configured with STP Root Guard
  • Access Layer Links (Stack to Stack) are configured with STP Loop Guard + UDLD
9500-01(config)#spanning-tree mst 0 priority 8192
9500-01(config)#end
9500-01#show spanning-tree


MST0
  Spanning tree enabled protocol mstp
  Root ID    Priority    8192
             Address     b0c5.3c60.fba0
             This bridge is the root
             Hello Time   2 sec  Max Age 20 sec  Forward Delay 15 sec


  Bridge ID  Priority    8192   (priority 8192 sys-id-ext 0)
             Address     b0c5.3c60.fba0
             Hello Time   2 sec  Max Age 20 sec  Forward Delay 15 sec


Interface           Role Sts Cost      Prio.Nbr Type
------------------- ---- --- --------- -------- --------------------------------
Twe1/0/1            Desg FWD 2000      128.193  P2p
Twe1/0/10           Desg FWD 2000      128.202  P2p
Twe1/0/22           Desg FWD 2000      128.214  P2p
Twe2/0/1            Back BLK 2000      128.385  P2p
Twe2/0/10           Desg BKN*2000      128.394  P2p *ROOT_Inc
Po1                 Desg FWD 10000     128.2089 P2p
Po2                 Desg FWD 1000      128.2090 P2p




9500-01#

Screenshot 2022-05-19 at 17.21.48.png

9500-01#show spanning-tree


MST0
  Spanning tree enabled protocol mstp
  Root ID    Priority    8192
             Address     b0c5.3c60.fba0
             This bridge is the root
             Hello Time   2 sec  Max Age 20 sec  Forward Delay 15 sec


  Bridge ID  Priority    8192   (priority 8192 sys-id-ext 0)
             Address     b0c5.3c60.fba0
             Hello Time   2 sec  Max Age 20 sec  Forward Delay 15 sec


Interface           Role Sts Cost      Prio.Nbr Type
------------------- ---- --- --------- -------- --------------------------------
Twe1/0/1            Desg FWD 2000      128.193  P2p
Twe1/0/2            Desg FWD 2000      128.194  P2p
Twe1/0/10           Desg FWD 2000      128.202  P2p
Twe1/0/22           Desg BKN*2000      128.214  P2p *ROOT_Inc
Twe2/0/1            Back BLK 2000      128.385  P2p
Twe2/0/2            Back BLK 2000      128.386  P2p
Twe2/0/10           Desg BKN*2000      128.394  P2p *ROOT_Inc
Po1                 Desg FWD 10000     128.2089 P2p
Po2                 Desg FWD 1000      128.2090 P2p




9500-01#
9500-01#show spanning-tree interface Twe1/0/22 detail
Port 214 (TwentyFiveGigE1/0/22) of MST0 is broken  (Root Inconsistent)
   Port path cost 2000, Port priority 128, Port Identifier 128.214.
   Designated root has priority 4096, address 4ce1.75b0.ba00
   Designated bridge has priority 8192, address b0c5.3c60.fba0
   Designated port id is 128.214, designated path cost 0
   Timers: message age 5, forward delay 0, hold 0
   Number of transitions to forwarding state: 2
   Link type is point-to-point by default, Internal
   PVST Simulation is enabled by default
   Root guard is enabled on the port
   BPDU: sent 4611, received 319
9500-01#

C9500 Core Stack is still the Root Bridge (i.e. The root Bridge placement has been enforced).

Downlink to C9300-01 is in STP Inconsistent State

Screenshot 2022-05-19 at 17.33.56.png

Screenshot 2022-05-19 at 17.41.46.png

C9300 Stack is root

All C9300 ports are in FWD state



Screenshot 2022-05-19 at 17.34.22.png

Screenshot 2022-05-19 at 17.35.10.png

C9300 Stack is root for MS390

All MS390 to C9300 are in STP BLK state

Screenshot 2022-05-19 at 17.22.48.png

Wireless client traffic flow disrupted for about 30 secs

Reverting all configuration back to original state:

  1. Disconnect and shutdown interface TwentyFiveGigE1/0/22
  2. Disconnect port 11 on MS390-01 and C9300-01 and remove Loop Guard and UDLD
  3. Disconnect port 12 on MS390-02 and C9300-02
  4. Disconnect and revert port TwentyFiveGigE1/0/10 and TwentyFiveGigE20/10 back to access with VLAN 1 and shutdown
  5. Change MST priority on C9300 stack to 61440
  6. Change MST priority on C9500 Core Stack to 4096



High Availability and Failover

Here's the steady-state physical architecture for reference:

STP Before Test'.png

MX WAN Edge Failover

MX HA test.png

Screenshot 2022-05-23 at 19.11.45.png

Screenshot 2022-05-23 at 19.08.33.png



Client traffic was very briefly disrupted during failover event (1 packet drop)



MX HA test 2.png



Screenshot 2022-05-23 at 19.11.45.png

Screenshot 2022-06-06 at 14.34.12.png

Client traffic disrupted for about 1-3 secs

C9500 Core Stack Loss of Uplink

HA Test 1.png

For the purpose of this test, ports TwentyFiveGigE1/0/1 and TwentyFiveGigE1/0/2 will be disconnected.

9500-01#show ip interface brief
TwentyFiveGigE1/0/1    unassigned      YES unset  down                  down
TwentyFiveGigE1/0/2    unassigned      YES unset  down                  down
TwentyFiveGigE2/0/1    unassigned      YES unset  up                    up
TwentyFiveGigE2/0/2    unassigned      YES unset  up                    up
9500-01#show switch
Switch/Stack Mac Address : b0c5.3c60.fba0 - Local Mac Address
Mac persistency wait time: Indefinite
                                             H/W   Current
Switch#   Role    Mac Address     Priority Version  State
-------------------------------------------------------------------------------------
*1       Active   b0c5.3c60.fba0     5      V02     Ready
2       Standby  40b5.c111.01e0     1      V02     Ready






9500-01#

Screenshot 2022-05-19 at 18.20.49.png

Wireless client traffic flow disrupted for about 30 secs



C9300 Stack Loss of Uplink

HA Test 2.png

For the purpose of this test, NM Port 1 on C9300-01 (Master switch) will be disconnected.


Wireless client traffic flow disrupted for about 30 secs



MS390 Stack Loss of Uplink

HA Test 3.png

For the purpose of this test, port 1 on MS390-01 (Master switch) will be disconnected.

Screenshot 2022-05-19 at 18.41.37.png

Wireless client traffic to the internet disrupted for about 2 secs

Screenshot 2022-05-19 at 18.41.46.png

Wireless client traffic on Campus LAN disrupted for about 1 sec

QoS

For the purpose of this test, packet capture will be taken between two clients running a Webex session. Packet capture will be taken on the Edge (i.e. MR wireless and wired interfaces) then on the Access (i.e. the MS390 or C9300 uplink port) then on the MX WAN Downlink and finally on the MX WAN Uplink. The table below shows the testing components and the expected QoS behavior:

Client



Application



Access Point (Wired)

Expected QoS

Access Switch Uplink Port

Expected QoS

MX Appliance  Uplink Port

Expected QoS

Client #1 (10.0.20.2)

iPhone 11 (cc:66:0a:3e:44:69)

Webex (UDP 9000) AP3_Zone2 / AF41 / DSCP 34 C9300-02 (Port 25) / AF41 / DSCP 34 AF41 / DSCP 34
iTunes AP3_Zone2 / AF21 / DSCP 18 C9300-02 (Port 25) / AF21 / DSCP 18 AF21 / DSCP 18

Client #2 (10.0.20.3)

Macbook Pro (3c:22:fb:30:da:69)

Webex (UDP 9000) AP2_Zone1 / AF41 / DSCP 34 MS390-01 (Port 1) / AF41 / DSCP 34 AF41 / DSCP 34
Dropbox AP2_Zone1 / AF0 / DSCP 0 MS390-01 (Port 1) / AF0 / DSCP 0 AF0 / DSCP 0



Access Point Wireless Port pcaps

Client #1

Screenshot 2022-05-20 at 12.29.58.png

Screenshot 2022-05-20 at 12.38.25.png

Please note that QoS values in this case could be arbitrary as they are upstream (i.e. Client to AP) unless you have configured Wireless Profiles on the client devices. Please check the following article for more details on creating Wireless Profiles and using FastLane with Meraki Systems Manager.

Client #2

Screenshot 2022-05-20 at 13.02.04.png

Screenshot 2022-05-20 at 12.54.06.png

Please note that QoS values in this case could be arbitrary as they are upstream (i.e. Client to AP) unless you have configured Wireless Profiles on the client devices. Please check the following article for more details on creating Wireless Profiles and using FastLane with Meraki Systems Manager.

Access Point Wired Port pcaps

Client #1

Screenshot 2022-05-20 at 11.47.03.png

Screenshot 2022-05-20 at 11.50.15.png

Client #2

Screenshot 2022-05-20 at 11.42.32.png

Screenshot 2022-05-20 at 11.55.10.png

Access Switch Uplink pcaps

Client #1

Screenshot 2022-06-09 at 16.19.19.png

Screenshot 2022-06-09 at 16.20.33.png

Client #2

Screenshot 2022-05-20 at 13.43.45.png

Screenshot 2022-05-20 at 13.47.23.png

MX appliance Downlink pcaps

Client #1

Screenshot 2022-05-20 at 13.15.52.png

Screenshot 2022-05-20 at 13.25.05.png

Client #2

Screenshot 2022-05-20 at 13.26.17.png

Screenshot 2022-05-20 at 13.27.07.png

MX Appliance Uplink pcaps

Screenshot 2022-05-20 at 13.30.46.png

Screenshot 2022-05-20 at 13.38.16.png



Option 2 -  STP Based Convergence without Native VLAN 1

Overview

This option is similar to the above except that the default VLAN 1 does not exist and the Native VLAN is replaced with another non-trivial VLAN assignment which can be considered a more preferable option for customers as it's separate from the Management VLAN. Also, a Transit VLAN has been introduced between the C9500 Core Stack and the MX WAN Edge to facilitate the separation between Management traffic (VLAN 100) and Client Traffic (Transit VLAN 192)

This design is based on consistent STP protocols running in this Hybrid Campus, as such Multiple Spanning Tree Protocol (MST, aka 802.1s) will be configured since it is supported on both the Meraki and Catalyst platforms.

It is recommended to run the same STP protocol across all switches (MST in this case). Running any other protocol on Catalyst (e.g. PVST) can introduce undesired behaviour and can be more difficult to troubleshoot.

Running PVST/PVST+ on Catalyst in this design will result in very slow STP convergence and create an inconsistent STP domain due to the fact that PVST/PVST+ backward compatible BPDUs only run in VLAN 1 tagged whereas Meraki switches will send 802.1D BPDUs in the Native VLAN untagged

You should consider this option if you need to steer away from having VLAN 1 in your Campus LAN. Here's some things to consider about this design option:

Pros:

  • Flexibility in your VLAN design
  • Facilitates Wireless Roaming across the whole campus
  • Easier to deploy and consistent configuration across the entire Campus LAN
  • Minimize the risk of VLAN hopping
  • Considered more secure due to separation between Management traffic and Client traffic

Cons

  • Non-deterministic route failover
  • Slow convergence
  • STP can be tricky given that the Hybrid Campus LAN consists of different switching platforms

 Since STP will be used as a loop prevention mechanism, all SVIs will be created on the collapsed core layer with the exception of the Management (aka Infrastructure VLAN) and Transit VLAN.

Logical Architecture

The following diagram shows the logical architecture for a STP based convergence Campus LAN Design with hybrid components:

Hybrid Campus HLD - Option 1b (No VLAN 1).png



Physical Architecture

The following diagram shows the physical architecture and port list for this design:

Hybrid Campus HLD - Option 1 (Physical revised).pngHybrid Campus HLD - Option 1 (Physical revised).png

Assumptions

The following assumptions has been taken into account:

  • VLAN 1 should not be configured on any switchport in this Campus LAN
  • It is assumed that Wireless roaming is required everywhere in the Campus
  • It is assumed that VLANs are spanning across multiple zones
  • Corporate SSID (Broadcast in all zones) users are assigned VLAN 10 on all APs. CoA VLAN is VLAN 30 (Via Cisco ISE)
  • BYOD SSID (Broadcast in all zones) users are assigned VLAN 20 on all APs. CoA VLAN is VLAN 30 (Via Cisco ISE)
  • Guest SSID (Broadcast in all zones) users are assigned VLAN 30 on all APs
  • IoT SSID (Broadcast in all zones) users are assigned VLAN 40 on all APs
  • Access Switches will be running in Layer 2 mode (No SVIs or DHCP)
  • MS390 Access Switches physically stacked together
  • Converted C9300 Access Switches physically stacked together
  • C9500 Core Switches with Stackwise-virtual stacking using SVLs
  • Access Switch uplinks are in trunk mode with native VLAN = VLAN 1 (Management VLAN*)
  • STP root is at Distribution/Collapsed-core
  • Distribution/Collpased-core uplinks are in Trunk mode with Native VLAN = VLAN 1 (Management VLAN)
  • All VLAN SVIs are hosted on the core layer
  • Network devices will be assigned fixed IPs from the management VLAN DHCP pool. Default Gateway is 10.0.100.1
Network Segments

Please check the following table for more information about the network segments (e.g. VLANs, SVIs, etc) for this design:

Network Segment VLAN ID Subnet Default Gateway Notes
Infrastructure 100 10.0.100.0/24 10.0.100.1 SVI hosted on edge MX
Transit 192 192.168.0.0/24 192.168.0.1 SVI hosted on edge MX

Corporate Devices

(Wireless & Wired)

10



10.0.10.0/24



10.0.10.1



SVI hosted on core switches



BYOD Wireless Devices 20 10.0.20.0/24 10.0.20.1 SVI hosted on core switches
Guest Wireless Devices 30 10.0.30.0/24 10.0.30.1 SVI hosted on core switches
IoT Wireless Devices 40 10.0.40.0/24 10.0.40.1 SVI hosted on core switches

Please size your subnets based on your own requirements. The above table is for illustration purposes only

In this example, the Infrastructure VLAN has been created on the Edge MX. Alternatively, you can create the SVI on the C9500 Core Stack



Quality of Service
Application MR Access Switches Core Switches MX Appliance

SIP (Voice)



EF

DSCP 46

AC_Vo

Trust incoming values

DSCP 46

CoS 5

Trust incoming values



EF

DSCP 45

LLQ

Unlimited

Webex and Skype



AF41

DSCP 34

AC_VI

Trust incoming values

DSCP 34

CoS 4

Trust incoming values



AF41

DSCP 34

High Priority

All Video and Music



AF21

DSCP 18

AC_BE

Trust incoming values

DSCP 18

CoS 2

Trust incoming values



AF21

DSCP 18

Medium Priority

5Mbps / Client

Software Updates



AF11

DSCP 10

AC_BK

Trust incoming values

DSCP 10

CoS 1

Trust incoming values



AF11

DSCP 10

Low Priority

10Mbps / Client

Please note that the above table is for illustration purposes only. Please configure QoS based on your network requirements. Refer to the following articles for more information on traffic shaping and QoS settings on Meraki devices:

SD-WAN and traffic shaping

MS QoS and traffic shaping

MR traffic shaping rules

Device List
Device Name Management IP address Notes
MX250 Primary WAN Edge 10.0.100.1 warm-spare
MX250 Spare WAN Edge
C9500-24YCY C9500-01 10.0.100.2 Stackwise Virtual (C9500-Core-Stack)
C9500-24YCY C9500-02
MS390-24P MS390-01 10.0.100.3 Physical Stacking (Stack1-MS390)
MS390-24P MS390-02
C9300-24P C9300-01 100.100.4 Physical Stacking (Stack2-C9300)
C9300-24P C9300-02
MR55 AP1_Zone1 10.0.100.5 Tag = Zone1
C9166 (eq MR57) AP2_Zone1 10.0.100.6 Tag = Zone1
MR55 AP3_Zone2 10.0.100.7 Tag = Zone2
C9166 (eq MR57) AP4_Zone2 10.0.100.8 Tag = Zone2
Access Policies
Access Policy Name Purpose Configuration Notes

Wired-1x



802.1x Authentication via Cisco ISE for wired clients that support 802.1x



Authentication method = my Radius server

Radius CoA = enabled

Host mode = Single-Host

Access Policy type = 802.1x

Guest VLAN = 30

Failed Auth VLAN = 30

Critical Auth VLAN = 30

Suspend Port Bounce = Enabled

Voice Clients = Bypass authentication

Walled Garden = enabled



Cisco ISE authentication and posture checks



Wired-MAB



MAB Authentication via Cisco ISE for wired clients that do not support 802.1x



Authentication method = my Radius server

Radius CoA = disabled

Host mode = Single-Host

Access Policy type = MAC authentication bypass

Guest VLAN = 30

Failed Auth VLAN = 30

Critical Auth VLAN = 30

Suspect Port Bounce = Enabled

Voice Clients = Bypass authentication

Walled Garden = disabled

Cisco ISE authentication





Port List
Device Name Port  Far-end Port Details Notes
Primary WAN Edge / Spare WAN Edge 1 WAN1   VIP1
Primary WAN Edge / Spare WAN Edge 2 WAN2   VIP2
Primary WAN Edge

19



9500-01 (Port Twe1/0/1)



Trunk (Native VLAN 100)

Allowed VLANs 100, 192

Downlink



20



9500-02 (Port Twe2/0/1)



Trunk (Native VLAN 100)

Allowed VLANs 100, 192

Downlink



Spare WAN Edge 19

9500-01 (Port Twe1/0/2)



Trunk (Native VLAN 100)

Allowed VLANs 100, 192

Downlink



20

9500-02 (Port Twe2/0/2)



Trunk (Native VLAN 100)

Allowed VLAns 100, 192

Downlink



9500-01

Twe1/0/1



Primary WAN Edge (Port 19)



switchport mode trunk

switchport trunk native vlan 100

switchport trunk allowed vlan 100,192

Uplink



Twe1/0/2



Spare WAN Edge (Port 19)



switchport mode trunk

switchport trunk native vlan 100

switchport trunk allowed vlan 100,192

Uplink



9500-02

Twe2/0/1

Primary WAN Edge (Port 20)



switchport mode trunk

switchport trunk native vlan 100

switchport trunk allowed vlan 100,192

Uplink



Twe2/0/2

Spare WAN Edge (Port 20)



switchport mode trunk

switchport trunk native vlan 100

switchport trunk allowed vlans 100, 192

Uplink







9500-01



Twe1/0/23



MS390-01 (Port 1)



switchport mode trunk

switchport trunk native vlan 100

switchport trunk allowed vlans 10,20,30,40, 100

channel-group 1 mode active

spanning-tree guard root

auto qos trust dscp

policy static sgt 2 trusted

Downlink



Twe1/0/24



C9300-01 (Port 1)



switchport mode trunk

switchport trunk native vlan 100

switchport trunk allowed vlans 10,20,30,40,100

channel-group 2 mode active

spanning-tree guard root

auto qos trust dscp

policy static sgt 2 trusted

Downlink







9500-02



Twe2/0/23



MS390-02 (Port 1)



switchport mode trunk

switchport trunk native vlan 100

switchport trunk allowed vlans 10,20,30,40,100

channel-group 1 mode active

spanning-tree guard root

auto qos trust dscp

policy static sgt 2 trusted

Downlink



Twe2/0/24



C9300-02 (Port 1)



switchport mode trunk

switchport trunk native vlan 100

switchport trunk allowed vlans 10,20,30,40,100

channel-group 2 mode active

spanning-tree guard root

auto qos trust dscp

policy static sgt 2 trusted

Downlink



9500-01

Hu1/0/25

C9500-02 (Port Hu2/0/26) stackwise-virtual link 1 Stackwise Virtual

Hu1/0/26

C9500-02 (Port Hu2/0/25) stackwise-virtual link 1 Stackwise Virtual
9500-02

Hu2/0/25

C9500-01 (Port Hu1/0/26) stackwise-virtual link 1 Stackwise Virtual

Hu2/0/26

C9500-01 (Port Hu1/0/25) stackwise-virtual link 1 Stackwise Virtual

MS390-01

MS390-02

C9300-01

C9300-02

5-8



Wired Clients



Access (Data VLAN 10)

Access Policy = Wired-1x

PoE Enabled

STP BPDU Guard

Tag = Wired Clients 802.1x

AdP: Corp



For wired clients supporting 802.1x



MS390-01

MS390-02

C9300-01

C9300-02

9-12



Wired Clients



Access (Data VLAN 10)

Access Policy = MAB

PoE Enabled

STP BPDU Guard

Tag = Wired Clients MAB

AdP: Corp

For wired clients that do not support 802.1x

MS390-01

MS390-02

C9300-01

C9300-02

13-16



MR

Trunk (Native VLAN 100)

PoE Enabled

STP BPDU Guard

Tag = MR WLAN

Peer SGT Capable

AdP: Infrastructure

Allowed VLANs: 10,20,30,40,100





MS390-01



1



9500-01 (Port Twe1/0/23)



Trunk (Native VLAN 100)

PoE Disabled

Name: Core 1

Tag = Uplink

Peer SGT Capable

AdP: Infrastructure

Allowed VLANs: 10,20,30,40,100



MS390-02



1



9500-02 (Port Twe2/0/23)



Trunk (Native VLAN 100)

PoE Disabled

Name: Core 2

Tag = Uplink

Peer SGT Capable

AdP: Infrastructure

Allowed VLANs: 10,20,30,40,100



C9300-01



C9300-01 / C9300-NM-8X / 1



9500-01 (Port Twe1/0/24)



Trunk (Native VLAN 100)

PoE Disabled

Name: Core 1

Tag = Uplink

Peer SGT Capable

AdP: Infrastructure

Allowed VLANs: 10,20,30,40,100



C9300-02



C9300-02 / C9300-NM-8X / 1



C9500-02 (Port Twe2/0/24)



Trunk (Native VLAN 100)

PoE Disabled

Name: Core 2

Tag = Uplink

Peer SGT Capable

AdP: Infrastructure

Allowed VLANs: 10,20,30,40,100



Wireless SSID List
SSID Name Broadcast Configuration Notes Firewall & Traffic Shaping

Acme Corp



All APs



Association = Enterprise with my Radius server

Encryption = WPA2 only

Splash Page = Cisco ISE

Radius CoA = Enabled

SSID mode = Bridge mode

VLAN Tagging = 10 (ISE Override)

AdP Group = 10:Corp

Radius override = Enabled

Mandatory DHCP = Enabled

Layer 2 isolation = Disabled

Allow Clients access LAN = Allow

Traffic Shaping = Enabled with default settings

Cisco ISE Authentication and posture checks (172.31.16.32/1812)

Layer 2 Isolation = Disabled

Allow Access to LAN = Enabled

Per-Client Bandwidth Limit = 50Mbps

Per-SSID Bandwidth Limit = Unlimited

Enable Default Traffic Shaping rules

SIP - EF (DSCP 46)

Software Updates - AF11 (DSCP 10)

Webex & Skype - AF41 (DSCP 34)

All Video and Music - AF21 (DSCP 18)



Acme BYOD



All APs



Association = Enterprise with my Radius server

Encryption = WPA2 only

802.11w = Enabled

Splash Page = Cisco ISE

SSID mode = Bridge mode

VLAN Tagging = 20

AdP Group = 20:BYOD

Radius override = Disabled

Mandatory DHCP = Enabled

Layer 2 isolation = Disabled

Allow Clients access LAN = Allow

Traffic Shaping = Enabled with default settings

Cisco ISE Authentication (via Azure AD) and posture checks.

Dynamic GP assignment (Radius attribute = Airospace-ACL-NAME)

Layer 2 Isolation = Disabled

Allow Access to LAN = Enabled

Per-Client Bandwidth Limit = 50Mbps

Per-SSID Bandwidth Limit = Unlimited

Enable Default Traffic Shaping rules

SIP - EF (DSCP 46)

Software Updates - AF11 (DSCP 10)

Webex & Skype - AF41 (DSCP 34)

All Video and Music - AF21 (DSCP 18)

Guest



All APs



Association = Enterprise with my Radius server

Encryption = WPA1 and WPA2

802.11w = Enabled

Splash Page = Click-Through

SSID mode = Bridge mode

VLAN Tagging = 30

AdP Group = 30:Guest

Radius override = Disabled

Mandatory DHCP = Enabled

Layer 2 isolation = Enabled

Allow Clients access LAN = Deny

Per SSID limit = 100Mbps

Traffic Shaping = Enabled with default settings

Meraki Authentication

Layer 2 Isolation = Enabled

Allow Access to LAN = Disabled

Per-Client Bandwidth Limit = 5Mbps

Per-SSID Bandwidth Limit = 100Mbps

Enable Default Traffic Shaping rules

SIP - EF (DSCP 46)

Software Updates - AF11 (DSCP 10)

Webex & Skype - AF41 (DSCP 34)

All Video and Music - AF21 (DSCP 18)

Acme IoT



All APs



Association = identity PSK with Radius

Encryption = WPA1 and WPA2

802.11r = Disabled

802.11w = Disabled

Splash Page = None

Radius CoA = Disabled

SSID mode = Bridge mode

VLAN Tagging = 40

AdP Group = 40:IoT

Radius override = Disabled

Mandatory DHCP = Enabled

Allow Clients access LAN = Deny

Per SSID limit = 10Mbps

Traffic Shaping = Enabled with default settings

Cisco ISE is queried at association time to obtain a passphrase for a device based on its MAC address.

Dynamic GP assignment (Radius attribute Filter-Id)



Layer 2 Isolation = Disabled

Allow Access to LAN = Enabled

Per-Client Bandwidth Limit = 5Mbps

Per-SSID Bandwidth Limit = Unlimited

Enable Default Traffic Shaping rules

SIP - EF (DSCP 46)

Software Updates - AF11 (DSCP 10)

Webex & Skype - AF41 (DSCP 34)

All Video and Music - AF21 (DSCP 18)

The above configuration is for illustration purposes only. Please configure your SSIDs based on your own requirements (mode, IP assignment, etc)

Please note that Adaptive Policy on MR requires MR-ADV license. For more information about the requirements, please refer to this document



Configuration and Implementation Guidelines

The following section will take you through the steps to amend your design by removing VLAN 1 and creating the desired new Native VLAN (e.g. VLAN 100) across your Campus LAN. The steps below should not be followed in isolation as first you have to complete the configuration of your Campus LAN based on the above previous section. The below steps are meant to replace VLAN 1 in your Campus LAN with a new one.

It is vital to follow the below steps in chronological order. This is to avoid loss of connectivity to downstream devices and consequently the requirement to do a factory reset

This will result in traffic interruption. It is therefore recommended to do this in a maintenance window where applicable.

  1. Login to your dashboard account
  2. MX Addressing & VLANs; Navigate to Security & SD-WAN > Configure > Addressing & VLANs, then click on VLANs then click on Add VLAN to add your new infrastructure and Transit VLANs then click on Create. Please do not delete the existing VLAN 1 yet. Then, click on Save at the bottom of the page.
    • Modify VLAN 3.png
    • Modify VLAN 4.png
    • Three New UI VLANs.png
    • As seen above, VLAN 1 needs to be kept at this stage to avoid losing connectivity to all downstream devices.
  3. MX Addressing & VLANs; Navigate to Security & SD-WAN > Configure > DHCP, then under VLAN 100 AND 192 click on Fixed IP assignments, and add entries for your network devices. (Tip: You can copy the MAC addresses from VLAN 1 and make sure to add the correct IP assignment to them). Then, click on Save at the bottom of the page.
    • Screenshot 2022-05-23 at 22.24.26.png
    • Screenshot 2022-05-23 at 22.25.44.png
  4. Create VLAN 100 and 192 on your C9500 Core Stack
    • Switch>en
      Switch#conf t
      Enter configuration commands, one per line.  End with CNTL/Z.
      9500-02(config)#interface vlan 100
      9500-02(config-if)#ip address dhcp
      9500-02(config-if)#no shut
      9500-02(config)#interface vlan 192
      9500-02(config-if)#ip address dhcp
      9500-02(config-if)#no shut
      9500-02(config)#vlan 100
      9500-02(config-if)#no shut
      9500-02(config)#vlan 192
      9500-02(config-if)#no shut
      9500-02(config-if)#end
      9500-02#wr mem
      Building configuration...
      [OK]
  5. Navigate to Switching > Configure > Switch ports and filter for MR (if you have tagged the ports accordingly, otherwise select your downlink ports manually), then change the Native VLAN on these switchports from Native VLAN 1 to Native VLAN 100. Also, please add VLAN 100 to the list of Allowed VLANs and remove VLAN 1 from the allowed list of VLANs. Then, click on Save at the bottom of the page.
    • Screenshot 2022-05-23 at 22.44.42.png
    • Please note that this will cause disruption to client traffic
  6. Navigate to Switching > Monitor > Switches and click on the first master switch then change the IP address settings from Static to DHCP and please leave the VLAN field blank. (DO NOT add VLAN 100 at this stage). Then, click on Save at the bottom of the window. Please repeat this for all master switches in your network.
    • Screenshot 2022-05-23 at 22.40.39.png
    • As seen from the above screen shot, the VLAN value has been kept empty at this stage
  7. On your C9500 Core Stack, add an MST instance in VLAN 100 and VLAN 192
    • 9500-01(config)#spanning-tree mst configuration
      9500-01(config-mst)#instance 0 vlan 100
      9500-01(config-mst)#instance 0 vlan 192
      9500-01(config-mst)#name region1
      9500-01(config-mst)#revision 1
      9500-01(config-mst)#exit
      9500-01(config)#spanning-tree mode mst
      9500-01(config)#spanning-tree mst 0 priority 4096
      9500-01(config)#exit
      9500-01#wr mem
      Building configuration...
      [OK]
      9500-01#
  8. Navigate to Switching > Monitor > Switch ports and filter for uplink (if you have tagged the ports accordingly, otherwise select your uplink ports manually), then change the Native VLAN on these switchports from Native VLAN 1 to Native VLAN 100. Also, please add VLAN 100 to the list of Allowed VLANs and remove VLAN 1 from the allowed list of VLANs. Then, click on Save at the bottom of the page.
    • Screenshot 2022-05-23 at 22.44.42.png
    • Please note that this will cause the Access Stacks to go offline on the Meraki dashboard
  9. On your C9500 Core Stack, change the Native VLAN on your downlink Port-channels to VLAN 100
    • 9500-01(config)#interface po1
      9500-01(config-if)#switchport trunk allowed vlan 10,20,30,40,100
      9500-01(config-if)#switchport trunk native vlan 100
      9500-01(config-if)#interface po2
      9500-01(config-if)#switchport trunk allowed vlan 10,20,30,40,100
      9500-01(config-if)#switchport trunk native vlan 100
      9500-01(config)#end
      9500-01#wr mem
      Building configuration...
      [OK]
      9500-01#
  10. Shutdown all uplinks from C9500 Core Stack to Port 19 and 20 on your Secondary WAN Edge appliance to avoid having a dual-active situation.
    • 9500-01(config)#interface twe1/0/24
      9500-01(config-if)#shutdown
      9500-01(config-if)#interface twe2/0/24
      9500-01(config-if)#shutdown
      9500-01(config)#end
      9500-01#
  11. MX Addressing & VLANs; Navigate to Security & SD-WAN > Configure > Addressing & VLANs, then under Per-port settings, change the Native VLAN on your downlinks to VLAN 100 and allow both VLAN 100 and  192
    • Screenshot 2022-05-24 at 14.17.36.png
  12. On your C9500 Core Stack, change the Native VLAN on your uplink to VLAN 100 and allow VLANs 100 and 192 (Please note that you will need to connect to your C9500 Core Stack via console access since VLAN 1 does not exist anymore on the upstream device which is the MX WAN Edge in this case)
    • 9500-01(config)#define interface-range uplinks TwentyFiveGigE1/0/1-2 , TwentyFiveGigE2/0/1-2
      9500-01(config)#interface range macro uplinks
      9500-01(config-if)#switchport mode trunk
      9500-01(config-if)#switchport trunk allowed vlan 100,192
      9500-01(config-if)#switchport trunk native vlan 100
      9500-01(config)#end
      9500-01#wr mem
      Building configuration...
      [OK]
      9500-01#
  13. On your C9500 Core Stack, create a default route for your SVI interfaces:
    • 9500-01(config)#ip route 0.0.0.0 0.0.0.0 192.168.0.1
      9500-01(config)#end
      9500-01#wr mem
      Building configuration...
      [OK]
      9500-01#
  14. Adjust your Static Routes on the MX to point to the transit VLAN instead of VLAN 1. Navigate to Security & SD-WAN > Configure > Addressing & VLANs and under Static routes click on a static route to change the next-hop. Please repeat that for all your static routes. Then, click on Save at the bottom of the page:
    • Screenshot 2022-05-24 at 14.24.52.png
    • Screenshot 2022-05-24 at 14.25.00.png
  15. Wait for your Access Switches to come back online and acquire an IP address in the new Native VLAN 100. Then, proceed to the next step.
  16. Now your switches should have acquired an IP address per the fixed IP assignment configuration. Navigate to Switching > Monitor > Switches then click on the first master switch and then change the IP address settings to static. Then, click on Save at the bottom of the window. Repeat this for all master switches in your network.
    • Screenshot 2022-05-24 at 15.07.57.png
    • Please repeat the above step for all stacks in your network
  17. Navigate to your Primary WAN Edge device and ping 10.0.100.2 to make sure that it is reachable via VLAN 100. Then proceed to the next step.
  18. Unshut the uplinks on your C9500 Core Stack to the Secondary WAN Edge appliance:
    • 9500-01(config)#interface twe1/0/24
      9500-01(config-if)#no shutdown
      9500-01(config-if)#interface twe2/0/24
      9500-01(config-if)#no shutdown
      9500-01(config)#end
      9500-01#
  19. Verify that all your devices have come back online and acquired an IP address in the new Management VLAN. Navigate to Organization > Monitor > Overview then click on the devices tab:
    • Screenshot 2022-05-24 at 15.14.31.png
  20. Navigate to Switching > Configure > Switch settings then change the Management VLAN configuration to VLAN 100. Then, click on Save at the bottom of the page
    • Screenshot 2022-05-24 at 15.12.05.png
  21. Delete VLAN 1 from your MX appliance. Navigate to Security & SD-WAN > Configure > Addressing & VLANs and select the old Management VLAN 1 and then click on Delete. Then, click on Save at the bottom of the page. Deleted VLAN 1.png
  22. Where applicable - Please remember to adjust any routing between your Campus LAN and remote servers (e.g. Cisco ISE for 802.1x auth) as in this case devices will use the new Management VLAN 100 as the source of Radius requests. To verify that you have connectivity to your remote servers, Navigate to Wireless > Monitor > Access points then click on any AP and from the Tools section ping your remote server. Repeat this process from one of your switches.
    • Screenshot 2022-05-24 at 15.44.29.png
    • Screenshot 2022-05-24 at 15.41.56.pngScreenshot 2022-05-24 at 15.43.49.png
    • With the current scope of the design, Cisco ISE resides in AWS and is reachable via AutoVPN which terminates on the vMX in AWS as well. As such, it was required to add a route on the VPC to 10.0.100.0/24 pointing to the vMX
    • Also, please ensure that the new Management VLAN has been enabled with AutoVPN by navigating to Security & SD-WAN > Configure > Site-to-site VPN and ensure that VLAN 100 is enabled.
  23. Where applicable - Please remember to adjust your Radius server configuration (e.g. Cisco ISE) as the Network devices now are grouped in a new Management VLAN 100. Please see the below example for Cisco ISE:
    • Screenshot 2022-05-24 at 15.46.29.png



Option 3 -  Layer 3 Access

Overview

This option assumes that your OSPF domain is extended all the way to your core layer and thus there is no need to rely on STP between your Access and Core for convergence (as long as there are separate broadcast domains between Access and Core). It offers fast convergence since it relies on ECMP rather than STP layer 2 paths. However, it doesn't offer great flexibility in your VLAN design as each VLAN cannot span between multiple stacks/closets.

Pros:

  • Deterministic route failover
  • Fast convergence
  • Relies on either stacking or gateway redundancy at upper layers
  • Complete end to end separation between Management traffic and Client traffic

Cons:

  • VLANs cannot span multiple stacks/closets
  • Your backbone area size can be unmanageable
  • Forces Layer 3 roaming across the Campus LAN
  • Additional VLANs needed to route traffic between Campus LAN layers (aka Transit VLAN)
Logical Architecture

The following diagram shows the logical architecture for a Layer 3 convergence Campus LAN Design with hybrid components:

Layer 3 Access (Revised again Logical).png

Physical Architecture

The following diagram shows the physical architecture and port list for this design:

Hybrid Campus HLD - Option 1 (Physical revised).png

Assumptions

The following assumptions have been taken into account:

  • It is assumed that Wireless roaming is required only within a specific Campus Zone
  • It is assumed that VLANs are NOT spanning across multiple zones
  • There will be NO use of VLAN 1 across the Campus LAN
  • Corporate SSID (Broadcast in all zones) users are assigned VLAN 11/12 based on the AP zone.
  • BYOD SSID (Broadcast in all zones) users are assigned VLAN 21/22 based on the AP zone.
  • Guest SSID (Broadcast in Zone1) users are assigned VLAN 30 on all APs in that zone
  • IoT SSID (Broadcast in zone2) users are assigned VLAN 40 on all APs in that Zone
  • Access Switches will be running Layer 3 (SVIs and DHCP)
  • MS390 Access Switches physically stacked together
  • Converted C9300 Access Switches physically stacked together
  • C9500 Core Switches with Stackwise-virtual stacking using SVLs
  • Access Switch uplinks are in trunk mode with native VLAN = VLAN 1 (Management VLAN)
  • STP root is at Distribution/Collapsed-core
  • Network devices will be assigned fixed IPs from the management VLAN DHCP pool. Default Gateway will vary based on the Zone and stack.
Network Segments

Please check the following table for more information about the network segments (e.g. VLANs, SVIs, etc) for this design:

Network Segment VLAN ID Subnet Default Gateway Notes
Management (Core) 3 10.0.3.0/24 10.0.3.1 SVI hosted on edge MX
Management (Stack1) 100 10.0.100.0/24 10.0.100.1 SVI hosted on edge MX
Management (Stack2) 200 10.0.200.0/24 10.0.200.1 SVI hosted on edge MX

Corporate Devices

(Wireless & Wired)

11

12



10.0.11.0/24

10.0.12.0/24



10.0.11.1

10.0.12.1



SVI hosted on Access switches (Zone 1)



BYOD Wireless Devices



21

22

10.0.21.0/24

10.0.22.0/24

10.0.21.1

10.0.22.1

SVI hosted on Access switches (Zone 2)



Guest Wireless Devices 30 10.0.30.0/24 10.0.30.1 SVI hosted on Access switches (Zone 1)
IoT Wireless Devices 40 10.0.40.0/24 10.0.40.1 SVI hosted on Access switches (Zone 2)

Please size your subnets based on your own requirements. The above table is for illustration purposes only



Quality of Service
Application MR Access Switches Core Switches MX Appliance

SIP (Voice)



EF

DSCP 46

AC_Vo

Trust incoming values

DSCP 46

CoS 5

Trust incoming values



EF

DSCP 45

LLQ

Unlimited

Webex and Skype



AF41

DSCP 34

AC_VI

Trust incoming values

DSCP 34

CoS 4

Trust incoming values



AF41

DSCP 34

High Priority

All Video and Music



AF21

DSCP 18

AC_BE

Trust incoming values

DSCP 18

CoS 2

Trust incoming values



AF21

DSCP 18

Medium Priority

5Mbps / Client

Software Updates



AF11

DSCP 10

AC_BK

Trust incoming values

DSCP 10

CoS 1

Trust incoming values



AF11

DSCP 10

Low Priority

10Mbps / Client

Device List
Device Name Management IP address Notes
MX250 Primary WAN Edge 10.0.3.1 warm-spare
MX250 Spare WAN Edge
C9500-24YCY C9500-01 10.0.3.2 Stackwise Virtual (C9500-Core-Stack)
C9500-24YCY C9500-02
MS390-24P MS390-01 10.0.100.2 Physical Stacking (Stack1-MS390)
MS390-24P MS390-02
C9300-24P C9300-01 10.0.200.2 Physical Stacking (Stack2-C9300)
C9300-24P C9300-02
MR55 AP1_Zone1 10.0.100.3 Tag = Zone1
MR55 AP2_Zone1 10.0.100.4 Tag = Zone1
C9166 (eq MR57) AP3_Zone2 10.0.200.3 Tag = Zone2
C9166 (eq MR57) AP4_Zone2 10.0.200.4 Tag = Zone2
Access Policies
Access Policy Name Purpose Configuration Notes

Wired-1x



802.1x Authentication via Cisco ISE for wired clients that support 802.1x



Authentication method = my Radius server

Radius CoA = enabled

Host mode = Single-Host

Access Policy type = 802.1x

Suspend Port Bounce = Enabled

Voice Clients = Bypass authentication

Walled Garden = enabled



Cisco ISE authentication and posture checks



Wired-MAB



MAB Authentication via Cisco ISE for wired clients that do not support 802.1x



Authentication method = my Radius server

Radius CoA = disabled

Host mode = Single-Host

Access Policy type = MAC authentication bypass

Suspect Port Bounce = Enabled

Voice Clients = Bypass authentication

Walled Garden = disabled

Cisco ISE authentication





Port List
Device Name Port  Far-end Port Details Notes
Primary WAN Edge / Spare WAN Edge 1 WAN1   VIP1
Primary WAN Edge / Spare WAN Edge 2 WAN2   VIP2
Primary WAN Edge  19 9500-01 (Port Twe1/0/1) Trunk (Native VLAN 3) Downlink, allowed VLANs 3,100,200,1923
20 9500-02 (Port Twe2/0/1) Trunk (Native VLAN 3) Downlink, allowed VLANs 3,100,200,1923
Spare WAN Edge 19 9500-01 (Port Twe1/0/2) Trunk (Native VLAN 3) Downlink, allowed VLANs 3,100,200,1923
20 9500-02 (Port Twe2/0/2) Trunk (Native VLAN 3) Downlink, allowed VLANs 3,100,200,1923
9500-01

Twe1/0/1



Primary WAN Edge (Port 19)



switchport mode trunk

switchport trunk native vlan 3

switchport trunk allowed vlan 3,100,200,1923

auto qos trust dscp

policy static sgt 2 trusted

Uplink



Twe1/0/2



Spare WAN Edge (Port 19)



switchport mode trunk

switchport trunk native vlan 3

switchport trunk allowed vlan 3,100,200,1923

auto qos trust dscp

policy static sgt 2 trusted

Uplink



9500-02

Twe2/0/1

Primary WAN Edge (Port 20)



switchport mode trunk

switchport trunk native vlan 3

switchport trunk allowed vlan 3,100,200,1923

auto qos trust dscp

policy static sgt 2 trusted

Uplink



Twe2/0/2

Spare WAN Edge (Port 20)



switchport mode trunk

switchport trunk native vlan 3

switchport trunk allowed vlan 3,100,200,1923

auto qos trust dscp

policy static sgt 2 trusted

Uplink







9500-01



Twe1/0/23



MS390-01 (Port 1)



switchport mode trunk

switchport trunk native vlan 100

switchport trunk allowed vlan 100,1921

channel-group 1 mode active

spanning-tree guard root

auto qos trust dscp

policy static sgt 2 trusted

Downlink



Twe1/0/24



C9300-01 (Port 1)



switchport mode trunk

switchport trunk native vlan 200

switchport trunk allowed vlan 200,1922

channel-group 2 mode active

spanning-tree guard root

auto qos trust dscp

policy static sgt 2 trusted

Downlink







9500-02



Twe2/0/23



MS390-02 (Port 1)



switchport mode trunk

switchport trunk native vlan 100

switchport trunk allowed vlan 100,1921

channel-group 1 mode active

spanning-tree guard root

auto qos trust dscp

policy static sgt 2 trusted

Downlink



Twe2/0/24



C9300-02 (Port 1)



switchport mode trunk

switchport trunk native vlan 200

switchport trunk allowed vlan 200,1922

channel-group 2 mode active

spanning-tree guard root

auto qos trust dscp

policy static sgt 2 trusted

Downlink



9500-01

Hu1/0/25

C9500-02 (Port Hu2/0/26) stackwise-virtual link 1 Stackwise Virtual

Hu1/0/26

C9500-02 (Port Hu2/0/25) stackwise-virtual link 1 Stackwise Virtual
9500-02

Hu2/0/25

C9500-01 (Port Hu1/0/26) stackwise-virtual link 1 Stackwise Virtual

Hu2/0/26

C9500-01 (Port Hu1/0/25) stackwise-virtual link 1 Stackwise Virtual

MS390-01

MS390-02

C9300-01

C9300-02

5-8



Wired Clients



Access (Data VLAN 11/12)

Access Policy = Wired-1x

PoE Enabled

STP BPDU Guard

Tag = Wired Clients 802.1x

AdP: Corp



For wired clients supporting 802.1x



MS390-01

MS390-02

C9300-01

C9300-02

9-12



Wired Clients



Access (Data VLAN 11/12)

Access Policy = MAB

PoE Enabled

STP BPDU Guard

Tag = Wired Clients MAB

AdP: Corp

For wired clients that do not support 802.1x

MS390-01

MS390-02

C9300-01

C9300-02

13-16



MR

Trunk (Native VLAN 100/200)

PoE Enabled

STP BPDU Guard

Tag = MR WLAN

Peer SGT Capable

AdP: Infrastructure

Allowed VLANs: 11/12, 21/22, 30 or 40, 100/200





MS390-01



1



9500-01 (Port Twe1/0/23)



Trunk (Native VLAN 100)

PoE Disabled

Name: Core 1

Tag = Uplink

Peer SGT Capable

AdP: Infrastructure

Allowed VLANs: 100,1921



MS390-02



1



9500-02 (Port Twe2/0/23)



Trunk (Native VLAN 100)

PoE Disabled

Name: Core 2

Tag = Uplink

Peer SGT Capable

AdP: Infrastructure

Allowed VLANs: 100,1921



C9300-01



C9300-01 / C9300-NM-8X / 1



9500-01 (Port Twe1/0/24)



Trunk (Native VLAN 200)

PoE Disabled

Name: Core 1

Tag = Uplink

Peer SGT Capable

AdP: Infrastructure

Allowed VLANs: 200,1922



C9300-02



C9300-02 / C9300-NM-8X / 1



C9500-02 (Port Twe2/0/24)



Trunk (Native VLAN 200)

PoE Disabled

Name: Core 2

Tag = Uplink

Peer SGT Capable

AdP: Infrastructure

Allowed VLANs: 200,1922



Wireless SSID List
SSID Name Broadcast Configuration Notes Firewall & Traffic Shaping

Acme Corp



All APs



Association = Enterprise with my Radius server

Encryption = WPA2 only

Splash Page = Cisco ISE

Radius CoA = Enabled

SSID mode = Bridge mode

VLAN Tagging = 11/12 (based on AP tag)

AdP Group = 10:Corp

Radius override = Enabled

Mandatory DHCP = Enabled

Layer 2 isolation = Disabled

Allow Clients access LAN = Allow

Traffic Shaping = Enabled with default settings

Cisco ISE Authentication and posture checks (172.31.16.32/1812)

Layer 2 Isolation = Disabled

Allow Access to LAN = Enabled

Per-Client Bandwidth Limit = 50Mbps

Per-SSID Bandwidth Limit = Unlimited

Enable Default Traffic Shaping rules

SIP - EF (DSCP 46)

Software Updates - AF11 (DSCP 10)

Webex & Skype - AF41 (DSCP 34)

All Video and Music - AF21 (DSCP 18)



Acme BYOD



All APs



Association = Enterprise with my Radius server

Encryption = WPA2 only

802.11w = Enabled

Splash Page = Cisco ISE

SSID mode = Bridge mode

VLAN Tagging = 21/22 (based on AP tag)

AdP Group = 20:BYOD

Radius override = Disabled

Mandatory DHCP = Enabled

Layer 2 isolation = Disabled

Allow Clients access LAN = Allow

Traffic Shaping = Enabled with default settings

Cisco ISE Authentication (via Azure AD) and posture checks.

Dynamic GP assignment (Radius attribute = Airospace-ACL-NAME)

Layer 2 Isolation = Disabled

Allow Access to LAN = Enabled

Per-Client Bandwidth Limit = 50Mbps

Per-SSID Bandwidth Limit = Unlimited

Enable Default Traffic Shaping rules

SIP - EF (DSCP 46)

Software Updates - AF11 (DSCP 10)

Webex & Skype - AF41 (DSCP 34)

All Video and Music - AF21 (DSCP 18)

Guest



Zone1



Association = Enterprise with my Radius server

Encryption = WPA1 and WPA2

802.11w = Enabled

Splash Page = Click Through

SSID mode = Bridge mode

VLAN Tagging = 30

AdP Group = 30:Guest

Radius override = Disabled

Mandatory DHCP = Enabled

Layer 2 isolation = Enabled

Allow Clients access LAN = Deny

Per SSID limit = 100Mbps

Traffic Shaping = Enabled with default settings

Meraki Authentication

Layer 2 Isolation = Enabled

Allow Access to LAN = Disabled

Per-Client Bandwidth Limit = 5Mbps

Per-SSID Bandwidth Limit = 100Mbps

Enable Default Traffic Shaping rules

SIP - EF (DSCP 46)

Software Updates - AF11 (DSCP 10)

Webex & Skype - AF41 (DSCP 34)

All Video and Music - AF21 (DSCP 18)

Acme IoT



Zone2



Association = identity PSK with Radius

Encryption = WPA1 and WPA2

802.11r = Disabled

802.11w = Disabled

Splash Page = None

Radius CoA = Disabled

SSID mode = Bridge mode

VLAN Tagging = 40

AdP Group = 40:IoT

Radius override = Disabled

Mandatory DHCP = Enabled

Allow Clients access LAN = Deny

Per SSID limit = 10Mbps

Traffic Shaping = Enabled with default settings

Cisco ISE is queried at association time to obtain a passphrase for a device based on its MAC address.

Dynamic GP assignment (Radius attribute Filter-Id)



Layer 2 Isolation = Disabled

Allow Access to LAN = Enabled

Per-Client Bandwidth Limit = 5Mbps

Per-SSID Bandwidth Limit = Unlimited

Enable Default Traffic Shaping rules

SIP - EF (DSCP 46)

Software Updates - AF11 (DSCP 10)

Webex & Skype - AF41 (DSCP 34)

All Video and Music - AF21 (DSCP 18)

The above configuration is for illustration purposes only. Please configure your SSIDs based on your own requirements (mode, IP assignment, etc)

Please note that Adaptive Policy on MR requires MR-ADV license. For more information about the requirements, please refer to this document. a

Configuration and Implementation Guidelines

It is assumed that by this stage, Catalyst devices have been added to dashboard for either Monitoring (e.g. C9500) and/or Management (e.g. C9300). For more information, please refer to the above section.

Before proceeding, please make sure that you have the appropriate licenses claimed into your dashboard account.

  1. Login to your dashboard account (or create an account if you don't have one)
  2. Navigate to Organization > Configure > Inventory
  3. For Co-term license model, click on Claim. And for PDL, please click on AddScreenshot 2022-05-05 at 15.09.57.pngScreenshot 2022-05-05 at 15.12.54.png
  4. Enter the order and/or serial number(s) to claim the devices into your account. For PDL, click Next then please choose to add them to Inventory (Do not add them to a network)
  5. Create a Dashboard Network; Navigate to Organization > Configure > Create network to create a network for your Campus LAN (Or use an existing network if you already have one). If you are creating a new network, please choose "Combined" as this will facilitate a single topology diagram for your Campus LAN. Choose a name (e.g. Campus) and then click Create network
    • Screenshot 2022-05-05 at 15.20.21.pngScreenshot 2022-05-05 at 15.46.32.png
  6. Dashboard Network Settings; Navigate to Network-wide > Configure > General and choose the settings for your network (e.g. Timezone, Traffic Analytics, firmware upgrade day/time, etc)
    • Screenshot 2022-05-05 at 15.43.34.pngScreenshot 2022-05-05 at 15.44.10.pngScreenshot 2022-05-05 at 15.44.41.png
  7. Schedule Firmware Upgrade; Navigate to Organization > Configure > Firmware upgrades to select the firmware settings for your devices such that devices upgrade once they connect to dashboard. Select the device type then click on Schedule upgrade
  8. Add Devices to a Dashboard Network; Navigate to Organization > Configure > Inventory:
    • For Co-term licensing model, select the MS390 and C9300 switches and the Primary WAN Edge then click on Add then choose the Network Campus
    • For PDL licensing model, select the MS390 and C9300 switches and the Primary WAN Edge then click on Change network assignment and then choose the Network Campus
    • Please DO NOT add the Secondary WAN Edge device at this stage
  9. Rename MX Security Appliance; Navigate to Security & SD-WAN > Monitor > Appliance status then click on the edit button to rename the MX to Primary WAN Edge then click on Save
    • Screenshot 2022-05-05 at 16.06.47.png
  10. MX Connectivity; Plug in your WAN uplink(s) on the Primary WAN Edge MX then power it on and wait for it to come online on dashboard. This might take a few minutes as the MX will download its firmware and configuration. Navigate to Security & SD-WAN > Configure > Appliance status and verify that the MX has come online and that its firmware and configuration is up to date.Screenshot 2022-05-05 at 23.02.02.pngScreenshot 2022-05-06 at 09.37.15.png
  11. Rename Access Switches; Navigate to Switching > Monitor > Switches then click on each MS390 and C9300 switch and then click on the edit button on top of the page to rename it per the above table then click on Save such that all your switches have their designated names
    • new switches.jpg
  12. Rename MR APs; Navigate to Wireless > Monitor > Access points then click on each AP and then click on the edit button on top of the page to rename it per the above table then click on Save such that all your APs have their designated names
  13. MR AP Tags; Navigate to Wireless > Monitor >  Access points then click on each AP and then click on the edit button next to TAGS to add Tags to your AP per the above table then click on Save such that all your APs have their designated tags
    • Screenshot 2022-05-05 at 16.16.00.png
  14. MX Addressing & VLANs; Navigate to Security & SD-WAN > Configure > Addressing & VLANs, and in the Deployment Settings menu select Routed mode. Further down the page on the Routing menu, click on VLANs then click on Add VLAN to add your Management and Transit VLANs then click on Create. Then for the per-port VLAN settings, select your downlink ports (19 and 20) and click on Edit and configure them as Trunk with VLAN 3 (Allowed VLANs 3, 100, 200, 1923) and click on Update. Finally, click on Save at the bottom of the page.
    • New Deployment Settings.png
    • Modify VLAN 6.png
    • Modify VLANs 7.png
    • Modify VLANs 8.png
    • Modify VLAN 9.png
    • Please repeat the above steps to create VLANs 100 and 200
    • New VLANs UI 2.png
    • Screenshot 2022-05-18 at 09.50.52.png
    • Screenshot 2022-05-25 at 12.45.15.png
    • Screenshot 2022-06-09 at 17.43.39.png
  15. Campus LAN Static Routes; Create Static Routes for your Campus network by navigating further down the page to Static routes then click on Add Static Route. Start by adding your Corporate LAN subnet then click on Update and then add static routes to all other subnets (e.g. BYOD, Guest and IoT). Finally, click on Save at the bottom of the page. (The Next hop IP that you have used here will be used to create a fixed assignment for the Core Stack later in DHCP settings).
    • Screenshot 2022-05-25 at 12.48.46.png
    • Screenshot 2022-05-25 at 12.49.16.png
    • Screenshot 2022-05-25 at 12.49.45.png
    • Screenshot 2022-05-25 at 12.50.07.png
    • Screenshot 2022-06-09 at 17.40.53.png
  16. Optional - If you are accessing any resources over Meraki SD-WAN, please navigate to Security & SD-WAN > Configure > Site-to-site VPN and enable VPN based on your topology and traffic flow requirements. (In this case, we will configure this Campus as Spoke with Split Tunneling
    • Choose Type: Spoke then click on Add a hub and select your hub site where you need access to resources via VPN. You can also add multiple hubs for resiliency. To choose Split Tunneling, please leave the box next to the Hub unticked as shown below. Screenshot 2022-05-05 at 16.49.11.png
    • Under VPN Settings, choose which subnet to be Enabled in VPN (e.g. Management VLAN will be required for Radius authentication purposes as the MR/MS390/C9300 devices will reach out to Cisco ISE using their management IP). Any Subnet that needs to access resources via VPN must be Enabled otherwise keep it as Disabled.
    • Screenshot 2022-05-26 at 15.03.46.png
    • Finally, click on Save at the bottom of the page
    • On the Hub site, please make sure to advertise the subnets that are required to be reachable via VPN. Navigate to Security & SD-WAN > Configure > Site-to-site VPN then add a local network then click Save at the bottom of the page (Please make sure that you are configuring this on the Hub's dashboard networkScreenshot 2022-05-05 at 22.47.22.png
  17. Optional - Verify that your VPN has come up by selecting your Campus LAN dashboard network from the Top-Left Network drop-down list and then navigate to Security & SD-WAN > Monitor > VPN status then check the status of your VPN peers. Next, navigate to Security & SD-WAN > Monitor > Route table and check the status of your remote subnets that are reachable via VPN. You can also verify connectivity by pinging a remote subnet (e.g. 172.31.16.32 which is Cisco ISE) by navigating to Security & SD-WAN > Monitor > Appliance status then click on Tools and ping the specified IP address (Please note that the MX will choose the highest VLANs interface IP participating in VPN by default as the source)Screenshot 2022-05-05 at 17.07.08.pngScreenshot 2022-06-09 at 17.52.35.pngScreenshot 2022-05-25 at 14.33.18.png

    Please note that in order to ping a remote subnet, you must either have BGP enabled or have static routes at the far-end pointing back to the Campus LAN local subnets. (In other words the source of your traffic which for ping by default is the highest VLAN participating in AutoVPN if not otherwise specified)

    In this example, the VPC in AWS has been configured with a Route Entry to route 10.0.100.0/24 and 10.0.200.0/24 via the vMX deployed in AWS that has a VPN tunnel back to the Campus LAN site.

    Screenshot 2022-06-09 at 17.55.10.png

    If the remote VPN peer (e.g. AWS) is configured in Routed mode, the static route is not required since traffic will always be NAT'd to a local reachable IP address.  Please also don't forget to create Network Device groups on Cisco ISE for your network devices to be able to send authentication messages to Cisco ISE. See the below example:

  18. SD-WAN & Traffic Shaping Configuration; To configure Traffic Shaping settings for your Campus LAN site. Navigate to Security & SD-WAN > Configure > SD-WAN & Traffic Shaping to configure your preferred settings. For the purpose of this CVD, the default traffic shaping rules will be used to mark traffic with a DSCP tag without policing egress traffic (except for traffic marked with DSCP 46) or applying any traffic limits. (Please adjust these settings based on your requirements such as traffic limits or priority queue values. For more information about traffic shaping settings on the MX devices, please refer to the following article)
    • Screenshot 2022-05-05 at 17.09.49.pngScreenshot 2022-05-05 at 17.10.01.pngScreenshot 2022-05-05 at 17.09.41.png
  19. Optional - Configure Threat Protection (Requires Advanced License or above) for your Campus LAN site. Navigate to Security & SD-WAN > Configure > Threat Protection and choose the settings that meet your site requirements. Please see the following configuration example: Screenshot 2022-05-05 at 22.54.57.png
  20. Click on Save at the bottom of the page
  21. Optional - Configure Content Filtering Settings (Requires Advanced License or above) for your Campus LAN site. Navigate to Security & SD-WAN > Configure > Content filtering and choose the settings that meet your site requirements. Please see the following configuration example: Screenshot 2022-05-05 at 23.06.06.pngScreenshot 2022-05-06 at 09.13.25.png
  22. Click on Save at the bottom of the page
  23. Core Switch Uplinks; On the Catalyst 9500 core switches, Connect their uplinks to the Primary WAN Edge MX and power them both on.
  24. Core Switch Network Access; Connect to the first C9500 switch via console and configure it with the following commands:
    • Switch>en
      Switch#conf t
      Enter configuration commands, one per line.  End with CNTL/Z.
      Switch(config)#hostname 9500-01
      9500-01(config)#ip domain name meraki-cvd.local
      9500-01(config)#cdp run
      9500-01(config)#lldp run
      9500-01(config)#stackwise
      Please reload the switch for Stackwise Virtual configuration to take effect
      Upon reboot, the config will be part of running config but not part of start up config.
      9500-01(config-stackwise-virtual)#domain 1
      9500-01(config)#exit
      9500-01(config)#interface Twe1/0/1
      9500-01(config-if)#switchport mode trunk
      9500-01(config-if)#switchport trunk native vlan 3
      9500-01(config-if)#switchport trunk allowed vlan 3,100,200,1923
      9500-01(config-if)#no shut
      9500-01(config-if)#exit
      9500-01(config)#interface Twe1/0/2
      9500-01(config-if)#switchport mode trunkk
      9500-01(config-if)#switchport trunk native vlan 3
      9500-01(config-if)#switchport trunk allowed vlan 3,100,200,1923
      9500-01(config-if)#no shut
      9500-01(config-if)#exit
      9500-01(config)#interface vlan 3
      9500-01(config-if)#ip address dhcp
      9500-01(config-if)#no shut
      9500-01(config-if)#exit
      9500-01(config)#interface vlan 100
      9500-01(config-if)#ip address dhcp
      9500-01(config-if)#no shut
      9500-01(config-if)#exit
      9500-01(config)#interface vlan 200
      9500-01(config-if)#ip address dhcp
      9500-01(config-if)#no shut
      9500-01(config-if)#exit
      9500-01(config)#interface vlan 1923
      9500-01(config-if)#ip address 192.168.3.2 255.255.255.0
      9500-01(config-if)#no shut
      9500-01(config-if)#end
      9500-01#
      9500-01#sh ip int brief
      Interface              IP-Address      OK? Method Status                Protocol
      Vlan3                  10.0.3.2        YES DHCP   up                    up
      Vlan100                10.0.100.2      YES DHCP   up                    up
      Vlan200                10.0.200.2      YES DHCP   up                    up
      Vlan1923               192.168.3.2     YES manual up                    up
      GigabitEthernet0/0     unassigned      YES NVRAM  down                  down
      TwentyFiveGigE1/0/1    unassigned      YES unset  up                    up
      TwentyFiveGigE1/0/2    unassigned      YES unset  up                    up
      9500-01#ping 8.8.8.8
      Type escape sequence to abort.
      Sending 5, 100-byte ICMP Echos to 8.8.8.8, timeout is 2 seconds:
      !!!!!
      Success rate is 100 percent (5/5), round-trip min/avg/max = 4/4/5 ms
      9500-01#ping cisco.com
      Type escape sequence to abort.
      Sending 5, 100-byte ICMP Echos to 72.163.4.185, timeout is 2 seconds:
      !!!!!
      Success rate is 100 percent (5/5), round-trip min/avg/max = 109/109/109 ms
      9500-01#switch 1 renumber 1
      9500-01#switch priority 5
      9500-01#wr mem
      Building configuration...
      [OK]

  25. Core Switch Network Access; Connect to the second C9500 switch via console and configure it with the following commands:
    • Switch>en
      Switch#conf t
      Enter configuration commands, one per line.  End with CNTL/Z.
      Switch(config)#hostname 9500-02
      9500-02(config)#ip domain name meraki-cvd.local
      9500-01(config)#cdp run
      9500-01(config)#lldp run
      9500-02(config)#stackwise
      Please reload the switch for Stackwise Virtual configuration to take effect
      Upon reboot, the config will be part of running config but not part of start up config.
      9500-02(config-stackwise-virtual)#domain 1
      9500-02(config)#exit
      9500-02(config)#interface Twe1/0/1
      9500-01(config-if)#switchport mode trunk
      9500-02(config-if)#switchport trnk native vlan 3
      9500-01(config-if)#switchport trunk allowed vlan 3,100,200,1923
      9500-02(config-if)#no shut
      9500-02(config-if)#exit
      9500-02(config)#interface Twe1/0/2
      9500-01(config-if)#switchport mode access
      9500-02(config-if)#switchport access vlan 3
      9500-01(config-if)#switchport trunk allowed vlan 3,100,200,1923
      9500-02(config-if)#no shut
      9500-02(config-if)#exit
      9500-02(config)#interface vlan 3
      9500-02(config-if)#ip address dhcp
      9500-02(config-if)#no shut
      9500-01(config)#interface vlan 100
      9500-01(config-if)#ip address dhcp
      9500-01(config-if)#no shut
      9500-01(config-if)#exit
      9500-01(config)#interface vlan 200
      9500-01(config-if)#ip address dhcp
      9500-01(config-if)#no shut
      9500-01(config-if)#exit
      9500-01(config)#interface vlan 1923
      9500-01(config-if)#no shut
      9500-01(config-if)#end
      9500-01#
      9500-01#sh ip int brief
      Interface              IP-Address      OK? Method Status                Protocol
      Vlan3                  10.0.3.3        YES DHCP   up                    up
      Vlan100                10.0.100.3      YES DHCP   up                    up
      Vlan200                10.0.200.3      YES DHCP   up                    up
      Vlan1923               unassigned      YES manual up                    down
      GigabitEthernet0/0     unassigned      YES NVRAM  down                  down
      TwentyFiveGigE1/0/1    unassigned      YES unset  up                    up
      TwentyFiveGigE1/0/2    unassigned      YES unset  up                    up
      9500-02#ping 8.8.8.8
      Type escape sequence to abort.
      Sending 5, 100-byte ICMP Echos to 8.8.8.8, timeout is 2 seconds:
      !!!!!
      Success rate is 100 percent (5/5), round-trip min/avg/max = 4/4/5 ms
      9500-02#ping cisco.com
      Type escape sequence to abort.
      Sending 5, 100-byte ICMP Echos to 72.163.4.185, timeout is 2 seconds:
      !!!!!
      Success rate is 100 percent (5/5), round-trip min/avg/max = 109/109/109 ms
      9500-02#switch 1 renumber 2
      9500-02#switch priority 1
      9500-02#wr mem
      Building configuration...
      [OK]
  26. SVL Configuration; Now that both C9500 switches have access to the network, proceed to configure the Stackwise Virtual Links per the port list proviced above (In this case using two ports for the SVL providning a total stacking bandwidth of 80 Gbps)
    • 9500-01(config)#interface HundredGigE1/0/25
      9500-01(config-if)#stackwise-virtual link 1
      9500-01(config-if)#no shut
      9500-01(config-if)#exit
      9500-01(config)#interface HundredGigE1/0/26
      9500-01(config-if)#stackwise-virtual link 1
      9500-01(config-if)#no shut
      9500-01(config-if)#end
      9500-01#wr mem
      Building configuration...
      [OK]
      9500-01#reload
      Proceed with reload? [confirm]

    • 9500-02(config)#interface HundredGigE1/0/25
      9500-02(config-if)#stackwise-virtual link 1
      9500-02(config-if)#no shut
      9500-02(config-if)#exit
      9500-02(config)#interface HundredGigE1/0/26
      9500-02(config-if)#stackwise-virtual link 1
      9500-02(config-if)#no shut
      9500-02(config-if)#end
      9500-02#wr mem
      Building configuration...
      [OK]
      9500-02#reload
      Proceed with reload? [confirm]

  27. Connect Stacking Cables; Whilst the C9500 switches are reloading, connect the stacking cables on both switches
  28. Verify Stackwise Configuration; Please wait for about 10 minutes for the switches to come back up and initialize the stack. Then, connect to the 9500-01 (Stack Master) via console to verify that the stack is operational. The stackwise-virtual link should be U (Up) and R (Ready).
    • 9500-01#show stackwise-virtual
      Stackwise Virtual Configuration:
      --------------------------------
      Stackwise Virtual : Enabled
      Domain Number : 1


      Switch Stackwise Virtual Link Ports
      ------ ---------------------- ------
      1      1                      HundredGigE1/0/25
                                    HundredGigE1/0/26
      2      1                      HundredGigE2/0/25
                                    HundredGigE2/0/26


      9500-01#
      9500-01#show stackwise-virtual link
      Stackwise Virtual Link(SVL) Information:
      ----------------------------------------
      Flags:
      ------
      Link Status
      -----------
      U-Up D-Down
      Protocol Status
      ---------------
      S-Suspended P-Pending E-Error T-Timeout R-Ready
      -----------------------------------------------
      Switch SVL Ports                    Link-Status Protocol-Status
      ------ --- -----                    ----------- ---------------
      1      1   HundredGigE1/0/25        U           R
                 HundredGigE1/0/26        U           R
      2      1   HundredGigE2/0/25        U           R
                 HundredGigE2/0/26        U           R


      9500-01#
      9500-01#show stackwise-virtual bandwidth
      Switch Bandwidth
      ------ ---------
      1       80G
      2       80G


      9500-01#
      9500-01#sh switch
      Switch/Stack Mac Address : b0c5.3c60.fba0 - Local Mac Address
      Mac persistency wait time: Indefinite
                                                   H/W   Current
      Switch#   Role    Mac Address     Priority Version  State
      -------------------------------------------------------------------------------------
      *1       Active   b0c5.3c60.fba0     5      V02     Ready
      2        Standby  40b5.c111.01e0     1      V02     Ready






      9500-01#
  29. Optional - Attach and configure stackwise-virtual dual-active-detection; DAD is a feature used to avoid a dual-active situation within a stack of switches. It will rely on a direct attachment link between the two switches to send hello packets and determine if the active switch is responding or not. Please note that DAD cannot be applied to any SVL links and has to be a dedicated interface. For the purpose of this CVD, interface HundredGigE1/0/27 and HundredGigE2/0/27 will be used for enabling DAD between the two C9500 switches.
    • 9500-01#configure terminal
      9500-01(config)#interface HundredGigE1/0/27
      9500-01(config-if)#stackwise-virtual dual-active-detection
      WARNING: All the extraneous configurations will be removed for HundredGigE1/0/27 on reboot.
      INFO: Upon reboot, the config will be part of running config but not part of start up config.
      9500-01(config-if)#interface HundredGigE2/0/27
      9500-01(config-if)#stackwise-virtual dual-active-detection
      WARNING: All the extraneous configurations will be removed for HundredGigE1/0/27 on reboot.
      INFO: Upon reboot, the config will be part of running config but not part of start up config.
      9500-01(config-if)#end
      9500-01#wr mem
      Building configuration...
      [OK]
      9500-01#reload
      Reload command is being issued on Active unit, this will reload the whole stack
      Proceed with reload? [confirm]Connection to 10.0.3.2 closed by remote host.
      Connection to 10.0.3.2 closed.
      >>
      9500-01#sh stackwise-virtual dual-active-detection
      In dual-active recovery mode: No
      Recovery Reload: Enabled


      Dual-Active-Detection Configuration:
      -------------------------------------
      Switch Dad port Status
      ------ ------------ ---------
      1 HundredGigE1/0/27         up
      2 HundredGigE2/0/27         up


      9500-01#

  30. Configure Multiple Spanning Tree Protocol (802.1s). Connect to the 9500-01 (Stack Master) via console and use the following commands:
    • 9500-01(config)#spanning-tree mst configuration
      9500-01(config-mst)#instance 0 vlan 3,100,200,1921,1922,1923
      9500-01(config-mst)#name region1
      9500-01(config-mst)#revision 1
      9500-01(config-mst)#exit
      9500-01(config)#spanning-tree mode mst
      9500-01(config)#spanning-tree mst 0 priority 4096
      9500-01(config)#exit
      9500-01#wr mem
      Building configuration...
      [OK]
      9500-01#

  31. Verify Spanning Tree Configuration (Please note that interface Twe2/0/1 will be in STP blocking state due to the fact that both uplinks are connected to the same MX edge device at this stage)
    • 9500-01#show spanning-tree


      MST0
        Spanning tree enabled protocol mstp
        Root ID    Priority    4096
                   Address     b0c5.3c60.fba0
                   This bridge is the root
                   Hello Time   2 sec  Max Age 20 sec  Forward Delay 15 sec


        Bridge ID  Priority    4096   (priority 4096 sys-id-ext 0)
                   Address     b0c5.3c60.fba0
                   Hello Time   2 sec  Max Age 20 sec  Forward Delay 15 sec


      Interface           Role Sts Cost      Prio.Nbr Type
      ------------------- ---- --- --------- -------- --------------------------------
      Twe1/0/1            Desg FWD 2000      128.193  P2p
      Twe2/0/1            Back BLK 2000      128.385  P2p



      9500-01#
  32. Configure STP Root Guard and UDLD on the Core Stack Downlinks:
    • 9500-01#configure terminal
      Enter configuration commands, one per line.  End with CNTL/Z.
      9500-01(config)#int Twe1/0/23
      9500-01(config-if)#spanning-tree guard root
      9500-01(config-if)#udld port aggressive
      9500-01(config-if)#int Twe1/0/24
      9500-01(config-if)#spanning-tree guard root
      9500-01(config-if)#udld port aggressive
      9500-01(config-if)#int Twe2/0/23
      9500-01(config-if)#spanning-tree guard root
      9500-01(config-if)#udld port aggressive
      9500-01(config-if)#int Twe2/0/24
      9500-01(config-if)#spanning-tree guard root
      9500-01(config-if)#udld port aggressive
      9500-01(config-if)#end
      9500-01#wr mem
      Building configuration...
      [OK]
      9500-01#

  33. Optional - STP Hygiene; It is recommended to configure STP Root Guard on all C9500 Core Stack downlinks to avoid any new introduced downstream switches from claiming root bridge status:
    • 9500-01#configure terminal
      Enter configuration commands, one per line.  End with CNTL/Z.
      9500-01(config)#define interface-range stp-protect TwentyFiveGigE1/0/3 - 22
      9500-01(config)#interface range macro stp-protect
      9500-01(config-if-range)#spanning-tree guard root
      9500-01(config-if-range)#exit
      9500-01(config)#define interface-range stp-protect2 TwentyFiveGigE2/0/3 - 22
      9500-01(config)#interface range macro stp-protect2
      9500-01(config-if-range)#spanning-tree guard root
      9500-01(config-if)#end
      9500-01#wr mem
      Building configuration...
      [OK]
      9500-01#
  34. Optional - STP Hygiene; It is recommended to configure STP Loop Guard on all C9500 Core Stack un-used stacking links:
    • 9500-01#configure terminal
      Enter configuration commands, one per line.  End with CNTL/Z.
      9500-01(config)#interface HundredGigE1/0/27
      9500-01(config-if)#spanning-tree guard loop
      9500-01(config-if-range)#exit
      9500-01(config)#interface HundredGigE1/0/28
      9500-01(config-if)#spanning-tree guard loop
      9500-01(config-if)#exit
      9500-01(config)#interface HundredGigE2/0/27
      9500-01(config-if)#spanning-tree guard loop
      9500-01(config-if-range)#exit
      9500-01(config)#interface HundredGigE2/0/28
      9500-01(config-if)#spanning-tree guard loop
      9500-01(config-if)#end
      9500-01#wr mem
      Building configuration...
      [OK]
      9500-01#
  35. Configure SVIs for your Campus LAN on the Core Stack:
    • 9500-01(config)#interface vlan 1921
      9500-01(config-if)#ip address 192.168.1.1 255.255.255.0
      9500-01(config-if)#no shut
      9500-01(config-if)#interface vlan 1922
      9500-01(config-if)#ip address 192.168.2.1 255.255.255.0
      9500-01(config-if)#no shut
      9500-01(config-if)#exit
      9500-01(config)#ip dhcp pool vlan100
      9500-01(dhcp-config)#network 10.0.100.0 /24
      9500-01(dhcp-config)#default-router 10.0.100.1
      9500-01(dhcp-config)#dns-server 208.67.222.222 208.67.220.220
      9500-01(dhcp-config)#ip dhcp pool vlan200
      9500-01(dhcp-config)#network 10.0.200.0 /24
      9500-01(dhcp-config)#default-router 10.0.200.1
      9500-01(dhcp-config)#dns-server 208.67.222.222 208.67.220.220
      9500-01(dhcp-config)#end
      9500-01#wr mem
      Building configuration...
      [OK]
      9500-01#

  36. Verify your DHCP pool configuration
    • 9500-01#sh ip dhcp pool


      Pool vlan100 :
      Utilization mark (high/low)    : 100 / 0
      Subnet size (first/next)       : 0 / 0
      Total addresses                : 254
      Leased addresses               : 0
      Excluded addresses             : 0
      Pending event                  : none
      1 subnet is currently in the pool :
      Current index        IP address range                    Leased/Excluded/Total
      10.0.100.1           10.0.100.1       - 10.0.100.254      0     / 0     / 254


      Pool vlan200 :
      Utilization mark (high/low)    : 100 / 0
      Subnet size (first/next)       : 0 / 0
      Total addresses                : 254
      Leased addresses               : 0
      Excluded addresses             : 0
      Pending event                  : none
      1 subnet is currently in the pool :
      Current index        IP address range                    Leased/Excluded/Total
      10.0.200.1           10.0.200.1       - 10.0.200.254      0     / 0     / 254
      9500-01#
  37. Verify your SVI configuration
    • 9500-01#sh ip int brief | in Vlan
      Vlan3                  10.0.3.113      YES DHCP   up                    up
      Vlan100                10.0.100.2      YES DHCP   up                    up
      Vlan200                10.0.200.2      YES DHCP   up                    up
      Vlan1921               192.168.1.1     YES manual up                    down
      Vlan1922               192.168.2.1     YES manual up                    down
      Vlan1923               192.168.3.2     YES manual up                    up
      9500-01#
  38. Configure Layer 2 Switchports,  SGTs and CST (Cisco TrustSec) on your Core Stack interfaces. (Please note that enforcement has been disabled on downlink ports allowing it to happen downstream)
    • 9500-01#conf t
      Enter configuration commands, one per line.  End with CNTL/Z.
      9500-01(config)#cts sgt 2
      9500-01(config)#cts role-based enforcement vlan-list 3,11,12,21,22,30,40,100,200
      9500-01(config)#ip access-list role-based Allow_All
      9500-01(config-rb-acl)#permit ip
      9500-01(config-rb-acl)#exit
      9500-01(config)#cts role-based permissions default Allow_All
      9500-01(config)#interface TwentyFiveGigE1/0/23
      9500-01(config-if)#switchport mode trunk
      9500-01(config-if)#switchport trunk native vlan 100
      9500-01(config-if)#switchport trunk allowed vlan 100,1921
      9500-01(config-if)#no cts role-based enforcement
      9500-01(config-if)#cts manual
      9500-01(config-if-cts-manual)#propagate sgt
      9500-01(config-if-cts-manual)#policy static sgt 2 trusted
      9500-01(config)#interface TwentyFiveGigE1/0/24
      9500-01(config-if)#switchport mode trunk
      9500-01(config-if)#switchport trunk native vlan 200
      9500-01(config-if)#switchport trunk allowed vlan 200,1922
      9500-01(config-if)#no cts role-based enforcement
      9500-01(config-if)#cts manual
      9500-01(config-if-cts-manual)#propagate sgt
      9500-01(config-if-cts-manual)#policy static sgt 2 trusted
      9500-01(config)#interface TwentyFiveGigE2/0/23
      9500-01(config-if)#switchport mode trunk
      9500-01(config-if)#switchport trunk native vlan 100
      9500-01(config-if)#switchport trunk allowed vlan 100,1921
      9500-01(config-if)#no cts role-based enforcement
      9500-01(config-if)#cts manual
      9500-01(config-if-cts-manual)#propagate sgt
      9500-01(config-if-cts-manual)#policy static sgt 2 trusted
      9500-01(config)#interface TwentyFiveGigE2/0/24
      9500-01(config-if)#switchport mode trunk
      9500-01(config-if)#switchport trunk native vlan 200
      9500-01(config-if)#switchport trunk allowed vlan 200,1922
      9500-01(config-if)#no cts role-based enforcement
      9500-01(config-if)#cts manual
      9500-01(config-if-cts-manual)#propagate sgt
      9500-01(config-if-cts-manual)#policy static sgt 2 trusted
      9500-01#wr mem
      Building configuration...
      [OK]
      9500-01#

  39. Spare WAN Edge Connectivity; Follow these steps to create warm-spare with two MX appliances: (Please note that this might result in a brief interruption of packet forwarding on the MX Appliance
    • Navigate to Security & SD-WAN > Monitor > Appliance status and click on Configure warm spare
    • Screenshot 2022-05-23 at 15.19.02.png
    • Now click on Enabled then choose the Spare MX from the drop-down menu and then choose the Uplink IP option that suits your requirements (Please note that choosing Virtual IPs requires an additional IP address on the upstream network and a single broadcast domain between the two MXs) then click on Update
    • Screenshot 2022-05-23 at 15.20.00.png
    • Now click on Spare to access the Appliance status page of your Spare MX and click on the Edit button to rename the spare unit (e.g. Secondary WAN Edge)
    • Screenshot 2022-05-23 at 15.20.38.png
    • Screenshot 2022-05-23 at 15.39.42.png
    • Then configure the following on your C9500 Core Stack:
    • 9500-01#configure terminal
      9500-01(config)#interface Twe1/0/2
      9500-01(config-if)#switchport mode trunk
      9500-01(config-if)#switchport trunk native vlan 3
      9500-01(config-if)#switchport trunk allowed vlan 3,100,200,1923
      9500-01(config-if)#no shut
      9500-01(config-if)#exit
      9500-01(config)#interface Twe2/0/2
      9500-01(config-if)#switchport mode access
      9500-01(config-if)#switchport trunk native vlan 3
      9500-01(config-if)#switchport trunk allowed vlan 3,100,200,1923
      9500-01(config-if)#no shut
      9500-01(config-if)#end
      9500-01#wr mem
      Building configuration...
      [OK]
    • Then connect the Spare MX downlinks to your C9500 Core Stack (e.g. Spare MX port 19 to Twe1/0/2 and port 20 to Twe2/0/2)
    • Then connect the Spare MX with it's uplinks (This must match the uplink configuration on your Primary WAN Edge)
    • Power on the Spare MX and wait for it to come online on dashboard
    • Screenshot 2022-05-23 at 15.31.59.png
    • Screenshot 2022-05-23 at 15.32.45.png
    • Screenshot 2022-05-23 at 15.32.31.png
    • You can also verify that your C9500 Core Stack interfaces to the Spare MX are up, and that the redundant uplinks are in STP BLK mode
    • 9500-01#sh ip interface brief
      Interface              IP-Address      OK? Method Status                Protocol
      TwentyFiveGigE1/0/2    unassigned      YES unset  up                    up
      TwentyFiveGigE2/0/2    unassigned      YES unset  up                    up
      9500-01#
      9500-01#show spanning-tree


      MST0
        Spanning tree enabled protocol mstp
        Root ID    Priority    4096
                   Address     b0c5.3c60.fba0
                   This bridge is the root
                   Hello Time   2 sec  Max Age 20 sec  Forward Delay 15 sec


        Bridge ID  Priority    4096   (priority 4096 sys-id-ext 0)
                   Address     b0c5.3c60.fba0
                   Hello Time   2 sec  Max Age 20 sec  Forward Delay 15 sec


      Interface           Role Sts Cost      Prio.Nbr Type
      ------------------- ---- --- --------- -------- --------------------------------
      Twe1/0/1            Desg FWD 2000      128.193  P2p
      Twe1/0/2            Desg FWD 2000      128.194  P2p
      Twe2/0/1            Back BLK 2000      128.385  P2p
      Twe2/0/2            Back BLK 2000      128.386  P2p




      9500-01#

  40. Access Policy configuration; When you're logged in dashboard, Navigate to Switching > Configure > Access policies to configure Access Policies as required for your Campus LAN. Please see the following example for two Access Policies; 802.1x & MAB:
    • Screenshot 2022-05-25 at 14.36.51.pngScreenshot 2022-05-06 at 16.56.18.pngScreenshot 2022-05-06 at 16.56.38.pngScreenshot 2022-05-25 at 14.37.02.png
    • Screenshot 2022-05-06 at 16.58.13.pngScreenshot 2022-05-06 at 16.58.21.png
  41. Adaptive Policy Configuration; Configure Adaptive Policy for your Campus LAN. When you're logged in dashboard, Navigate to Organization > Configure > Adaptive Policy then click on the Groups tab on the top. There should be two groups (Unknown, Infrastructure) that are already available. Click on Add group to add each group required for your Campus LAN. You need to fill in the Name, the SGT value, and a description then click on Review changes then click on Submit. Please see the following examples:
    • Screenshot 2022-05-16 at 15.50.34.pngScreenshot 2022-05-16 at 15.50.50.png
  42. Adaptive Policy Configuration; Configure Adaptive Policy for your Campus LAN. When you're logged in dashboard, Navigate to Organization > Configure > Adaptive Policy then click on the Policies tab on the top. The source groups are on the left side, and the destination groups are on the right side. Select a source group from the left side then select all destination groups on the right side that should be allowed then click on Allow and click on Save at the bottom of the page. Next, Select a source group from the left side then select all destination groups on the right side that should be denied (i.e. Blocked) then click on Deny and click on Save at the bottom of the page. After creating the policy for that specific source group, the allowed destination groups will be displayed with a Green tab and the denied destination groups will be displayed with a Red tab. Repeat this step for all policies required for all Groups (Allow and Deny)
    • Screenshot 2022-05-16 at 15.58.00.pngScreenshot 2022-05-16 at 15.57.13.pngScreenshot 2022-05-16 at 15.58.13.pngScreenshot 2022-05-17 at 12.34.55.pngScreenshot 2022-05-16 at 15.58.47.pngScreenshot 2022-05-16 at 15.59.01.png
  43. Access Switch Ports Preparation; MS390 switches support a maximum of 1000 configured VLANs and given that the default configuration has all switchports in Trunk mode with Native VLAN 1 and allowed VLANs 1-1000 (consuming the 1000 limit already), Dashboard will not allow for the configuration of this design to be saved (i.e. configuring VLAN 1921/1922 as this will breach the 1000 VLANs limit). As such, ports will need to be configured with a different range or VLAN set other than the default settings before applying the configuration needed for this design. It is therefore recommended to configure ALL ports in your network as access in a parking VLAN such as 999. To do that, Navigate to Switching > Monitor > Switch ports then select all ports (Please be mindful of the page overflow and make sure to browse the different pages and apply configuration to ALL ports) and then make sure to deselect stacking ports (as you cannot change configuration on dedicated stacking ports) then click on the Edit button and configure all ports as shown below:
    • Screenshot 2022-05-26 at 10.27.07.png
    • Screenshot 2022-05-26 at 10.27.57.png
    • Screenshot 2022-05-26 at 10.28.06.png
    • Screenshot 2022-05-26 at 10.28.52.png
    • Screenshot 2022-05-26 at 10.29.00.png
    • Screenshot 2022-05-26 at 10.34.31.png
    • Screenshot 2022-05-26 at 10.30.44.png
    • Screenshot 2022-05-26 at 10.31.09.png
    • IMPORTANT - The above step is essential before proceeding to the next steps. If you proceed to the next step and receive an error on Dashboard then it means that some switchports are still configured with the default configuration. Please revisit the Switching > Monitor > Switch ports page and ensure that no ports have a Trunk with allowed VLANs 1-1000
  44. Access Switch Ports Configuration; Configure Uplink Ports on your Access Switches. When you're logged in dashboard, Navigate to Switching > Monitor > Switch ports, then select your uplink ports and configure them as shown below. (Tip: You can filter for ports by using search terms in dashboard): Screenshot 2022-05-25 at 16.27.37.pngScreenshot 2022-05-16 at 20.21.15 new2.jpgScreenshot 2022-05-06 at 14.31.22.png
    • Screenshot 2022-05-25 at 16.37.06.png
    • Screenshot 2022-05-25 at 16.46.41.png
    • Screenshot 2022-05-25 at 16.47.20.png
  45. Optional - For ease of management, it is recommended that you rename the ports connecting to your Core switches with the actual switch name / Connecting port as shown below.
    • Screenshot 2022-05-25 at 16.55.56.png
  46. Access Switch Ports Configuration; Configure Wired Client Ports (802.1x) on your Access Switches. Navigate to or Refresh Switching > Monitor > Switch Ports, then select your Wired Client ports (5-8) and configure them as shown below. (Tip: You can filter for ports by using search terms in dashboard):
    • Screenshot 2022-05-25 at 17.43.42.png
    • Screenshot 2022-05-25 at 17.12.19.png
    • Screenshot 2022-05-25 at 18.14.56.png
    • Screenshot 2022-05-25 at 18.08.05.png
    • Screenshot 2022-05-25 at 18.08.31.png
    • Screenshot 2022-05-25 at 18.14.56.png
  47. Access Switch Ports Configuration; Configure Wired Client Ports (MAB) on your Access Switches. Navigate to or Refresh Switching > Monitor > Switch Ports, then select your Wired Client ports (9-12) and configure them as shown below. (Tip: You can filter for ports by using search terms in dashboard):
    • Screenshot 2022-05-25 at 18.21.54.png
    • Screenshot 2022-05-25 at 18.32.20.png
    • Screenshot 2022-05-25 at 18.22.39.png
  48. Access Switch Ports Configuration; Configure MR Ports on your Access Switches. Navigate to or Refresh Switching > Configure > Switch Ports, then select your ports connecting to MR Access Points (13-16) and configure them as shown below. (Tip: You can filter for ports by using search terms in dashboard):
    •
    • Screenshot 2022-05-27 at 13.51.15.png
    • Screenshot 2022-05-25 at 18.49.36.png
    •
    • Screenshot 2022-05-27 at 13.50.59.png
    • Screenshot 2022-05-25 at 18.50.23.png
  49. Optional - Access Switch Ports Configuration; Configure unused ports on your Access Switches such that they are disabled and mapped to a parking VLAN such as 999. Navigate to Switching > Monitor > Switch Ports and filter for any unused ports (e.g. 17-24) and configure them as shown below:
    • Screenshot 2022-05-06 at 17.12.18.png
  50. Rename Wireless SSIDs; To configure your SSIDs per the above table, first navigate to Wireless > Configure > SSIDs then rename the SSIDs per your requirements (Refer to the above table for guidance)
    • SSID#1 (First column, aka vap:0enabled by default): Click on rename and change it to Acme Corp
    • SSID#2 (Second column, aka vap:1): Click on rename and change it to Acme BYOD, then click on the top drop-down menu to enable it
    • SSID#3 (Third column, aka vap:2): Click on rename and change it to Guest, then click on the top drop-down menu to enable it
    • SSID#4 (Fourth column, aka vap:3): Click on rename and change it to Acme IoT, then click on the top drop-down menu to enable it
    • Click Save at the bottom of the pageScreenshot 2022-05-06 at 19.40.08.png
  51. Configure Access Control for Acme Corp; Navigate to Wireless > Configure > Access control then from the top drop-down menu choose Acme Corp:
    • Screenshot 2022-05-06 at 19.52.19.pngScreenshot 2022-05-06 at 21.31.35.pngScreenshot 2022-05-06 at 21.27.57.pngScreenshot 2022-05-25 at 19.17.30.pngScreenshot 2022-05-26 at 11.49.43.png
    • Click Save at the bottom of the page
    • Screenshot 2022-05-06 at 20.45.43.png
    • Please Note: Adaptive Policy Group feature is not currently available in the New Version of the Access. You will need to click on View old version Screenshot 2022-05-06 at 21.25.34.png which is available at the top right corner of the page to be able to access this and configure the Adaptive Policy Group (10: Corp). Then, please click Save at the bottom of the page
  52. Configure Access Control for Acme BYOD; Navigate to Wireless > Configure >  Access control then from the top drop-down menu choose Acme BYOD:
    • Screenshot 2022-05-16 at 15.23.20.pngScreenshot 2022-05-16 at 15.23.29.pngScreenshot 2022-05-16 at 15.23.41.pngSplash Page ISE.pngScreenshot 2022-05-25 at 19.17.30.pngScreenshot 2022-05-26 at 11.52.04.png
    • Click on Screenshot 2022-05-06 at 21.25.34.pngwhich is available on the top right corner of the page, then choose the Adaptive Policy Group 20: BYOD and then click on Save at the bottom of the page.
    • Screenshot 2022-05-06 at 20.45.03.png
  53. Configure Access Control for Guest; Navigate to Wireless > Configure > Access control then from the top drop-down menu choose Guest:
    • Screenshot 2022-05-06 at 20.51.00.pngScreenshot 2022-05-06 at 20.51.06.pngScreenshot 2022-05-06 at 20.51.22.pngOpen Click Through Splash page.pngScreenshot 2022-05-06 at 20.52.58.pngScreenshot 2022-05-06 at 20.53.13.png
    • Click Save at the bottom of the page
    • Click on the top right corner of the page on "View Old Version"  then choose the Adaptive Policy Group 30:Guest then click on Save at the bottom of the page
    • Screenshot 2022-05-06 at 20.53.47.png
    • Navigate to Wireless > Configure > SSID availability and configure broadcast via Tag = Zone 1
    • SSID Availability Zone 1.png
  54. Configure Access Control for Acme IoT; Navigate to Wireless > Configure > Access control then from the top drop-down menu choose Acme IoT: (Please note that in this example Acme IoT SSID has been configured with iPSK without Radius)
    • First Navigate to Network-wide > Configure > Group policies then create a group policy for IoT devices and then click Save at the bottom of the page
    • Screenshot 2022-05-26 at 12.13.31.png
    • Screenshot 2022-05-26 at 12.13.51.png
    • Then, Navigate to Wireless > Configure > Access control and choose Acme IoT from the top drop-menu and configure settings as shown below, First choose iPSK without Radius from the Security menu:
    • Screenshot 2022-05-16 at 15.38.36.png
    • Screenshot 2022-05-26 at 12.29.19.png
    • Then, click on Add an identity PSK:
    • Screenshot 2022-05-26 at 12.09.33.png
    • Screenshot 2022-05-26 at 12.09.18.png
    • Screenshot 2022-05-16 at 15.38.55.png
    • Screenshot 2022-05-16 at 15.39.48.png
    • Click on Save at the bottom of the page
    • Click on Screenshot 2022-05-06 at 21.25.34.pngat the top right corner of the page then choose the Adaptive Policy Group 40: IoT then click on Save at the bottom of the page
    • Screenshot 2022-05-06 at 20.56.34.png
    • Navigate to Wireless > Configure > SSID availability and configure broadcast via Tag = Zone 2
    • SSID Availability Zone 2.png
  55. Enabling Stacking on your MS390 and C9300 Switches in Meraki Dashboard; Please follow these steps
    1. Connect a single uplink to each switch (e.g. Port 1 on MS390-01 to Port TwentyFiveGigE1/0/23 on C9500)
    2. Make sure all stacking cables are unplugged from all switches
    3. Power up all switches
    4. Verify that your C9500 Stack downlinks are up and not shutdown
      • 9500-01#sh ip interface brief
        Interface              IP-Address      OK? Method Status                Protocol
        TwentyFiveGigE1/0/23   unassigned      YES unset  up                    up
        TwentyFiveGigE1/0/24   unassigned      YES unset  up                    up
        TwentyFiveGigE2/0/23   unassigned      YES unset  up                    up
        TwentyFiveGigE2/0/24   unassigned      YES unset  up                    up
        9500-01#
    5. Wait for them to come online on dashboard. Navigate to Switching > Configure > Switches and check the status of your Access Switches
      • Screenshot 2022-05-27 at 10.39.18.png
    6. After they come online and download their configuration and firmware (Up to date) you can proceed to the next step. You can see their Configuration status and Firmware version from Switching > Configure > Switches
      • Screenshot 2022-05-27 at 10.44.48.png
    7. Enable stacking in dashboard by Navigating to Switching > Monitor > Switch stacks then click on add one
      • Screenshot 2022-05-16 at 16.12.17.png
    8. Then give your stack a name and select it's members and click on Create
      • Screenshot 2022-05-16 at 16.13.11.pngScreenshot 2022-05-16 at 16.13.23.png
    9. Now click on Add a stack to create all other stacks in your Campus LAN access layer by repeating the above steps
      • Screenshot 2022-05-16 at 16.13.23.pngScreenshot 2022-05-16 at 16.13.48.pngScreenshot 2022-05-16 at 16.13.57.png
    10. Power off all access switches
    11. Disconnect all uplink cables from all switches
    12. Nominate your master switch for each stack (e.g. MS390-01 for stack1 and C9300-01 for stack2)
    13. On the master switches, plug the uplink again
    14. Plug stacking cables on all switches in each stack to form a ring topology and make sure that the Cisco logo is upright
    15. Power on your master switches first, then power other stack members
    16. Wait for the stack to come online on dashboard. To check the status of your stack, Navigate to Switching > Monitor > Switch stacks and then click on each stack to verify that all members are online and that stacking cables show as connected
      • Screenshot 2022-05-16 at 16.42.27.pngScreenshot 2022-05-16 at 16.42.38.png
    17. Plug uplinks on all other non-master members and verify that the uplink is online in dashboard by navigating to Switching > Monitor > Switch stacks and then click on each stack to verify that all uplinks are showing as connected however they should be in STP discarding mode
      • Screenshot 2022-05-16 at 16.47.30.pngScreenshot 2022-05-16 at 16.47.48.png
    18. Configure the same Static IP for all members in each stack by navigating to Switching > Monitor > Switches then click on the master switch (e.g. MS390-01 for Stack1) and under LAN IP menu copy the IP address then click on the edit button to specify the Static IP address information (You can use the same IP address that was assigned using DHCP) then click Save. The same Static IP address information should now be copied for all members of the same stack. You can verify this by navigating to Switching > Monitor > Switches (Tip: Click on the configure button on the right-hand side of the table to add Local IP information display)
      • Screenshot 2022-05-27 at 11.46.25.png
      • Screenshot 2022-05-27 at 11.45.31.png
      • And on your Stack2-9300 Master Switch:
      • Screenshot 2022-05-27 at 11.51.31.png
      • Screenshot 2022-05-27 at 13.57.34.png
    19. Finally, configure etherchannels on both your Access Switch Stacks and your Core Switch Stacks so that all uplinks can be operational (STP forwarding mode) at the same time. Follow these steps:
      • First, disconnect the downlinks to non-master switches from your C9500 Core Stack (e.g. Port TwentyFiveGigE2/0/23 and TwentyFiveGigE2/0/24)
      • Navigate to Switching > Monitor > Switch ports and search for uplink then select all uplinks in the same stack (in case you have tagged your ports otherwise search for them manually and select them all) then click on Aggregate. Please note that all port members of the same Ether Channel must have the same configuration otherwise Dashboard will not allow you to click the aggergate button.
        • Screenshot 2022-05-27 at 12.20.25.png
        • Screenshot 2022-05-27 at 12.20.53.png
        • Screenshot 2022-05-27 at 12.19.24.png
        • Screenshot 2022-05-27 at 12.20.01.png
        • Please repeat above steps for all stacks in your network
        • Please note that the above step will cause all members within the stack to go offline in Dashboard
      • On your C9500 Core Stack, please configure etherchannel Settings for your downlinks such that each Stack downlinks should be in a separate Port-channel and that the mode is active:
      • 9500-01#configure terminal
        Enter configuration commands, one per line.  End with CNTL/Z.
        9500-01(config)#interface TwentyFiveGigE1/0/23
        9500-01(config-if)#channel-group 1 mode active
        Creating a port-channel interface Port-channel 1


        9500-01(config-if)#
        9500-01(config-if)#interface TwentyFiveGigE2/0/23
        9500-01(config-if)#channel-group 1 mode active
        9500-01(config-if)#interface TwentyFiveGigE1/0/24
        9500-01(config-if)#channel-group 2 mode active
        Creating a port-channel interface Port-channel 2


        9500-01(config-if)#interface TwentyFiveGigE2/0/24
        9500-01(config-if)#channel-group 2 mode active
        9500-01(config-if)#end
        9500-01#
        9500-01#show etherchannel 1 port-channel
        Port-channels in the group:
        ---------------------------


        Port-channel: Po1    (Primary Aggregator)


        ------------


        Age of the Port-channel   = 0d:01h:42m:43s
        Logical slot/port   = 9/1          Number of ports = 2
        HotStandBy port = null
        Port state          = Port-channel Ag-Inuse
        Protocol            =   LACP
        Port security       = Disabled
        Fast-switchover     = disabled
        Fast-switchover Dampening = disabled


        Ports in the Port-channel:


        Index   Load   Port        EC state        No of bits
        ------+------+------+------------------+-----------
          0     00     Twe1/0/23      Active             0
          0     00     Twe2/0/23      Active             0


        Time since last port bundled:    0d:01h:40m:21s     Twe2/0/23


        9500-01#
        9500-01#show etherchannel 2 port-channel
        Port-channels in the group:
        ---------------------------


        Port-channel: Po2    (Primary Aggregator)


        ------------


        Age of the Port-channel   = 0d:01h:43m:56s
        Logical slot/port   = 9/2          Number of ports = 2
        HotStandBy port = null
        Port state          = Port-channel Ag-Inuse
        Protocol            =   LACP
        Port security       = Disabled
        Fast-switchover     = disabled
        Fast-switchover Dampening = disabled


        Ports in the Port-channel:


        Index   Load   Port        EC state        No of bits
        ------+------+------+------------------+-----------
          0     00     Twe1/0/24      Active             0
          0     00     Twe2/0/24      Active             0


        Time since last port bundled:    0d:01h:42m:04s     Twe2/0/24


        9500-01#9500-01#wr mem
        Building configuration...

        [OK]
        9500-01#

      • Plug all uplinks to non-master switches
      • Now all your switches should come back online on Dashboard
        • Screenshot 2022-05-27 at 13.57.34.png
      • And now all your uplinks from each stack should be in STP Forwarding mode, which you can verify on Dashboard by navigating to Switching > Monitor > Switch stacks and checking the uplink port status. Also you can check that on your C9500 Core Stack:
        • Screenshot 2022-05-16 at 19.22.19.png
        • Screenshot 2022-05-16 at 19.22.29.png
        • 9500-01#show spanning-tree interface port-channel 1


          Mst Instance        Role Sts Cost      Prio.Nbr Type
          ------------------- ---- --- --------- -------- --------------------------------
          MST0                Desg FWD 10000     128.2089 P2p
          9500-01#show spanning-tree interface port-channel 2


          Mst Instance        Role Sts Cost      Prio.Nbr Type
          ------------------- ---- --- --------- -------- --------------------------------
          MST0                Desg FWD 1000      128.2090 P2p
          9500-01#show spanning-tree


          MST0
            Spanning tree enabled protocol mstp
            Root ID    Priority    4096
                       Address     b0c5.3c60.fba0
                       This bridge is the root
                       Hello Time   2 sec  Max Age 20 sec  Forward Delay 15 sec


            Bridge ID  Priority    4096   (priority 4096 sys-id-ext 0)
                       Address     b0c5.3c60.fba0
                       Hello Time   2 sec  Max Age 20 sec  Forward Delay 15 sec


          Interface           Role Sts Cost      Prio.Nbr Type
          ------------------- ---- --- --------- -------- --------------------------------
          Twe1/0/1            Desg FWD 2000      128.193  P2p
          Twe2/0/1            Back BLK 2000      128.385  P2p
          Po1                 Desg FWD 10000     128.2089 P2p
          Po2                 Desg FWD 1000      128.2090 P2p




          9500-01#

  56. Configure Multiple Spanning Tree Protocol (802.1s)  in Dashboard for MS390 and C9300 switches; Navigate to Switch > Configure > Switch settings and select your stack and choose the appropriate STP priority per stack (61440 for all Access Switch Stacks) then click Save at the bottom of the page
    • Screenshot 2022-05-16 at 19.27.31.png
    • Please note that changing the STP priority will cause a brief outage as the STP topology will be recalculated.
    • Verify that the Access Stacks are seeing the C9500 Core Stack as the root by navigating to Switching > Monitor > Switches then click on any switch and under the RSTP root menu check the root bridge information
  57. Configure Dynamic ARP Inspection (DAI) on your C9500 Core Switches; All Downlinks to Access Switches and Uplinks to MX Edge must be configured as Trusted and all other interfaces as Untrusted: (Please note that the order of commands is important to avoid loss of connectivity)
    • 9500-01#show cdp neighbors
      Capability Codes: R - Router, T - Trans Bridge, B - Source Route Bridge
                        S - Switch, H - Host, I - IGMP, r - Repeater, P - Phone,
                        D - Remote, C - CVTA, M - Two-port Mac Relay


      Device ID        Local Intrfce     Holdtme    Capability  Platform  Port ID
      a4b4395f2a80     Twe 1/0/24        124               S    C9300-24U Port C9300-NM-8X/1
      2c3f0b0fec00     Twe 2/0/23        174               S    MS390-24  Port 1
      2c3f0b047e80     Twe 1/0/23        159               S    MS390-24U Port 1
      4ce175b0ba00     Twe 2/0/24        177               S    C9300-24U Port C9300-NM-8X/1


      Total cdp entries displayed : 4
      9500-01#configure terminal
      9500-01(config)#interface TwentyFiveGigE1/0/1
      9500-01(config-if)#ip arp inspection trust
      9500-01(config-if)#ip dhcp snooping trust
      9500-01(config-if)#exit
      9500-01(config)#interface TwentyFiveGigE1/0/2
      9500-01(config-if)#ip arp inspection trust
      9500-01(config-if)#ip dhcp snooping trust
      9500-01(config-if)#exit
      9500-01(config)#interface TwentyFiveGigE2/0/1
      9500-01(config-if)#ip arp inspection trust
      9500-01(config-if)#ip dhcp snooping trust
      9500-01(config-if)#exit
      9500-01(config)#interface TwentyFiveGigE2/0/2
      9500-01(config-if)#ip arp inspection trust
      9500-01(config-if)#ip dhcp snooping trust
      9500-01(config-if)#exit
      9500-01(config)#interface Po1
      9500-01(config-if)#ip arp inspection trust
      9500-01(config-if)#ip dhcp snooping trust
      9500-01(config-if)#exit
      9500-01(config)#interface Po2
      9500-01(config-if)#ip arp inspection trust
      9500-01(config-if)#ip dhcp snooping trust
      9500-01(config-if)#exit
      9500-01(config)#ip arp inspection vlan 3,100,200,1921,1922,1923
      9500-01(config)#ip arp inspection validate src-mac
      9500-01(config)#ip arp inspection validate ip src-mac
      9500-01(config)#ip dhcp snooping vlan 3,100,200, 1921,1922,1923
      9500-01(config)#end
      9500-01#show ip dhcp snooping
      Switch DHCP snooping is enabled
      Switch DHCP gleaning is disabled
      DHCP snooping is configured on following VLANs:
      3,100,200,1921-1923
      DHCP snooping is operational on following VLANs:
      3,100,200,1921-1923
      DHCP snooping is configured on the following L3 Interfaces:


      Insertion of option 82 is enabled
         circuit-id default format: vlan-mod-port
         remote-id: b0c5.3c60.fba0 (MAC)
      Option 82 on untrusted port is not allowed
      Verification of hwaddr field is enabled
      Verification of giaddr field is enabled
      DHCP snooping trust/rate is configured on the following Interfaces:


      Interface                  Trusted    Allow option    Rate limit (pps)
      -----------------------    -------    ------------    ----------------
      TwentyFiveGigE1/0/1              yes        yes             unlimited
        Custom circuit-ids:
      TwentyFiveGigE1/0/2              yes        yes             unlimited
        Custom circuit-ids:
      TwentyFiveGigE1/0/23             yes        yes             unlimited
        Custom circuit-ids:
      TwentyFiveGigE1/0/24             yes        yes             unlimited
        Custom circuit-ids:
      TwentyFiveGigE2/0/1              yes        yes             unlimited
        Custom circuit-ids:
      TwentyFiveGigE2/0/2              yes        yes             unlimited
        Custom circuit-ids:
      TwentyFiveGigE2/0/23             yes        yes             unlimited
        Custom circuit-ids:
      TwentyFiveGigE2/0/24             yes        yes             unlimited
        Custom circuit-ids:
      Port-channel1                    yes        yes             unlimited
        Custom circuit-ids:
      Port-channel2                    yes        yes             unlimited
        Custom circuit-ids:
      9500-01#
      9500-01#show ip arp inspection


      Source Mac Validation      : Enabled
      Destination Mac Validation : Disabled
      IP Address Validation      : Enabled


      Vlan     Configuration    Operation   ACL Match          Static ACL
      ----     -------------    ---------   ---------          ----------
          3     Enabled          Active
        100     Enabled          Active
        200     Enabled          Active
       1921     Enabled          Active
       1922     Enabled          Active
       1923     Enabled          Active


      Vlan     ACL Logging      DHCP Logging      Probe Logging
      ----     -----------      ------------      -------------
          3     Deny             Deny              Off
        100     Deny             Deny              Off
        200     Deny             Deny              Off
       1921     Deny             Deny              Off
       1922     Deny             Deny              Off
       1923     Deny             Deny              Off


      Vlan      Forwarded        Dropped     DHCP Drops      ACL Drops
      ----      ---------        -------     ----------      ---------
          3              0              0              0              0
        100              0              0              0              0
        200              0              0              0              0
       1921              0              0              0              0
       1922              0              0              0              0
       1923              0              0              0              0


      Vlan   DHCP Permits    ACL Permits  Probe Permits   Source MAC Failures
      ----   ------------    -----------  -------------   -------------------
          3              0              0              0                     0
        100              0              0              0                     0
        200              0              0              0                     0
       1921              0              0              0                     0
       1922              0              0              0                     0
       1923              0              0              0                     0


      Vlan   Dest MAC Failures   IP Validation Failures   Invalid Protocol Data
      ----   -----------------   ----------------------   ---------------------
          3                   0                        0                       0
        100                   0                        0                       0
        200                   0                        0                       0
       1921                   0                        0                       0
       1922                   0                        0                       0
       1923                   0                        0                       0
      9500-01#wr mem
      Building configuration...
      [OK]
      9500-01#

  58. Configure Dynamic Arp Inspection (DAI) on your Access Switch Stacks; Navigate to Switch > Monitor > DHCP Servers & ARP and scroll down to Dynamic ARP Inspection and enable it then click Save at the bottom of the page:
    • Screenshot 2022-05-16 at 21.13.59.png
  59. Setting up your Access Points; Connect your APs to the respective ports on the Access Switches (e.g. Ports 13-16) and wait for them to come online on dashboard and download their firmware and configuration files. To check the status of your APs navigate to Wireless > Monitor > Access points and check the status, configuration and firmware of your APs.
    • AP in.jpg
  60. Re-addressing your Network Devices; In this step, you will adjust your IP addressing configuration - if required - to align with your network design. This step could have been done earlier in the process however it will be easier to adjust after all your network devices have come online since the MX (The DHCP server for Management VLAN 1) has kept a record of the actual MAC addresses of all DHCP clients. Follow these steps to re-assign the desired IP addresses: (Please note that this will cause disruption to your network connectivity)
    1. Navigate to Organization > Monitor > Overview then click on Devices tab to check the current IP addressing for your network devices
    2. Navigate to Security & SD-WAN > Monitor > Appliance status then click on the Tools tab and click on Run next to ARP Table
    3. Take a note of the MAC addresses of your network devices
    4. Navigate to Security & SD-WAN > Configure > DHCP then under Fixed IP assignments click on Add a fixed IP assignment and add entries under each DHCP Pool  as shown below for your network devices using the MAC addresses you have from Step #3 above then click on Save at the bottom of the page
      •
      • Screenshot 2022-05-30 at 10.57.57.png
      • Screenshot 2022-05-30 at 10.58.05.png
      • Screenshot 2022-05-30 at 10.58.12.png
    5. Navigate to Switching > Monitor > Switch ports then filter for MR (in case you have previously tagged your ports or select ports manually if you haven't) then select those ports and click on Edit, then set Port status to Disabled then click on Save
      • Screenshot 2022-05-17 at 15.22.17.pngScreenshot 2022-05-17 at 15.22.34.png
    6. After a few minutes (For configuration to be up to date) Navigate to Switching > Monitor > Switch ports then filter for MR (in case you have previously tagged your ports or select ports manually if you haven't) then select those ports and click on Edit, then set Port status to Enabled then click on Save
      • Screenshot 2022-05-17 at 15.22.17.pngScreenshot 2022-05-17 at 15.22.41.png
    7. Navigate to Switching > Monitor > Switches then click on each master switch to change its IP address to the one desired using Static IP configuration (remember that all members of the same stack need to have the same static IP address)
      • Screenshot 2022-05-17 at 15.21.13.png
      • Screenshot 2022-05-17 at 15.21.35.png
    8. On your C9500 Core Stack, bounce your VLAN 3,100,200 interfaces. Then verify that the interfaces VLAN 3/100/200 came up with the correct IP address (e.g. 10.0.3.2 per this design)
      • 9500-01#configure terminal
        Enter configuration commands, one per line.  End with CNTL/Z.
        9500-01(config)#interface vlan 3
        9500-01(config-if)#shutdown
        9500-01(config-if)#no shutdown
        9500-01(config-if)#interface vlan 100
        9500-01(config-if)#shutdown
        9500-01(config-if)#no shutdown
        9500-01(config-if)#interface vlan 200
        9500-01(config-if)#shutdown
        9500-01(config-if)#no shutdown
        9500-01(config-if)#end
        9500-01#sh ip interface brief | in Vlan
        Vlan1                  unassigned      YES NVRAM  administratively down down
        Vlan3                  10.0.3.2        YES DHCP   up                    up
        Vlan100                10.0.100.2      YES DHCP   up                    up
        Vlan200                10.0.200.2      YES DHCP   up                    up
        9500-01#

    9. Navigate to Organization > Monitor > Overview then click on Devices tab to check the current IP addressing for your network devices:
      • Screenshot 2022-05-30 at 11.45.25.png
  61. Configure QoS in your Campus LAN; Quality of Service configuration needs to be consistent across the whole Campus LAN. Please refer to the above table as an example. (For the purpose of this CVD, Default traffic shaping rules will be used to mark traffic with DSCP values without setting any traffic limits. Please adjust traffic shaping rules based on your own requirements). To configure QoS, please follow these steps:
    1. Navigate to Wireless > Configure > Firewall & Traffic Shaping and choose the Acme Corp SSID from the above drop-down menu. Under Traffic Shaping rules, choose the per-client and per-SSID limits desired and select Shape traffic on this SSID then select Enable default traffic shaping rules. Click Save at the bottom of the page when you are done. Click Save at the bottom of the page when you are done.
      • Screenshot 2022-05-20 at 10.19.34.png
    2. Navigate to Wireless > Configure > Firewall & Traffic Shaping and choose the Acme BYOD SSID from the above drop-down menu. Under Traffic Shaping rules, choose the per-client and per-SSID limits desired and select Shape traffic on this SSID then select Enable default traffic shaping rules.
      • Screenshot 2022-05-20 at 10.19.34.png
    3. Navigate to Wireless > Configure > Firewall & Traffic Shaping and choose the Guest SSID from the above drop-down menu. Under Traffic Shaping rules, choose the per-client and per-SSID limits desired and select Shape traffic on this SSID then select Enable default traffic shaping rules. Click Save at the bottom of the page when you are done.
      • Screenshot 2022-05-20 at 10.21.18.png
    4. Navigate to Wireless > Configure > Firewall & Traffic Shaping and choose the IoT SSID from the above drop-down menu. Under Traffic Shaping rules, choose the per-client and per-SSID limits desired and select Shape traffic on this SSID then select Enable default traffic shaping rules. Click Save at the bottom of the page when you are done.
      • Screenshot 2022-05-20 at 10.19.34.png
    5. Navigate to Switching > Configure > Switch settings and under the Quality of Service menu configure the VLAN to DSCP mappings. Please click on Edit DSCP to CoS map to change settings per your requirements. Click Save at the bottom of the page when you are done. (Please note that the ports used in the below example are based on Cisco Webex traffic flow)
      • Screenshot 2022-05-30 at 11.52.16.png
      • Screenshot 2022-05-20 at 09.46.04.png
    6. Please ensure that your C9500 Core Stack is configured to trust incoming QoS. Here's a reference of the configuration needed to be applied:
      • 9500-01#configure terminal
        Enter configuration commands, one per line.  End with CNTL/Z.
        9500-01(config)#interface TwentyFiveGigE1/0/1
        9500-01(config-if)#auto qos trust dscp
        9500-01(config-if)#interface TwentyFiveGigE1/0/2
        9500-01(config-if)#auto qos trust dscp
        9500-01(config-if)#interface TwentyFiveGigE2/0/1
        9500-01(config-if)#auto qos trust dscp
        9500-01(config-if)#interface TwentyFiveGigE2/0/2
        9500-01(config-if)#auto qos trust dscp
        9500-01(config-if)#interface TwentyFiveGigE1/0/23
        9500-01(config-if)#auto qos trust dscp
        Warning: add service policy will cause inconsistency with port TwentyFiveGigE2/0/23 in ether channel 1.
        9500-01(config-if)#interface TwentyFiveGigE1/0/24
        9500-01(config-if)#auto qos trust dscp
        Warning: add service policy will cause inconsistency with port TwentyFiveGigE2/0/24 in ether channel 2.
        9500-01(config-if)#interface TwentyFiveGigE1/0/24
        9500-01(config-if)#auto qos trust dscp
        9500-01(config-if)#end
        9500-01#show auto qos
        TwentyFiveGigE1/0/1
        auto qos trust dscp


        TwentyFiveGigE1/0/2
        auto qos trust dscp


        TwentyFiveGigE1/0/23
        auto qos trust dscp


        TwentyFiveGigE1/0/24
        auto qos trust dscp


        TwentyFiveGigE2/0/1
        auto qos trust dscp


        TwentyFiveGigE2/0/2
        auto qos trust dscp


        TwentyFiveGigE2/0/23
        auto qos trust dscp


        TwentyFiveGigE2/0/24
        auto qos trust dscp


        9500-01#wr mem

    7. Navigate to Security & SD-WAN > Configure > SD-WAN & Traffic shaping and make sure your Uplink configuration matches your WAN speed. Then, under Uplink selection choose the settings that match your requirements (e.g. Load balancing). Under Traffic shaping rules, select Enable default traffic shaping rules then click on Add a new shaping rule to create the rules needed for your network. (for more information about Traffic shaping rules on MX appliances, please refer to the following article). Please see the following example:
      • Screenshot 2022-05-20 at 10.15.06.png
      • Screenshot 2022-05-20 at 10.59.10.png
      • Screenshot 2022-05-20 at 10.08.49.png
      • Screenshot 2022-05-30 at 12.02.03.png
  62. Enable OSPF Routing; Navigate to Switching > Configure > OSPF routing and then click on Enabled to enable OSPF. Add the details required and create an OSPF area for your Campus Network. Then, Click Save at the bottom of the page.
    • Screenshot 2022-05-30 at 12.33.15.png
    • Screenshot 2022-05-30 at 12.33.19.png
  63. Enable OSPF Routing on your Core Stack; Please use the following commands to add an OSPF instance and create OSPF neighbors:
    • 9500-01#configure terminal
      Enter configuration commands, one per line.  End with CNTL/Z.
      9500-01(config)#router ospf 1
      9500-01(config-router)#network 192.168.1.0 0.0.0.255 area 0
      9500-01(config-router)#network 192.168.2.0 0.0.0.255 area 0
      9500-01(config-router)#neighbor 192.168.1.1
      9500-01(config-router)#neighbor 192.168.2.1
      9500-01(config-router)#end
      9500-01#
      9500-01#show ip ospf neighbor


      Neighbor ID     Pri   State           Dead Time   Address         Interface
      192.168.2.2       1   FULL/DR         00:00:33    192.168.2.2     Vlan1922
      192.168.1.2       1   FULL/DR         00:00:38    192.168.1.2     Vlan1921
      9500-01#wr mem

  64. Create SVI Interfaces on your Access Switch Stacks; Navigate to Switching > Configure > Routing & DHCP and click on CREATE INTERFACE and start adding your interfaces but first start with the Transit VLANs. Once you have created an interface click on Save and add another at the bottom of the page to add more interfaces.
    • Screenshot 2022-05-30 at 12.29.28.png
    • Screenshot 2022-05-30 at 12.30.49.png
    • Screenshot 2022-05-30 at 12.30.56.png
    • Screenshot 2022-05-30 at 12.31.01.png
    • Screenshot 2022-05-30 at 12.45.21.png
    • Screenshot 2022-05-30 at 12.45.27.png
    • Screenshot 2022-05-30 at 12.45.33.png
    • Screenshot 2022-05-30 at 12.47.42.png
    • Screenshot 2022-05-30 at 12.47.48.png
    • Screenshot 2022-05-30 at 12.47.54.png
    • Screenshot 2022-05-30 at 12.48.23.png
    • Screenshot 2022-05-30 at 12.48.28.png
    • Screenshot 2022-05-30 at 12.48.32.png
    • Screenshot 2022-05-30 at 12.49.25.png
    • Screenshot 2022-05-30 at 12.49.30.png
    • Screenshot 2022-05-30 at 12.49.34.png
    • Screenshot 2022-05-30 at 12.50.06.png
    • Screenshot 2022-05-30 at 12.50.13.png
    • Screenshot 2022-05-30 at 12.50.19.png
    • Screenshot 2022-05-30 at 12.50.19.png
    • Screenshot 2022-05-30 at 12.50.45.png
    • Screenshot 2022-05-30 at 12.50.54.png
    • Screenshot 2022-05-30 at 12.51.00.png
    • Screenshot 2022-05-30 at 12.51.25.png
    • Screenshot 2022-05-30 at 12.51.32.png
    • Screenshot 2022-05-30 at 12.51.36.png
    • Screenshot 2022-05-30 at 12.52.30.png
    • Screenshot 2022-05-30 at 12.52.37.png
    • Please note that the Static Routes shown above are automatically created per stack and they reflect the default gateway settings that you have configured with the first SVI interface created which is in this case the Transit VLAN interface for each Stack
  65. Verify that your Core Stack is receiving OSPF routes from its neighbours:
    • 9500-01#show ip route
      Codes: L - local, C - connected, S - static, R - RIP, M - mobile, B - BGP
             D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area
             N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
             E1 - OSPF external type 1, E2 - OSPF external type 2, m - OMP
             n - NAT, Ni - NAT inside, No - NAT outside, Nd - NAT DIA
             i - IS-IS, su - IS-IS summary, L1 - IS-IS level-1, L2 - IS-IS level-2
             ia - IS-IS inter area, * - candidate default, U - per-user static route
             H - NHRP, G - NHRP registered, g - NHRP registration summary
             o - ODR, P - periodic downloaded static route, l - LISP
             a - application route
             + - replicated route, % - next hop override, p - overrides from PfR
             & - replicated local route overrides by connected


      Gateway of last resort is 10.0.200.1 to network 0.0.0.0


      S*    0.0.0.0/0 [254/0] via 10.0.200.1
                      [254/0] via 10.0.100.1
                      [254/0] via 10.0.3.1
            10.0.0.0/8 is variably subnetted, 12 subnets, 2 masks
      C        10.0.3.0/24 is directly connected, Vlan3
      L        10.0.3.2/32 is directly connected, Vlan3
      O        10.0.11.0/24 [110/2] via 192.168.1.2, 00:04:13, Vlan1921
      O        10.0.12.0/24 [110/2] via 192.168.2.2, 00:03:56, Vlan1922
      O        10.0.21.0/24 [110/2] via 192.168.1.2, 00:04:13, Vlan1921
      O        10.0.22.0/24 [110/2] via 192.168.2.2, 00:03:56, Vlan1922
      O        10.0.30.0/24 [110/2] via 192.168.1.2, 00:04:13, Vlan1921
      O        10.0.40.0/24 [110/2] via 192.168.2.2, 00:03:56, Vlan1922
      C        10.0.100.0/24 is directly connected, Vlan100
      L        10.0.100.2/32 is directly connected, Vlan100
      C        10.0.200.0/24 is directly connected, Vlan200
      L        10.0.200.2/32 is directly connected, Vlan200
            192.168.1.0/24 is variably subnetted, 2 subnets, 2 masks
      C        192.168.1.0/24 is directly connected, Vlan1921
      L        192.168.1.1/32 is directly connected, Vlan1921
            192.168.2.0/24 is variably subnetted, 2 subnets, 2 masks
      C        192.168.2.0/24 is directly connected, Vlan1922
      L        192.168.2.1/32 is directly connected, Vlan1922
            192.168.3.0/24 is variably subnetted, 2 subnets, 2 masks
      C        192.168.3.0/24 is directly connected, Vlan1923
      L        192.168.3.2/32 is directly connected, Vlan1923
      9500-01#
  66. And that concludes the configuration requirements for this design option. Please remember to always click Save at the bottom of the page once you have finished configuring each item on the Meraki Dashboard.
Testing & Verification
Firmware

The following table indicates the firmware versions used in this Campus LAN:

Device Firmware Version Notes
MX250 WAN Edge MX 16.16 GA
C9500 Core Stack
MS390 Access Stack MS 15.14 Beta
C9300 Access Stack MS 15.14 Beta
MR55 28.6.1 GA
C9166 (MR57) 28.30 Beta
Device Connectivity

MX WAN Edge

Upstream Connectivity

Screenshot 2022-05-18 at 11.32.01.png

Internet/Cloud Connectivity

Screenshot 2022-05-18 at 11.31.20.png

Screenshot 2022-05-18 at 11.31.25.png

Screenshot 2022-05-23 at 15.57.12.png

Downstream Connectivity

Screenshot 2022-05-30 at 16.12.47.png

Screenshot 2022-05-30 at 16.12.55.png

Screenshot 2022-05-30 at 16.13.01.png

Screenshot 2022-05-30 at 13.54.49.png

Screenshot 2022-05-30 at 13.54.57.png

Screenshot 2022-05-30 at 13.55.09.png

Screenshot 2022-05-30 at 13.55.01.png

Screenshot 2022-05-30 at 13.55.16.png



C9500 Core Stack

Upstream Connectivity

9500-01#ping 10.0.3.1
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 10.0.1.1, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 1/1/1 ms
9500-01#ping 192.168.3.1
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 192.168.3.1, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 1/1/1 ms
9500-01#

Internet Connectivity

9500-01#ping 8.8.8.8 source 192.168.3.2
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 8.8.8.8, timeout is 2 seconds:
Packet sent with a source address of 192.168.3.2
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 4/4/4 ms
9500-01#
9500-01#ping cisco.com source 192.168.3.2
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 72.163.4.185, timeout is 2 seconds:
Packet sent with a source address of 192.168.3.2
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 108/108/109 ms
9500-01#

Downstream Connectivity (Please note that the MS390 and Converted C9300 platforms will prioritize packet forwarding over ICMP echo replies so it's expected behavior that you might get some drops when you ping the management interface)

9500-01#ping 10.0.100.3
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 10.0.100.3, timeout is 2 seconds:
.!!!!
Success rate is 80 percent (4/5), round-trip min/avg/max = 2/2/3 ms
9500-01#ping 10.0.100.4
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 10.0.100.4, timeout is 2 seconds:
.!!!!
Success rate is 80 percent (4/5), round-trip min/avg/max = 2/2/4 ms
9500-01#ping 10.0.200.3
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 10.0.200.3, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 1/1/1 ms
9500-01#ping 10.0.200.4
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 10.0.200.4, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 1/1/1 ms
9500-01#

In case of connectivity issues, please check the following:

Item Expected Configuration/Status Verification Actual Configuration

C9500 Uplinks to MX Edge:

TwentyFiveGigE1/0/1

TwentyFiveGigE1/0/2

TwentyFiveGigE2/0/1

TwentyFiveGigE2/0/2

Trunk , VLAN 3

DAI Trusted

up/up







sh ip int brief

sh run int <interface>

sh spanning-tree int <interface>



!all uplinks!

switchport mode access

ip arp inspection trust

ip dhcp snooping trust

end

!

STP interface Configuration:

TwentyFiveGigE1/0/1

TwentyFiveGigE1/0/2

TwentyFiveGigE2/0/1

TwentyFiveGigE2/0/2

TwentyFiveGigE1/0/23

TwentyFiveGigE1/0/24

TwentyFiveGigE2/0/23

TwentyFiveGigE2/0/24

STP Configuration

N/A

N/A

N/A

N/A

Root Guard + UDLD aggressive

Root Guard + UDLD aggressive

Root Guard + UDLD aggressive

Root Guard + UDLD aggressive

sh run int <interface>



!where applicable!

udld port aggressive

spanning-tree guard root

end

!

STP interface Status:

TwentyFiveGigE1/0/1

TwentyFiveGigE1/0/2

TwentyFiveGigE2/0/1

TwentyFiveGigE2/0/2

Po1

Po2



STP status:

FWD

BLK

FWD

BLK

FWD

FWD

sh spanning-tree int <interface>



!only PHY interfaces!

spanning-tree mode mst

spanning-tree extend system-id

!

spanning-tree mst configuration

name region1

revision 1

!

spanning-tree mst 0 priority 4096

!

Default Route



DHCP, VLAN 1923



sh int vlan1923

sh ip route



!

interface Vlan1923

ip address 192.168.3.2 255.255.255.0

end

!

sh ip route | in /0

S*    0.0.0.0/0 [254/0] via 192.168.3.1

MX WAN Edge Downlinks:

Port 19

Port 20

Trunk , VLAN 3



Navigate to Security & SD-WAN > Configure > Addressing & VLANs



Screenshot 2022-05-30 at 16.43.42.png

C9500 Downlinks:







TwentyFiveGigE1/0/23

TwentyFiveGigE1/0/24

TwentyFiveGigE2/0/23

TwentyFiveGigE2/0/24

Trunk

DAI Trusted

SGT 2 Trusted

No CTS enforcement

VLAN 100 / 100, 1921

VLAN 200 / 200, 1922

VLN 100 / 100, 1921

VLAN 200 / 200, 1922

sh run int <interface>



!PHY 23!

switchport trunk allowed vlan 100,1921

switchport mode trunk

ip arp inspection trust

!PHY 24!

switchport trunk allowed vlan 200,1922

switchport mode trunk

ip arp inspection trust

!BOTH!

cts manual

  policy static sgt 2 trusted

no cts role-based enforcement

!

end

C9500 Ether-Channels:

TwentyFiveGigE1/0/23

TwentyFiveGigE1/0/24

TwentyFiveGigE2/0/23

TwentyFiveGigE2/0/24

Po1

Po2



Channel-Group 1

Channel-Group 2

Channel-Group 1

Channel-Group 2

up/up

up/up



sh run int <interface>

sh etherchannel <#> sum

sh ip int brief | in Po

!PHY 23!

channel-group 1 mode active

!PHY 24!

channel-group 2 mode active

!

end



MS390 Access Stack

Upstream Connectivity

Please note that the MS390 and C9300 switches use a separate routing table for management traffic than the configured SVIs. As such, you won't be able to verify connectivity using ping tool from the switch page to its default gateway (e.g. 10.0.100.1) since we have not created a L3 interface for the Management VLAN (e.g. VLAN 100). Upstream connectivity verification should be done using one of the SVI interfaces configured on the stack/switch to the upstream Transit VLAN configured on the Edge MX appliance. (e.g. VLAN  1923)

Screenshot 2022-05-30 at 17.09.24.png



Internet/Cloud Connectivity

Screenshot 2022-05-30 at 18.04.12.png

Downstream Connectivity

Screenshot 2022-05-31 at 18.29.07.png

Screenshot 2022-05-31 at 18.21.44.png

C9300 Access Stack

Upstream Connectivity

Screenshot 2022-05-30 at 17.46.03.png

Internet/Cloud Connectivity

Screenshot 2022-05-30 at 18.04.18.png

Screenshot 2022-05-30 at 17.49.46.png



Downstream Connectivity

Screenshot 2022-06-01 at 12.15.21.png



MR Access Points

Downstream Connectivity

Client Connectivity

Screenshot 2022-05-31 at 18.44.08.png

Screenshot 2022-05-31 at 18.45.32.png

Screenshot 2022-06-01 at 12.54.22.png



802.1x Authentication

802.1x authentication has been tested on both Corp and BYOD SSIDs. Dashboard will be checked to verify the correct IP address assignment and username. Packet captures will also be checked to verify the correct SGT assignment. In the final section, ISE logs will show the authentication status and authorisation policy applied.

Client SSID / Port Username VLAN SGT

iKarem

f4:5c:89:b9:35:09

10.0.22.2

Acme BYOD



byod1



22



20



iPhone 11

12:99:2a:2d:d5:d6

10.0.30.2

Buest



N/A



30

30



Macbook Pro

8c:ae:4c:dd:15:19

10.0.11.3

MS390-02

Port 4

corp1



10



10





Screenshot 2022-06-01 at 13.41.23.png

Screenshot 2022-06-01 at 13.42.49.png

Screenshot 2022-06-01 at 13.44.13.png

Please note that the configuration of the Cisco ISE is out of scope of this CVD. Please refer to Cisco ISE administration guide for details on configuring policy sets on Cisco ISE. Also, please refer to this article for more information on configuring Cisco ISE with Cisco Meraki Devices



VLAN Assignment

This section will validate that VLANs are assigned correctly based on the VLAN tag. The following client was used to test the connectivity in the designated VLAN:

  Acme Corp Acme BYOD
AP AP2_Zone1 AP3_Zone2 AP2_Zone1 AP3_Zone2
Expected VLAN 11 12 21 22
Testing Client 12:34:5C:8C:16:0 12:34:5C:8C:16:0 46:F2:0C:4B:E7:FD 46:F2:0C:4B:E7:FD
Assigned IP Address / VLAN 10.0.11.3 / VLAN 11 10.0.12.3 / VLAN 12 10.0.21.3 / VLAN 21 10.0.22.2 / VLAN 22





STP Convergence

STP convergence will be tested using several methods as outlined below. Please see the following table for steady-state of the Campus LAN before testing:

    Bridge ID STP Status
C9500-01 Master 4096:b0c5.3c60.fba0 Screenshot 2022-05-19 at 14.58.07.png
C9500-02 Member 4096.40b5.c111.01e0
MS390-01 Master 61440:2c3f.0b04.7e80

STP ROOT


b0:c5:3c:60:fb:a0 (priority 4096)
Blocking ports
None
MS390-02 Member 61440:2c3f.0b0f.ec00
C9300-01 Master 61440:a4b4.395f.2a8b

STP ROOT


b0:c5:3c:60:fb:a0 (priority 4096)
Blocking ports
None
C9300-02 Member 61440:4ce1.75b0.ba00
Client Device   IP Address: 10.0.20.4

STP Before Test'.png

Introducing loops (Access to Core)

STP Test 1'.png

A loop was introduced by adding a link between C9300-01 /NM Port 2 and C9500 Core Stack / Port TwentyFiveGigE1/0/22 (Please note that for the purposes of this test, the interface has been unshut and configured as a Trunk port with Native VLAN 1 with STP guards on that interface)

9500-01#show ip interface brief | in TwentyFiveGigE1/0/22
TwentyFiveGigE1/0/22   unassigned      YES unset  up                    up
ow9500-01#show run interface TwentyFiveGigE1/0/22
Building configuration...


Current configuration : 132 bytes
!
interface TwentyFiveGigE1/0/22
switchport trunk native vlan 200
switchport trunk allowed vlan 200,1922
switchport mode trunk
spanning-tree guard root
end


9500-01#
9500-01#show spanning-tree


MST0
  Spanning tree enabled protocol mstp
  Root ID    Priority    4096
             Address     b0c5.3c60.fba0
             This bridge is the root
             Hello Time   2 sec  Max Age 20 sec  Forward Delay 15 sec


  Bridge ID  Priority    4096   (priority 4096 sys-id-ext 0)
             Address     b0c5.3c60.fba0
             Hello Time   2 sec  Max Age 20 sec  Forward Delay 15 sec


Interface           Role Sts Cost      Prio.Nbr Type
------------------- ---- --- --------- -------- --------------------------------
Twe1/0/1            Desg FWD 2000      128.193  P2p
Twe1/0/2            Desg FWD 2000      128.194  P2p
Twe1/0/22           Desg FWD 2000      128.214  P2p
Twe2/0/1            Back BLK 2000      128.385  P2p
Twe2/0/2            Back BLK 2000      128.386  P2p
Po1                 Desg FWD 10000     128.2089 P2p
Po2                 Desg FWD 1000      128.2090 P2p

Interface Twe1/0/22 is in STP FWD state (As expected since this is the Root bridge)

Screenshot 2022-06-01 at 17.21.23.png

Interface 26 is in STP BLK state (As expected since the Ether-channel is in FWD state)

Screenshot 2022-05-19 at 14.58.33.png

No impact on traffic flow for wireless and wired clients



Introducing Loops (Access Layer, with STP Guard: Loop Guard)

STP Test 2'.png

For the purposes of this test and in addition to the previous loop connections, the following ports were connected:

MS390-01 / Port 11 < - > C9300-01 / Port 11

Please note that the port configuration for both ports was changed to assign a common VLAN (in this case VLAN 99). Please see the following configuration that has been applied to both ports:

Screenshot 2022-06-01 at 17.19.13.png

Screenshot 2022-06-01 at 17.19.31.png

Screenshot 2022-06-01 at 17.35.16.png

Port 11 on MS390-01 in STP BLK state (Bridge ID: 61440:2c3f.0b04.7e80)

Screenshot 2022-06-01 at 17.35.38.png

Port 11 on C9300-01 in STP FWD state (Bridge ID: 61440:a4b4.395f.2a8b)

Screenshot 2022-06-01 at 17.45.40.png

Screenshot 2022-06-01 at 17.45.57.png

Packet capture on MS390-01 / Port 11 shows that Bridge ID: 61440:4ce1.75b0.ba00 is relaying the Root bridge BPDUs with Root Bridge ID: 4096:b0c5.3c60.fba0



Introducing Loops (Access Layer, without STP Guard)

STP Test 3'.png

For the purposes of this test and in addition to the previous loop connections, the following ports were connected:

MS390-02 / Port 12 < - > C9300-02 / Port 12

Please note that the port configuration for both ports was changed to assign a common VLAN (in this case VLAN 99). Please see the following configuration that has been applied to both ports:

Screenshot 2022-06-01 at 18.01.20.png

Screenshot 2022-06-01 at 17.19.31.png

Screenshot 2022-05-19 at 15.46.29.png

MS390-02 / Port 12 is in STP BLK state (Bridge ID: 61440:2c3f.0b0f.ec00)

Screenshot 2022-05-19 at 15.46.43.png

C9300-02 / Port 12 is in STP FWD state (Bridge ID: 61440:4ce1.75b0.ba00)



Introducing Loops (Core Layer)

STP Test 4'.png

For the purpose of this test and in addition to the previous loop connections, the following ports were connected:

Port Twe1/0/10 to port Twe2/0/10 on the C9500 Core switches.

9500-01#show run interface Twe1/0/10
Building configuration...


Current configuration : 132 bytes
!
interface TwentyFiveGigE1/0/10
switchport trunk native vlan 3
switchport trunk allowed vlan 3,100,200,1921,1922,1923
switchport mode trunk
spanning-tree guard loop
end


9500-01#show run interface Twe2/0/10
Building configuration...


Current configuration : 132 bytes
!
interface TwentyFiveGigE2/0/10
switchport trunk native vlan 3
switchport trunk allowed vlan 3,100,200,1921,1922,1923
switchport mode trunk
spanning-tree guard loop
end


9500-01#
9500-01#show ip interface brief | in TwentyFiveGigE1/0/10
TwentyFiveGigE1/0/10   unassigned      YES unset  up                    up
9500-01#
9500-01#show ip interface brief | in TwentyFiveGigE2/0/10
TwentyFiveGigE2/0/10   unassigned      YES unset  up                    up
9500-01#show spanning-tree


MST0
  Spanning tree enabled protocol mstp
  Root ID    Priority    4096
             Address     b0c5.3c60.fba0
             This bridge is the root
             Hello Time   2 sec  Max Age 20 sec  Forward Delay 15 sec


  Bridge ID  Priority    4096   (priority 4096 sys-id-ext 0)
             Address     b0c5.3c60.fba0
             Hello Time   2 sec  Max Age 20 sec  Forward Delay 15 sec


Interface           Role Sts Cost      Prio.Nbr Type
------------------- ---- --- --------- -------- --------------------------------
Twe1/0/1            Desg FWD 2000      128.193  P2p
Twe1/0/2            Desg FWD 2000      128.194  P2p
Twe1/0/10           Desg FWD 2000      128.202  P2p
Twe1/0/22           Desg FWD 2000      128.214  P2p
Twe2/0/1            Back BLK 2000      128.385  P2p
Twe2/0/2            Back BLK 2000      128.386  P2p
Twe2/0/10           Back BLK 2000      128.394  P2p
Po1                 Desg FWD 10000     128.2089 P2p
Po2                 Desg FWD 1000      128.2090 P2p


9500-01#show spanning-tree interface Twe2/0/10 detail
Port 394 (TwentyFiveGigE2/0/10) of MST0 is backup blocking
   Port path cost 2000, Port priority 128, Port Identifier 128.394.
   Designated root has priority 4096, address b0c5.3c60.fba0
   Designated bridge has priority 4096, address b0c5.3c60.fba0
   Designated port id is 128.202, designated path cost 0
   Timers: message age 4, forward delay 0, hold 0
   Number of transitions to forwarding state: 0
   Link type is point-to-point by default, Internal
   PVST Simulation is enabled by default
   Loop guard is enabled on the port
   BPDU: sent 2, received 66
9500-01#



Introducing Rogue Bridge in VLAN 200

STP Test 5'.png

For the purpose of this test and in addition to the previous loop connections, the Bridge priority on C9300 Stack will be reduced to 4096 (likely root) and increasing the Bridge priority on C9500 to 8192.

  • Downlinks on C9500 are configured with STP Root Guard
  • Access Layer Links (Stack to Stack) are configured with STP Loop Guard + UDLD
9500-01(config)#spanning-tree mst 0 priority 8192
9500-01(config)#end
9500-01#show spanning-tree


MST0
  Spanning tree enabled protocol mstp
  Root ID    Priority    8192
             Address     b0c5.3c60.fba0
             This bridge is the root
             Hello Time   2 sec  Max Age 20 sec  Forward Delay 15 sec


  Bridge ID  Priority    8192   (priority 8192 sys-id-ext 0)
             Address     b0c5.3c60.fba0
             Hello Time   2 sec  Max Age 20 sec  Forward Delay 15 sec


Interface           Role Sts Cost      Prio.Nbr Type
------------------- ---- --- --------- -------- --------------------------------
Twe1/0/1            Desg FWD 2000      128.193  P2p
Twe1/0/2            Desg FWD 2000      128.194  P2p
Twe1/0/10           Desg FWD 2000      128.202  P2p
Twe1/0/22           Desg BKN*2000      128.214  P2p *ROOT_Inc
Twe2/0/1            Back BLK 2000      128.385  P2p
Twe2/0/2            Back BLK 2000      128.386  P2p
Twe2/0/10           Back BLK 2000      128.394  P2p
Po1                 Desg BKN*10000     128.2089 P2p *ROOT_Inc
Po2                 Desg BKN*1000      128.2090 P2p *ROOT_Inc




9500-01#

Screenshot 2022-05-19 at 17.21.48.png

9500-01#show spanning-tree


MST0
  Spanning tree enabled protocol mstp
  Root ID    Priority    8192
             Address     b0c5.3c60.fba0
             This bridge is the root
             Hello Time   2 sec  Max Age 20 sec  Forward Delay 15 sec


  Bridge ID  Priority    8192   (priority 8192 sys-id-ext 0)
             Address     b0c5.3c60.fba0
             Hello Time   2 sec  Max Age 20 sec  Forward Delay 15 sec


Interface           Role Sts Cost      Prio.Nbr Type
------------------- ---- --- --------- -------- --------------------------------
9500-01#sh spanning-tree


MST0
  Spanning tree enabled protocol mstp
  Root ID    Priority    8192
             Address     b0c5.3c60.fba0
             This bridge is the root
             Hello Time   2 sec  Max Age 20 sec  Forward Delay 15 sec


  Bridge ID  Priority    8192   (priority 8192 sys-id-ext 0)
             Address     b0c5.3c60.fba0
             Hello Time   2 sec  Max Age 20 sec  Forward Delay 15 sec


Interface           Role Sts Cost      Prio.Nbr Type
------------------- ---- --- --------- -------- --------------------------------
Twe1/0/1            Desg FWD 2000      128.193  P2p
Twe1/0/2            Desg FWD 2000      128.194  P2p
Twe1/0/10           Desg FWD 2000      128.202  P2p
Twe1/0/22           Desg BKN*2000      128.214  P2p *ROOT_Inc
Twe2/0/1            Back BLK 2000      128.385  P2p
Twe2/0/2            Back BLK 2000      128.386  P2p
Twe2/0/10           Back BLK 2000      128.394  P2p
Po1                 Desg BKN*10000     128.2089 P2p *ROOT_Inc
Po2                 Desg BKN*1000      128.2090 P2p *ROOT_Inc




9500-01#
9500-01#show spanning-tree interface Po1 detail
Port 2089 (Port-channel1) of MST0 is broken  (Root Inconsistent)
   Port path cost 10000, Port priority 128, Port Identifier 128.2089.
   Designated root has priority 8192, address b0c5.3c60.fba0
   Designated bridge has priority 8192, address b0c5.3c60.fba0
   Designated port id is 128.2089, designated path cost 0
   Timers: message age 5, forward delay 0, hold 0
   Number of transitions to forwarding state: 1
   Link type is point-to-point by default, Internal
   PVST Simulation is enabled by default
   Root guard is enabled on the port
   BPDU: sent 15929, received 1230

9500-01#show spanning-tree interface Po2 detail
Port 2090 (Port-channel2) of MST0 is broken  (Root Inconsistent)
   Port path cost 1000, Port priority 128, Port Identifier 128.2090.
   Designated root has priority 8192, address b0c5.3c60.fba0
   Designated bridge has priority 8192, address b0c5.3c60.fba0
   Designated port id is 128.2090, designated path cost 0
   Timers: message age 5, forward delay 0, hold 0
   Number of transitions to forwarding state: 1
   Link type is point-to-point by default, Internal
   PVST Simulation is enabled by default
   Root guard is enabled on the port
   BPDU: sent 15849, received 1330
9500-01#

C9500 Core Stack is still the Root Bridge (i.e. The root Bridge placement has been enforced).

Downlinks to C9300 and MS390 stacks are in STP Root Inconsistent State which caused all access switches to go offline on Dashboard.

Please note that this caused client disruption and no traffic was passing since the C9500 Core Stack put all downlink ports into Root inconsistent state.

To recover access switches, you will need to change the STP priority on the C9500 Core stack to 0 which ensures that your core stack becomes the root of the CIST.  Alternatively, you can configure STP root Guard on the MS390 ports facing the C9300 and thus the MS390s will come back online.

The reason why all access switches went online on dashboard is that the C9300 was the root for the access layer (priority 4096) and thus the MS390s were passing traffic to Dashboard via the C9300s. Configuring STP Root Guard on the ports facing C9300 recovered the MS390s and client connectivity.

On the other hand, changing the STP priority on the C9500 core stack pulled back the Root to the core layer and recovered all switches on the access layer.

It is considered best practices to avoid assigning STP priority on your network to 0 on any device which gives you room for adding devices in the future and for maintenance purposes. In this instance, configuring STP priority 0 allowed us to recover the network which wouldn't have been possible if priority 0 was configured already on the network. Having said that, please remember to revert the STP priority on your C9500 Core Stack after recovering the network. (Default value 4096)

9500-01(config)#spanning-tree mst 0 priority 0
9500-01(config)#
9500-01(config)#end
9500-01#show spanning-tree


MST0
  Spanning tree enabled protocol mstp
  Root ID    Priority    0
             Address     b0c5.3c60.fba0
             This bridge is the root
             Hello Time   2 sec  Max Age 20 sec  Forward Delay 15 sec


  Bridge ID  Priority    0      (priority 0 sys-id-ext 0)
             Address     b0c5.3c60.fba0
             Hello Time   2 sec  Max Age 20 sec  Forward Delay 15 sec


Interface           Role Sts Cost      Prio.Nbr Type
------------------- ---- --- --------- -------- --------------------------------
Twe1/0/1            Desg FWD 2000      128.193  P2p
Twe1/0/2            Desg FWD 2000      128.194  P2p
Twe1/0/10           Desg FWD 2000      128.202  P2p
Twe1/0/22           Desg FWD 2000      128.214  P2p
Twe2/0/1            Back BLK 2000      128.385  P2p
Twe2/0/2            Back BLK 2000      128.386  P2p
Twe2/0/10           Back BLK 2000      128.394  P2p
Po1                 Desg FWD 10000     128.2089 P2p
Po2                 Desg FWD 1000      128.2090 P2p




9500-01#ping 10.0.200.3
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 10.0.200.3, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 2/2/3 ms
9500-01#ping 10.0.100.3
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 10.0.100.3, timeout is 2 seconds:
.!!!!
Success rate is 80 percent (4/5), round-trip min/avg/max = 2/2/3 ms
9500-01#



Reverting all configurations back to its original state:

  1. Disconnect and shutdown interface TwentyFiveGigE1/0/22
  2. Disconnect port 11 on MS390-01 and C9300-01 and remove Loop Guard and UDLD
  3. Disconnect port 12 on MS390-02 and C9300-02
  4. Disconnect and revert port TwentyFiveGigE1/0/10 and TwentyFiveGigE20/10 back to access with VLAN 1 and shutdown
  5. Change MST priority on C9300 stack to 61440
  6. Change MST priority on C9500 Core Stack to 4096



High Availability and Failover

Here's the steady-state physical architecture for reference:

STP Before Test'.png

MX WAN Edge Failover

MX HA test.png

Screenshot 2022-05-23 at 19.11.45.png

clipboard_e90e5f68a4688f3dce3340d11668b4480.png.  Screenshot 2022-06-06 at 14.15.34.png

Client traffic was not disrupted during failover event for both Wireless and Wired clients.



MX HA test 2.png



Screenshot 2022-05-23 at 19.11.45.png

Screenshot 2022-06-06 at 14.41.14.png

Client traffic disrupted for about 1-3 secs

C9500 Core Stack Loss of Uplink

HA Test 1.png

For the purpose of this test, ports TwentyFiveGigE1/0/1 and TwentyFiveGigE1/0/2 will be disconnected.

9500-01#show ip interface brief
TwentyFiveGigE1/0/1    unassigned      YES unset  down                  down
TwentyFiveGigE1/0/2    unassigned      YES unset  down                  down
TwentyFiveGigE2/0/1    unassigned      YES unset  up                    up
TwentyFiveGigE2/0/2    unassigned      YES unset  up                    up
9500-01#show switch
Switch/Stack Mac Address : b0c5.3c60.fba0 - Local Mac Address
Mac persistency wait time: Indefinite
                                             H/W   Current
Switch#   Role    Mac Address     Priority Version  State
-------------------------------------------------------------------------------------
*1       Active   b0c5.3c60.fba0     5      V02     Ready
2       Standby  40b5.c111.01e0     1      V02     Ready






9500-01#

Screenshot 2022-06-06 at 15.55.35.png

Wireless client traffic flow disrupted for about 30 secs



C9300 Stack Loss of Uplink

HA Test 2.png

For the purpose of this test, NM Port 1 on C9300-01 (Master switch) will be disconnected.


Wireless client traffic flow disrupted for about 1 sec



MS390 Stack Loss of Uplink

HA Test 3.png

For the purpose of this test, port 1 on MS390-01 (Master switch) will be disconnected.

Screenshot 2022-05-19 at 18.41.37.png

Wireless client traffic to the internet disrupted for about 2 secs

Screenshot 2022-05-19 at 18.41.46.png

Wireless client traffic on Campus LAN disrupted for about 1 sec



QoS

For the purpose of this test, packet capture will be taken between two clients running a Webex session. Packet capture will be taken on the Edge (i.e. MR wireless and wired interfaces) then on the Access (i.e. the MS390 or C9300 uplink port) then on the MX WAN Downlink and finally on the MX WAN Uplink. The table below shows the testing components and the expected QoS behavior:

Client



Application



Access Point

Expected QoS

Access Switch Uplink Port

Expected QoS

MX Appliance  Uplink Port

Expected QoS

Client #1 (10.0.12.4)

iPhone 11 (12:34:5c:8c:16:04)

Webex (UDP 9000) AP3_Zone2/ AF41 / DSCP 34 MS390-01 (Port 1) / AF41 / DSCP 34 AF41 / DSCP 34
Youtube AP3_Zone2 / AF21 / DSCP 18 MS390-01 (Port 1) / AF21 / DSCP 18 AF21 / DSCP 18

Client #2 (10.0.21.2)

Macbook Pro (3c:22:fb:30:da:69)

Webex (UDP 9000) AP2_Zone1 / AF41 / DSCP 34 C9300-01 (NM Port 1) / AF41 / DSCP 34 AF41 / DSCP 34
Dropbox AP2_Zone1 / AF0 / DSCP 0 C9300-01 (NM Port 1) / AF0 / DSCP 0 AF0 / DSCP 0



Access Point Wireless Port pcaps

Client #1

Screenshot 2022-05-20 at 12.29.58.png

Screenshot 2022-05-20 at 12.38.25.png

Client #2

Screenshot 2022-05-20 at 13.02.04.png

Screenshot 2022-05-20 at 12.54.06.png

Access Point Wired Port pcaps

Client #1

Screenshot 2022-06-08 at 11.38.55.png

Screenshot 2022-06-08 at 11.37.30.png



Client #2

Screenshot 2022-06-08 at 11.55.35.png

Screenshot 2022-06-08 at 11.56.20.png

Access Switch Uplink pcaps

Client #1

Screenshot 2022-06-08 at 12.04.16.png

Screenshot 2022-06-08 at 12.03.26.png

Client #2

Screenshot 2022-06-08 at 12.07.17.png

Screenshot 2022-06-08 at 12.08.14.png



MX appliance Downlink pcaps

Client #1

Screenshot 2022-06-08 at 12.57.55.png

Screenshot 2022-06-08 at 12.57.15.png

Client #2

Screenshot 2022-06-08 at 12.58.45.png

Screenshot 2022-06-08 at 12.59.00.png



Layer 3 Roaming with Concentrator

The previous design which extends the Layer 3 domain to the Access Layer offered several benefits but one of the drawbacks was that VLANs cannot span between different stacks and therefore roaming is restricted within a single zone/closet. As such, to enable Layer 3 roaming in this Campus network the SSID needs to be tunnelled to a Meraki MX operating as a concentrator. Please see the below diagram for the logical architecture of this design option:

Layer 3 Roaming (2).png

The design will not change any of the elements previously configured except that the Acme Corp SSID will be configured in Layer 3 Roaming with Concentrator mode which requires having a Meraki MX Appliance configured as a concentrator. Subsequently, VLANs 11 and 12 will not be required anymore and the SVI for the new Corp VLAN will move to the WAN Edge MX. The WAN Edge MX in this case needs to provide DHCP services to roaming clients.

Please note that the MX concentrator in the above diagram was plugged directly into the MX WAN Edge appliance on port 3. Alternatively, this could have been plugged on the C9500 Core Stack which could be also beneficial should you wish to use warm-spare concentrators. In this case please make sure that the switchports where these concentrator(s) are plugged on the C9500 Core Stack are configured as trunk ports and that the Roaming VLAN is allowed. For more information on MX concentrator sizing, please refer to this article.

Please note that though it is possible to use an MX appliance in routed mode to concentrate the SSID, it will not be possible in the case of this design. The reason is that the AutoVPN tunnel will fail to establish as it terminates on the MX uplink interface (on the WAN side, not the LAN side).

Special Considerations for this design option:

  • APs will create a Layer 2 AutoVPN tunnel to the MX Concentrator using their management IP address
  • Radius requests from the Acme Corp SSID will have the NAS ID referring to the AP's management IP address where the client is attached however the device IP in the request will refer to the uplink IP address of the MX concentrator (e.g. 10.0.3.4 in this case)
  • The Radius server (in our case Cisco ISE) will require an IP route to the MX concentrator's uplink IP address (e.g. 10.0.3.4)
  • The Radius server will also need to be configured with the concentrator as a network device since the Radius requests will have it's IP address as the device IP address (Otherwise testing 802.1x auth failed)
  • If the Radius server is reachable from the Campus via VPN tunnel (e.g. AutoVPN) then the Concentrator's uplink IP address/network will need to be advertised via the VPN as well

The following steps will outline the configuration changes to enable Layer 3 Roaming in this Campus LAN:

  1. Please ensure that you have an additional MX appliance in your dashboard and the appropriate license(s) claimed
  2. Add the appliance(s) to a new network (e.g. Roaming)
  3. Navigate to your Roaming network
  4. Navigate to Security & SD-WAN > Configure > Addressing & VLANs
  5. Select Passthrough or VPN Concentrator and click Save at the bottom of the page
    • Screenshot 2022-06-09 at 11.53.12.png
  6. Navigate to your Campus Network
  7. Navigate to Security & SD-WAN > Addressing & VLANs and create a new VLAN for the Roaming SSID (e.g. VLAN 10) 5 VLANs new UI.png
  8. Navigate further down the page to the Per-port VLAN settings and configure the port connecting the MX Concentrator (e.g. Port 3 in this design) with a Native VLAN (e.g. VLAN 3) and allow both the native VLAN and the Roaming SSI VLAN that you have just created in the above step
    • Screenshot 2022-06-09 at 12.01.16.png
  9. Click Save at the bottom of the page
  10. Plug your MX Concentrator and connect it to the designated port (Port #3) on the WAN Edge MX. Please note that the MX concentrator needs to be connected ONLY via a single uplink (No other uplinks or LAN ports
  11. Once the MX Concentrator comes online on dashboard you can proceed to the next step (Waiting for the concentrator to come online will allow you to test the tunnel connectivity from the APs to the Concentrator)
    • Screenshot 2022-06-09 at 12.06.28.png
  12. Navigate to Wireless > Configure > Access control and from the top drop-down menu select the Acme Corp SSID
  13. Navigate further down the page and under the Client IP assignment menu, select the Layer 3 with Concentrator option then choose VLAN 10 as the terminating VLAN for this SSID. Click Save at the bottom of the page.
    • Screenshot 2022-06-09 at 12.07.35.png
    • Screenshot 2022-06-09 at 12.07.45.png
  14. To test the Tunnel connectivity, click on Test Connectivity
    • Screenshot 2022-06-09 at 12.07.56.png
    • The test above will check the IP connectivity between the APs with the Acme Corp SSID (AP's uplink IP address) and the MX concentrator (MX's uplink IP address) and return back how many APs passed the test (valid IP route) and how many failed (due to IP routing issues)
  15. Navigate to Security & SD-WAN > Configure > Site-to-site VPN and enable the upstream network of the MX Concentrator in AutoVPN (e.g. VLAN 3 in our case)
    • Screenshot 2022-06-09 at 12.10.49.png
    • As explained earlier, this step is essential for the Cisco ISE server to accept Access-Requests from the MX concentrator
  16. After you have configured the appropriate routing on the Radius server side to allow it to communicate with VLAN 3, you can proceed with testing IP connectivity between the MX concentrator and the Radius Server
    • Ping 172.31.16.32.png
    • Please note that you won't be able to ping unless the Upstream network of the MX Concentrator has been enabled in AutoVPN and that the Radius Server has an IP route back to the Campus LAN. Please check the following example for this implementation of Cisco ISE in AWS where a route has been added on the VPC where the ISE server resides
    • Screenshot 2022-06-09 at 13.54.36.png
  17. After you have added the MX concentrator on your Radius server as a network device, you can test using a client attached to the Acme Corp SSID
    • Screenshot 2022-06-09 at 13.51.05.png



Testing and Verification:

 The following client was used for testing and verification:

Device  Mac address IP address
iPhone 12:34:5c:8c:16:04 10.0.10.2



Device Connectivity

Screenshot 2022-06-09 at 13.19.46.png



As seen above, the Client successfully associated with the Acme Corp SSID and acquired an IP address in VLAN 10 (10.0.10.2)

Radius Authentication

Screenshot 2022-06-09 at 11.17.50.png

Screenshot 2022-06-09 at 11.18.12.png

As seen above from the Cisco ISE live logs, 802.1x authentication was successful and the client was permitted on the network. Please note the Device IP Address field which shows 10.0.3.4 (MX Concentrator uplink IP address in this case)



Layer 3 Wireless Roaming

Screenshot 2022-06-09 at 10.16.28.png

IMG_8600.PNG IMG_8601.PNG  IMG_8603.PNG IMG_8602.PNG

IMG_8588.PNG  IMG_8589.PNG

Roaming back and forth between APs caused a brief packet loss of one packet

  • Was this article helpful?
